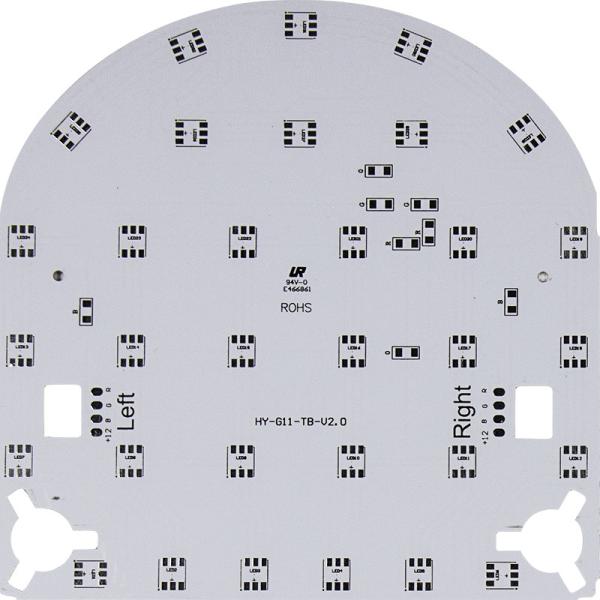

LED Bulb UL CE ROHS PCB Aluminium Board Customized Size Thinkness
LED Bulb UL CE ROHS PCB Aluminium Board Customized Size Thinkness
LED Bulb UL CE ROHS PCB Aluminium Board Customized Size Thinkness
LED Bulb UL CE ROHS PCB Aluminium Board Customized Size Thinkness
Specifications
Brand Name :
Yizhuo
Model Number :
mcpcb 08
Certification :
UL,CE,ROHS
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
120000 sq.m/per month
Delivery Time :
10-12 work days
Packaging Details :
Vacuum Package
Layer :
1-2 Layers
Testing :
fixturer testing jig/flying testing
certificate :
ISO9001:2008,ROHS,UL
Board Size :
can be customized
Silkscreen :
White, Yellow, Black
Testing Service :
Fly-probe,100% AOI testing, 100% ET testing,
Description

LED Bulb UL CE ROHS PCB Aluminium Board Customized Size Thinkness

LED bulb Aluminum PCB Printed Circuit Board Customized size thinkness

Aluminum PCB, or called metal core PCB and MCPCB, basically the Aluminum PCB is the most common metal used and the most popular type of metal core PCB, it uses a base metal material aluminum as the heat spreader portion of the printed circuit boards. Aluminum PCB has good thermal conductivity, electrical insulation and mechanical processing properties, metal core PCB is the most excellent and cheap cooling solutions.

The main difference between metal core PCB and conventional FR4 PCB is the thermal conductivity dielectric material and metal material backed, MCPCB are used instead of FR4 PCB because of their ability to efficiently dissipate heat away from the components, this is achieved by using a thermally conductive dielectric layer.

Basically LEDs are the largest users of these products, the other application areas for this technology include power converter, high current application, power circuit boards, automotive, RF application etc, they all take advantage of the benefits of this construction to make a quick and effective transfer of the heat produced.

PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing


LED Bulb UL CE ROHS PCB Aluminium Board Customized Size Thinkness


FAQ:

Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.

Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.

Q3: How about the Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
