Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use
Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use
Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use
Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use
Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use
Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use
Specifications
Brand Name :
TL
Model Number :
TL-SW08A/B
Certification :
CE,ROSH,UL
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000m/day
Delivery Time :
7-15 workdays
Packaging Details :
Carton
Material :
silicon
Standard length :
5 meters(16.4ft)/10m(32.8ft)
Beam angle :
150°
Input voltage :
12V/24V
Power :
14w/m
Color :
white/red/green/blue/yellow /pink/purple
Waterproof :
IP68
Performance :
Stable reliability,UV and yellowish resistant
Lifetime :
50000H
certification :
UL CE ROSH
Description

Silicone SMD 2835 chips Flexible Mini Size Led Neon Strip for Outdoor Sign

Advantage

  • Low voltage 12vdc 24vdc available
  • Thin neon light with same color case as the light 5/8.5MM*13*50000mm
  • Various Available color: Warm white Pure white Cool white Red Blue Green Pink Yellow RGBand Full color
  • Eatable Silicon: more safe, Resistant to elevated temperatures/Oxidation/Weak Acid and Weak Base
  • Arc design makes the wide lighting beam angle, make the lights more uniformity
  • Cuttable available, for 12v flex neon, can be cut at each group 3leds, any model is available.
  • End Cap is transparent which is good for connection place, no light pot. Also which is waterproof design.
  • All our new design neon light is 3 years warranty

Product features

  • Uniform&even light source with no LED “hotspots” and three-dimensional emitting.
  • More durable and flexible with 120mm minimum bending diameter.
  • Easy for transportation and installation.
  • Product can be fixed in the rugged place (smooth surface and bendable).
  • Beam angle: 150°.
  • Input voltage: 12VDC/24VDC.
  • Excellent lumen maintenance (3oz FPC).
  • 12VDC product: maximum length 10 meters (32.8ft).
  • 24VDC product: maximum length 15 meters (49.2ft).
  • Flexible cutting (the cut mouth sealed by silicone glue).
  • IP68.
  • table reliability and anti-UV.

Application data

Maximum length①

10/15 meters

(32.8/49.2ft)
Ambient temperature range -25 ~ +50 °C
The temperature of module top 65 °C
Storage temperature range -40 ~ +70 °C
Certification CE/UL/ RoHS

Installation

U-type PC accessory to fix

Technical data

Product Name Nominal voltage③ Color temperature or Wavelength①② CRI①②

Typ.

Flux/meter(3.28ft)

①②

Typ.

Power/meter(3.28ft)①②
TL-SW08A/B(2835) 12/24 VDC 2700-5500 K >75 850~1100 lm 12 W
TL-SR08A/B(2835) 12/24 VDC 620-625 nm Red 300~350 lm 12 W
TL-SG08A/B(2835) 12/24 VDC 520-528 nm Green 210~230 lm 12 W
TL-SB08A/B(2835) 12/24 VDC 465-470 nm Blue 1100~1010 lm 12 W
TL-SY08A/B(2835) 12/24 VDC 590-596 nm Yellow 300~310 lm

12 W

① Tolerance range for optical and electrical data: ±15 %.

② All value @ ta=25℃.

③ Voltage tolerance range of the power supply: ±5 %.

Product 2D drawing

  • 12VDC/24VDC product interior drawing

3 LEDs cut-able

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use

6 LEDs cut-able

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use

  • Product installation schematic diagram

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use

Product sectional drawing

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign UseFull Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use

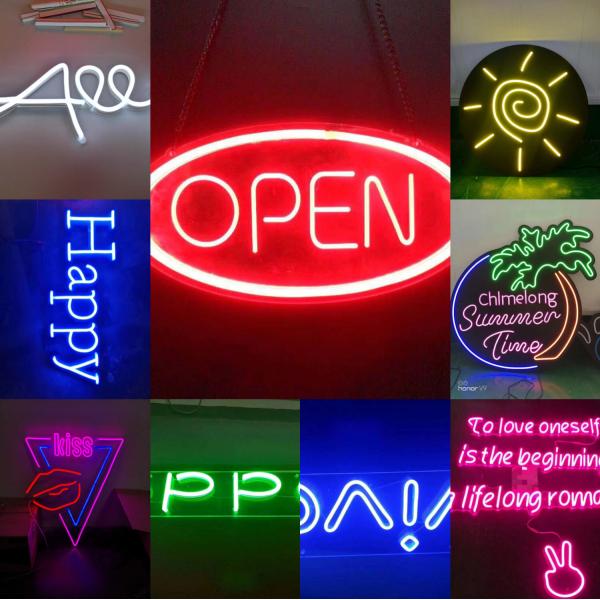

Product application

Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use

Connect two products

Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result

on application requirement “+/+”, “-/-“

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use

Benging direction

The maximum bending angle 360°Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign UseThe minimum bending radius: 15mm (0.59")

Light distribution

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use

Packaging information

Product name

Product dimension

(L*W*H)

Carton dimension

(mm/inch)

Total length/carton

Gross

weight (kg)

RCC0GX06A/B(2835)

 5m*8mm*12mm (16.4ft*0.32"*0.47") 520*370*260 (20.5"*14.5"*10.2")

200m (656ft)

20

Full Colors Commercial Electric LED Rope Light SMD 2835 Chips Outdoor Sign Use
