Specifications
Certification :
CE FCC ROHS
Input Voltage(V) :
DC24V
Model Number :
M9T-S
Mounting :
Screw or Magnet (optional)
Price :
$18-26
Length/Power :
280mm/8W, 380mm/12W, 480mm/16W, 580mm/20W
Supply Ability :
1-800pcs 5-12 working days
MOQ :
1
Delivery Time :
5-8 working days
Life span :
50000H
Payment Terms :
T/T
Brand Name :
ONN
Material :
Aluminum + Tempered Glass
Packaging Details :
480mm 20pcs 635*230*205mm 13kg
Place of Origin :
Guangdong, China
Warranty(Year) :
2-Year
Description

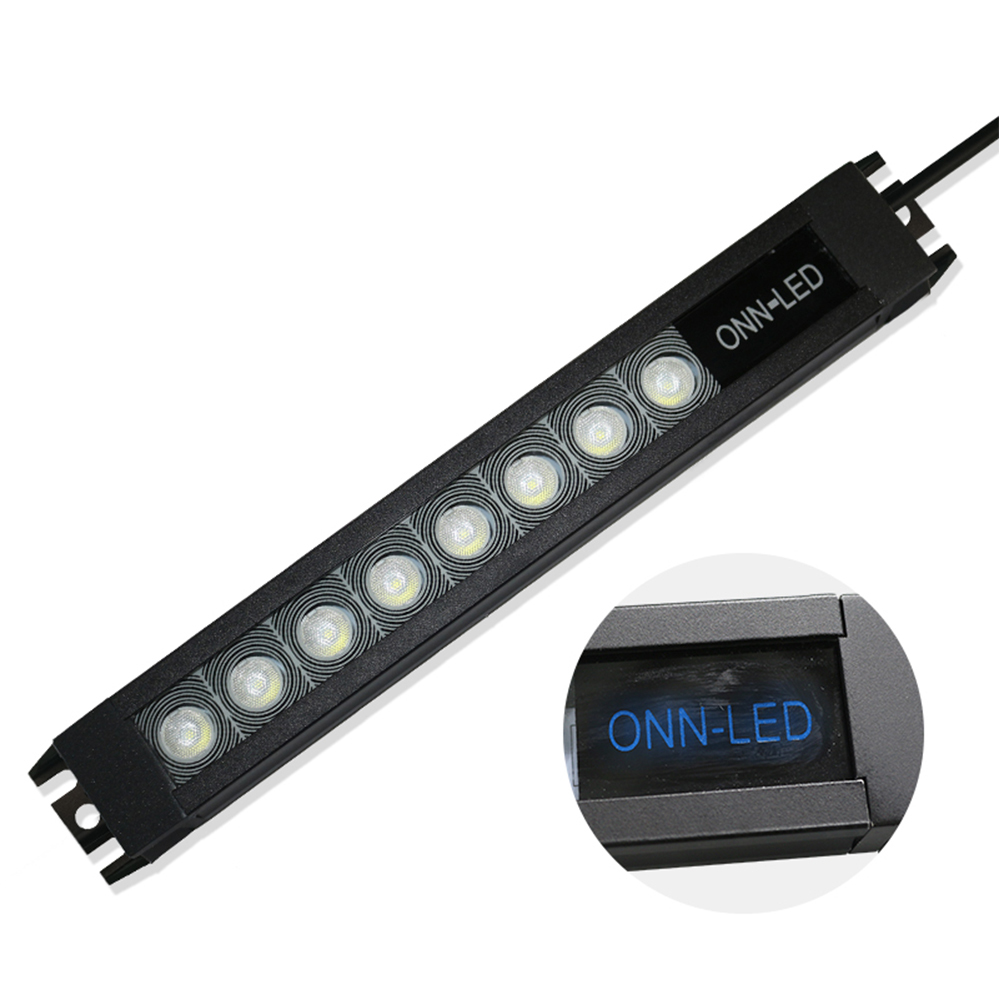

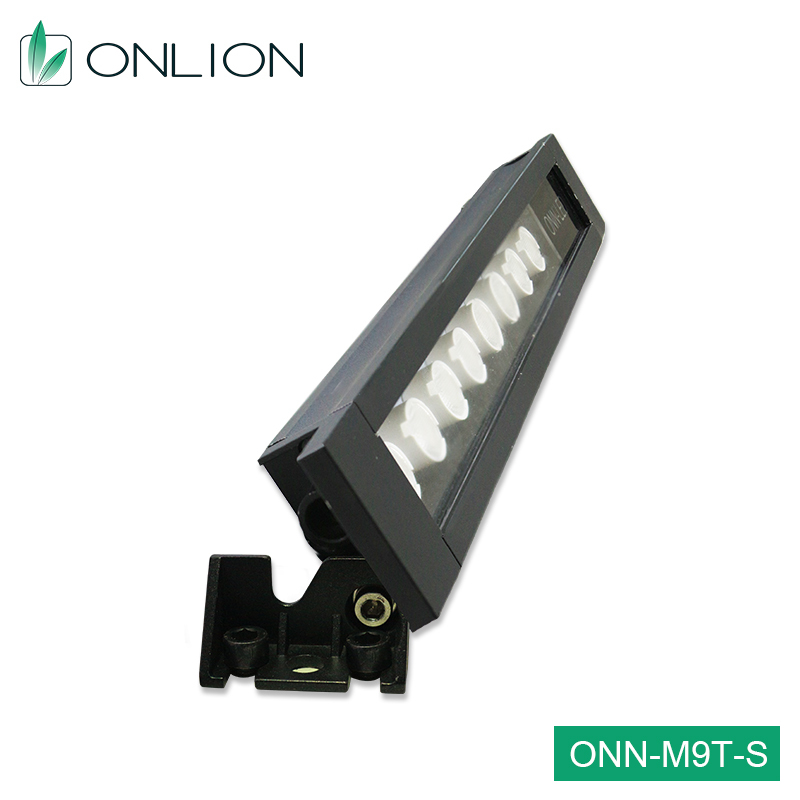

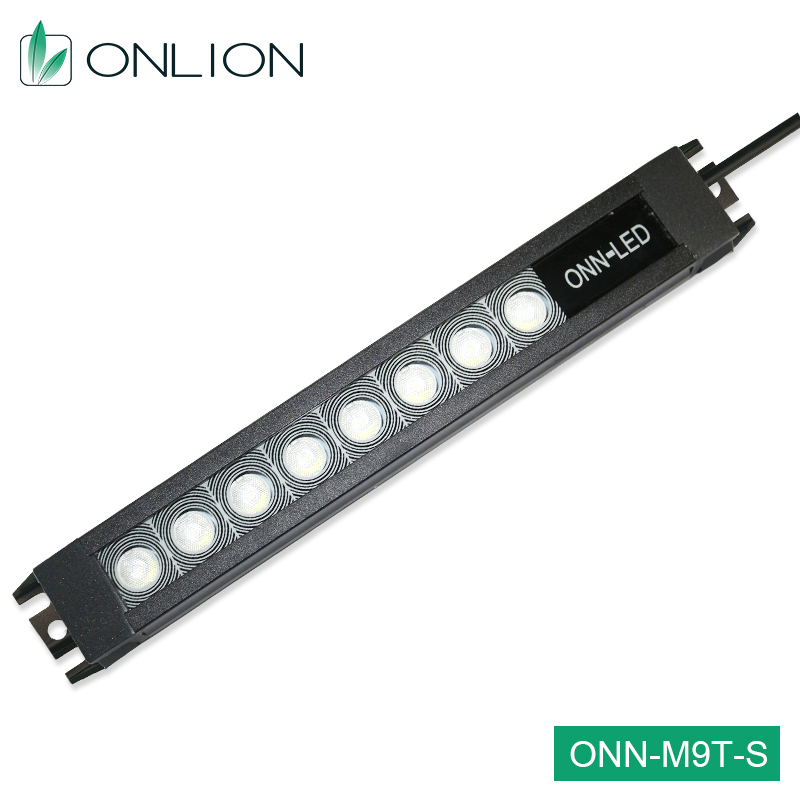

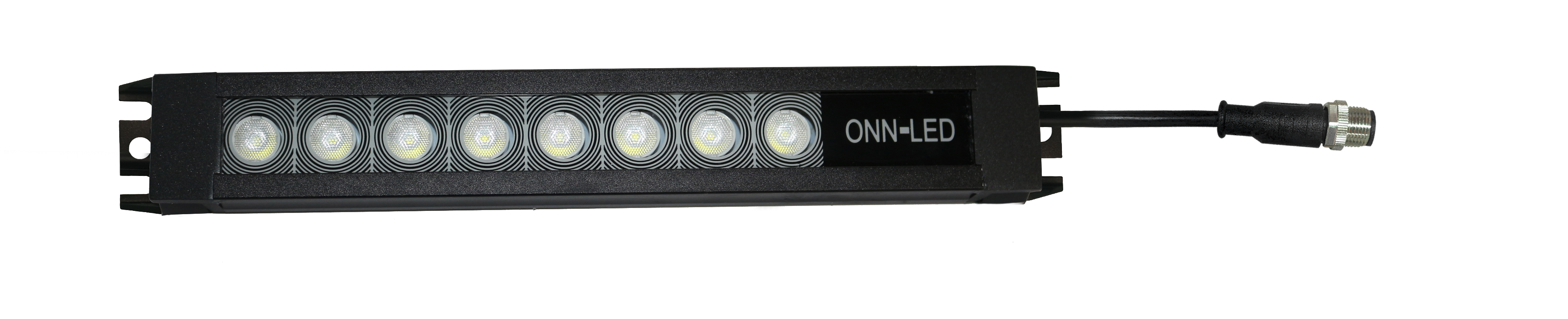

ONN-M9T-S LED Machine Light IP67 DC24V Magnet Mount Optional for Workshops

Product Overview

The ONN-M9T-S is an ultra-slim IP67 LED machine light designed for space-constrained industrial applications. Featuring an anodized aluminum body with tempered glass, it withstands coolant spray, high-pressure wash, and detergents. SMD3030 LEDs deliver 85lm/W with a focused 36° narrow beam — ideal for precise task illumination. The 90° rotatable design allows flexible light direction control. Optional magnet mounting simplifies installation and repositioning. Available in 4 lengths (280-580mm) and 3 CCT options. DC24V. 50,000hr lifetime. CE/RoHS. 2-year warranty.

Quick Detail

  • Ultra-Slim Profile: Minimal thickness for tight spaces

  • IP67 Waterproof: Resists washdown, coolants, detergents

  • 90° Rotatable: Adjustable light direction

  • Magnet Mount Optional: Tool-free installation & repositioning

  • Narrow 36° Beam: Focused illumination for precision tasks

  • Durable Build: Anodized aluminum + tempered glass

  • Voltage: DC24V | Efficacy: 85lm/W | CRI: >80

  • Length/Power: 280mm/8W, 380mm/12W, 480mm/16W, 580mm/20W

  • CCT: 2800-3200K / 4000-4500K / 6000-6500K

  • Lifetime: 50,000 hours | Warranty: 2 years

Specifications

Parameter Specification
Model ONN-M9T-S
Length/Power 280mm/8W, 380mm/12W, 480mm/16W, 580mm/20W
Voltage DC24V
Efficacy 85lm/W
CRI >80
Beam Angle 36°
IP Rating IP67
Rotation 90° adjustable
Material Aluminum + Tempered Glass
Mounting Screw or Magnet (optional)
Lifetime 50,000 hrs
Cert CE, RoHS

Key Advantages

  • Ultra-slim — fits tight machine enclosures

  • 36° narrow beam — precise, focused lighting

  • 90° rotatable — aim light exactly where needed

  • Magnet mount option — quick install, tool-free repositioning

  • IP67 — coolant/washdown resistant

  • 4 lengths — match any machine size

Applications

CNC/EDM/engraving machines, assembly stations, laboratories, equipment interiors, precision task lighting.

Package Info

Length 280mm 380mm 480mm 580mm
Qty/Carton 20pcs 20pcs 20pcs 20pcs
Carton Size 435*240*210mm 435*240*210mm 635*230*205mm 635*230*205mm
N.W. 7kg 9.6kg 12.2kg 14.8kg
G.W. 8.68kg 12kg 13kg 15kg
