ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
ONN-M9S UL Listed CNC Machine Light 24V 220V 300 - 800mm IP67 LED Light Bar
Specifications
Delivery Time :
5-8 working days
Emitting Color :
Cold White, Warm White, White
Place of Origin :
Guangdong, China
Certification :
CE/UL
Supply Ability :
1-1000pcs 5-12 working days
IP Rating :
IP67, IP67
Model Number :
ONN-M9S
Price :
$44-47.90
MOQ :
1
Power :
7/12/16/20
Brand Name :
ONLION
Working Temperature(℃) :
-20 - 45
Payment Terms :
T/T
Color Temperature(CCT) :
6000K (Daylight Alert), 2800-3200K/4000-4500K/6000-6500K
Packaging Details :
9 pieces/carton, 990x210x240mm, N.W. 10kg, G.W. 13kg
Input Voltage(V) :
24V/220V
Description
ONN-M9S UL-Listed IP67 CNC Machine Light 24/220V, 300-800mm. Withstands Coolant. No Frequent Burnouts. Long Life.

Product Overview
ONN-M9S is a compact tubular LED machine tool work light from ONN Lighting with UL certification. Constructed with aluminum alloy housing and tempered glass, it adopts integrated sealed design to reach IP67 rating, resisting water, oil, dust and cutting fluid. Equipped with premium LED chips, it delivers uniform, stable illumination with low light decay. Multiple voltage options are available, and the adjustable bracket enables flexible lighting angles. Featuring shock-resistant structure, it fits CNC machines and machining centers. Compact in size and easy to mount, it operates steadily under tough workshop conditions, serving as an ideal lighting option for high-end industrial equipment.

Quick Detail
  • Multiple power options: 7W, 12W, 16W, 20W to satisfy different brightness demands
  • Four available lengths: 300mm, 400mm, 600mm, 800mm for diverse installation space
  • Two voltage choices: B=AC/DC24V, C=AC90-240V, compatible with global machine tools
  • Three color temperatures optional: 6000-6500K cool white, 4000-4500K natural white, 2800-3200K warm white
  • IP67 integrated sealed structure, waterproof, oil-proof, dustproof and anti-cutting fluid splash
  • Aluminum alloy housing and tempered glass, shock-resistant for vibrating machining environment

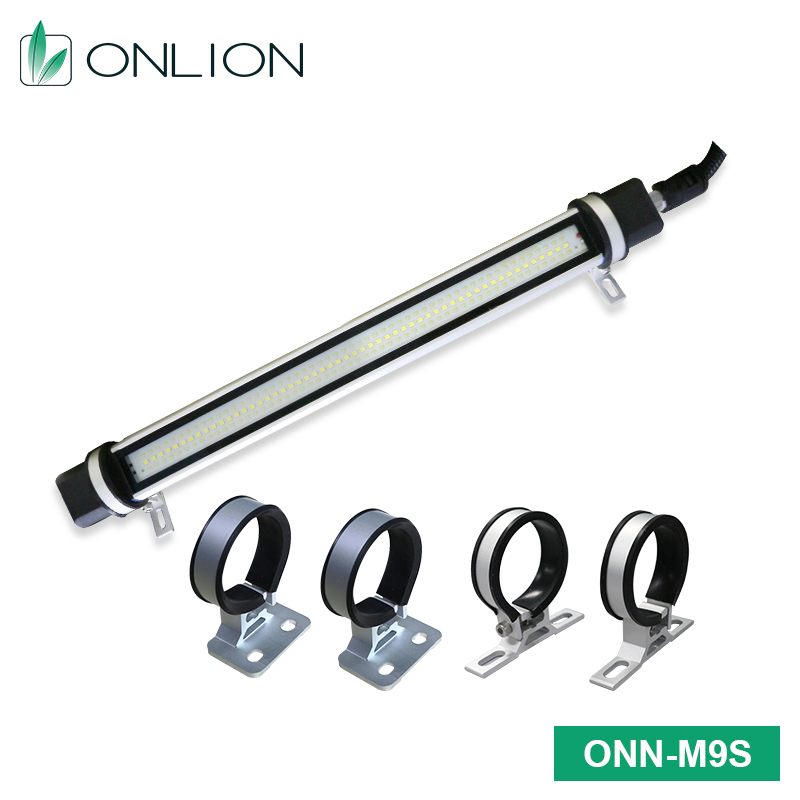

  • Equipped with adjustable mounting bracket to flexibly adjust lighting angle
  • Compact tubular design, easy to install inside narrow equipment space

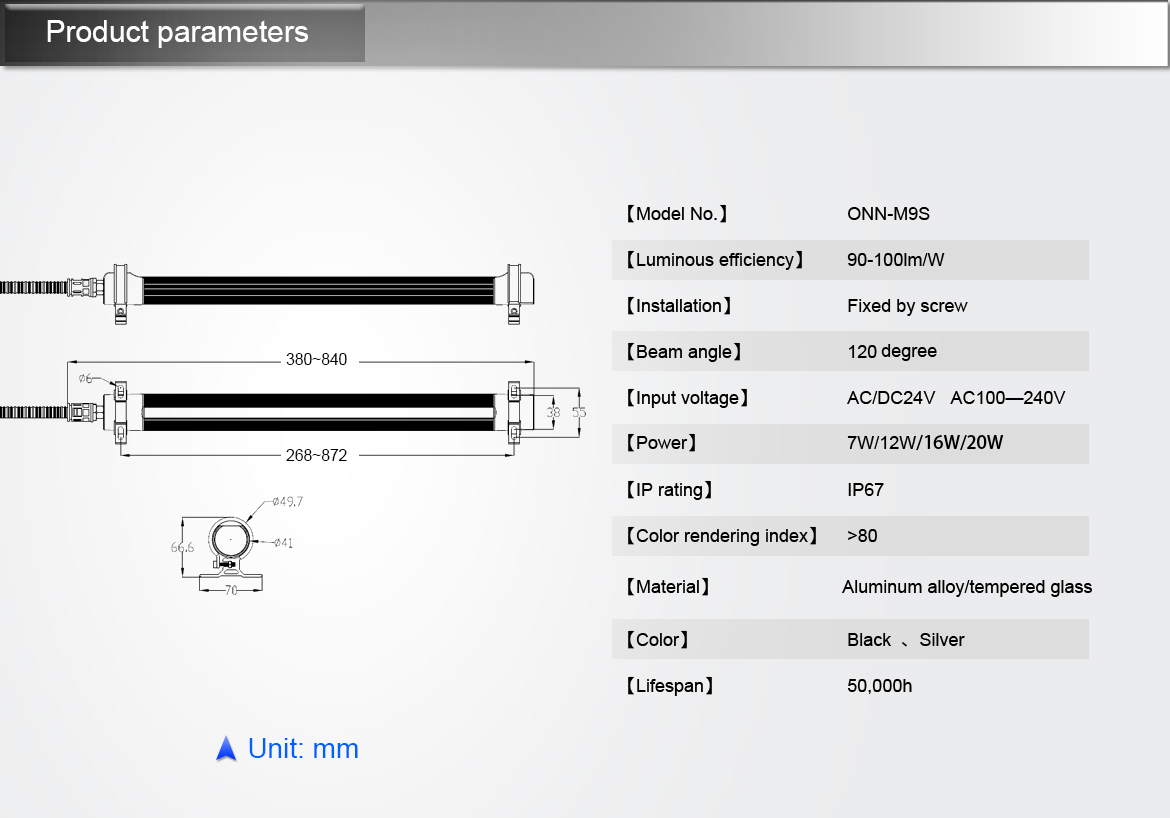

Specifications

Parameter Specification
Model ONN-M9S
Power(length) 7W(300mm), 12W(400mm), 16W(600mm), 20W(800mm)
Input voltage(current) AC100-240V(50/60Hz), AC/DC24V
Lumen efficiency 110lm/w
CRI ＞80
Beam angle 115 degree
IP Rating IP67
Color temperature 2800-3200K, 4000-4500K, 6000-6500K
Material Aluminum housing, Tempered glass
Lifetime 50,000 hours
Mounting Screw fixing or hanging
Competitive Advantages
  • Complete Specifications & Voltages Four power & length options, multiple voltages available, compatible with various machine tools worldwide.
  • IP67 Superior Protection Waterproof, oil-proof and dustproof, resistant to cutting fluid splash for harsh workshop conditions.
  • Long Service Life Aluminum housing and tempered glass, 120lm/W luminous efficiency, 50,000 hours lifespan.
  • Multiple Color Temperatures Three color temperature options to meet different machining observation requirements.
  • Excellent Optical Performance 110° wide beam angle, CRI＞80, realizing accurate color rendering of workpieces.
  • Strong Environmental Adaptability Wide operating temperature range, stable operation in high and low temperature workshops.

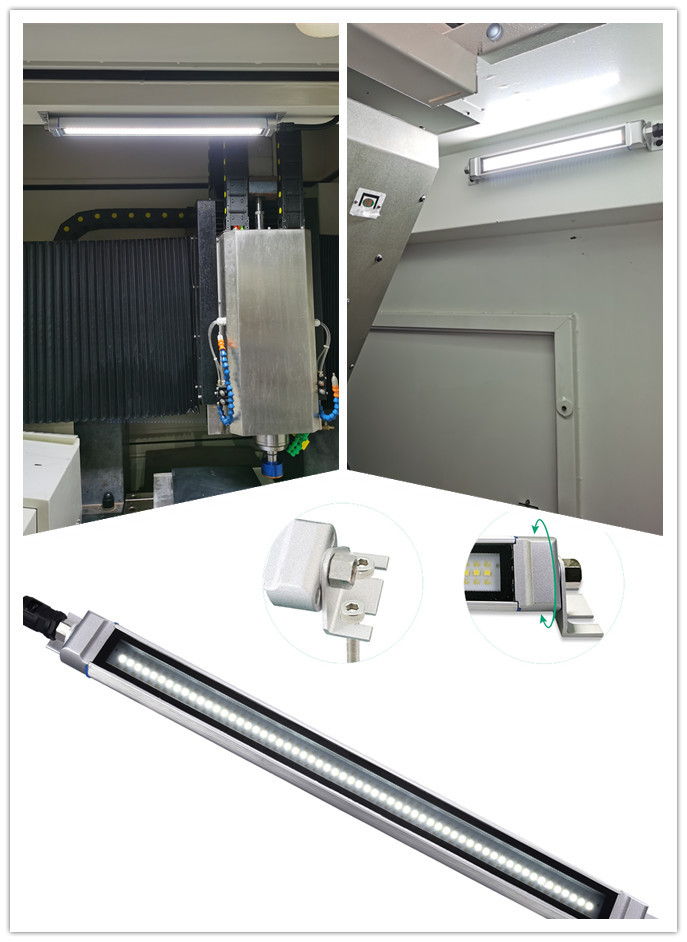

Applications

CNC machining centers, SMT lines, automated packaging, injection molding, robotics workcells, conveyors, and industrial warning systems.

Package Info

9 pieces/carton, 990x210x240mm, N.W. 10kg, G.W. 13kg
