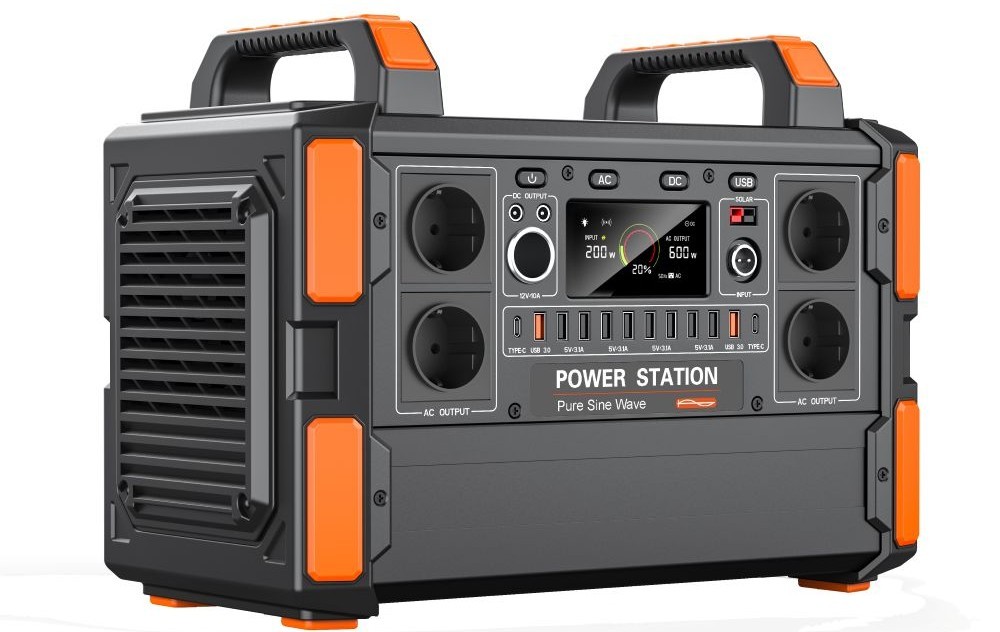

| Functional Project | Name | T11 1200W |
|---|---|---|
| Portable Solar Generator | ||
| General Parameters | Built-in Battery | LiFePO4 |
| Battery Capacity | 1008Wh (315,000mAh/3.2V) / 22.4V 45Ah | |
| Input Recharging | DC 38V/6.0A | |
| Solar Panel Charging | 12V~50V/MPPT MAX 350W | |
| Fully Charged Time | DC 38V: 5 Hours | |
| DC Output |
8 X USB Port: 5V/2A MAX 2 X USB QC 3.0: 5V~9V/2A MAX 18W 1 X Type-C Port: 5V~9V/2A MAX 18W 1 X Type-C Port: 5V~20V PD 60W (Bi-directional charge/discharge) 2 X 5521 DC Output: 12V/7A (Regulated voltage) 1 X Cigar Output: 12V/7A (Regulated voltage) |
|
| AC Output | 4 x AC 230V/110V pure sine wave output | |
| AC Continuous Output Power | 1200W | |
| Operating Temperature | -10℃ to 40℃ | |
| Lifecycle | >2000 times | |
| Product Protection |
Short circuit protection, Overcurrent protection, Overvoltage protection, Undervoltage protection, Overload protection, Over temperature protection |
|
| Package Included |
1 x portable solar generator 1 x power adapter 1 x user manual |
|
| Adapter Parameters | Output | 38V 6A |
| DC Interface | GX16 | |
| Shape | Desktop | |
| Input Charging Function | Support power adapter charging | Support |
| Support solar panel charging | Support | |
| Battery | Battery Brand | PLB |
| Battery Model Specifications | LiFePo4 battery | |
| Single Cell Capacity | 15000 mAh | |
| Battery Series Parallel | 7 series 3 parallel | |
| Battery Charge and Discharge Life | >2000 times | |
| Structure | Product Dimension | 394*213*287 mm |
| Net Weight | About 13.2 kg | |
| Material | ABS plastic + aluminum shell, plastic shell fire rating 94-V0 | |
| Product Color Matching | Can be freely matched by customers (MOQ required) | |
| Product Packaging | Product Packaging | Carrying case neutral |
| Carton Size | 498*325*380 mm | |
| Number of Outer Boxes | 1 PCS/CTN | |
| Package Weight | 16 kg | |
| Certification | CE/FCC/PSE/RoHS/UL/MSDS/UN38.3 Shipping report, Land Transport Report, Dangerous package certificate | |
