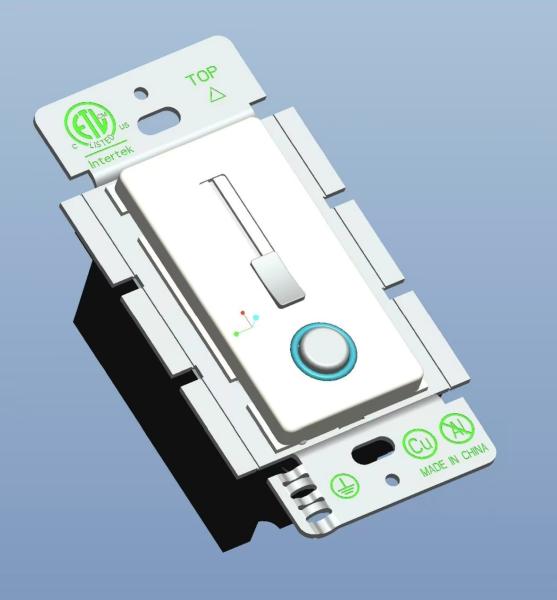

120V Rectangle 12V Dimmer Switch with Driver
Product Specifications
Attribute |
Value |
Installation type |
Wall Mounted |
Input |
AC 125V |
Output |
DC12V |
Max Load |
60W |
Frequency |
60Hz |
Material |
PC+ABS |
Application |
For LED Strip |
Connection |
Directly connect with LED Strip, no need driver |
Working Principle & Dimming Technology
DC dimmers adjust light source brightness by modifying current or voltage, performing voltage conversion and stable current control. Two primary dimming technologies are employed:
- PWM (Pulse Width Modulation): Adjusts LED brightness by altering duty cycle to control average current
- Linear Dimming: Controls current through LED by modifying input voltage or current detection resistor resistance
Key Advantages
- Flicker-free & Silent Operation: Advanced PWM technology eliminates flickering and reduces noise
- High Efficiency: Exceptional reliability with extended operational lifespan
- Multi-Channel Common Anode: Supports multiple LED lamp configurations
- Precision Dimming: 0.1% adjustment accuracy for optimal lighting control
Application Scenarios
- Indoor Lighting: Residential, office, and commercial spaces
- Outdoor Lighting: Street, landscape, and public area illumination
- Automotive Lighting: Vehicle interior and exterior lighting systems
- Stage Lighting: Performance and event lighting solutions
- Advertising Displays: LED billboards and informational displays
- Smart Lighting: IoT-enabled lighting control systems
Technical Specifications
Item No. |
KD-DC12V60W |
Feature |
Dimmer with driver built in |
Input |
AC120V |
Output |
DC12V |
Max Load |
60W |
Yoke |
Aluminum plate |
Switching Life |
40,000 cycles |
Flame Classification |
UL94-V0 |
Operating Temperature |
-10℃ to 40℃ |
Wires |
18AWG Copper |
