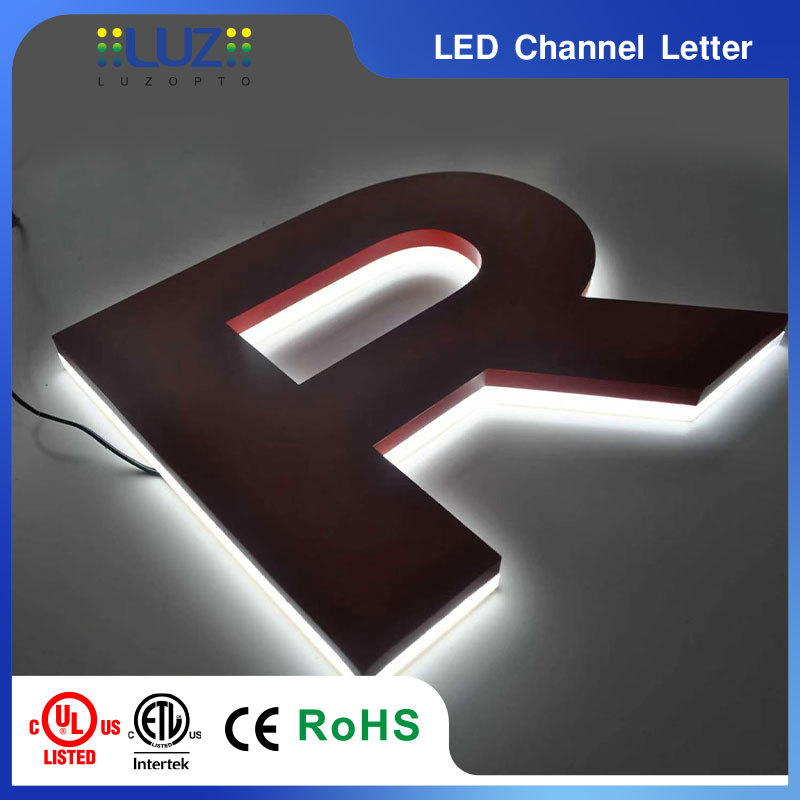

Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs

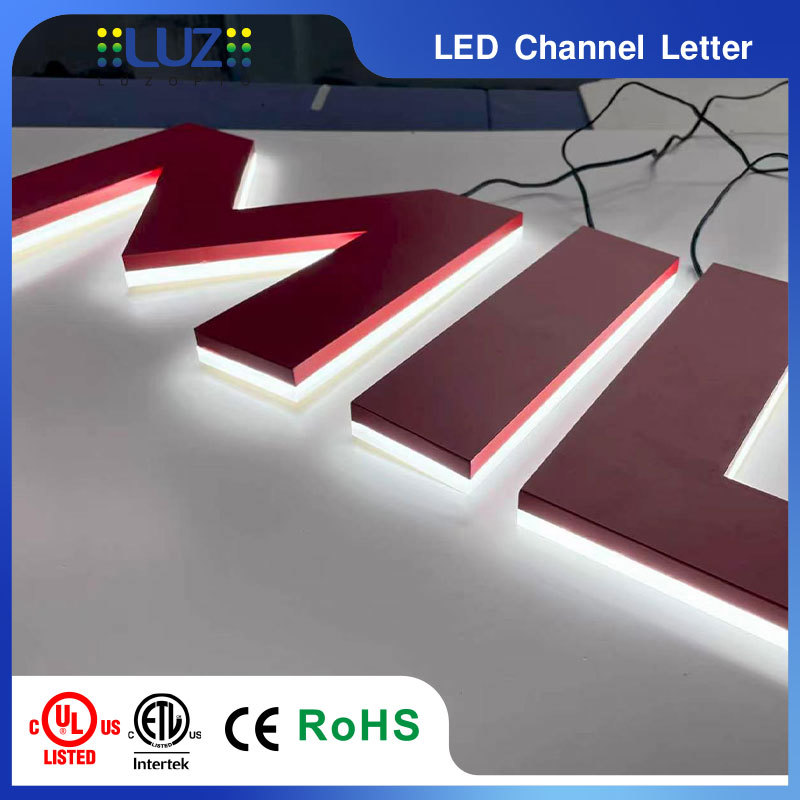

Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs

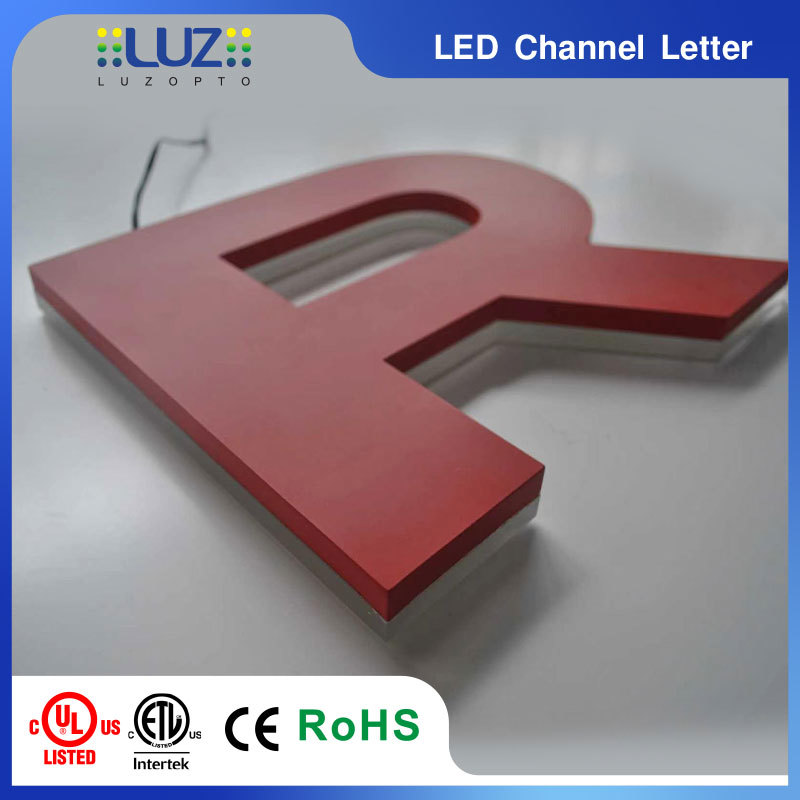

Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs

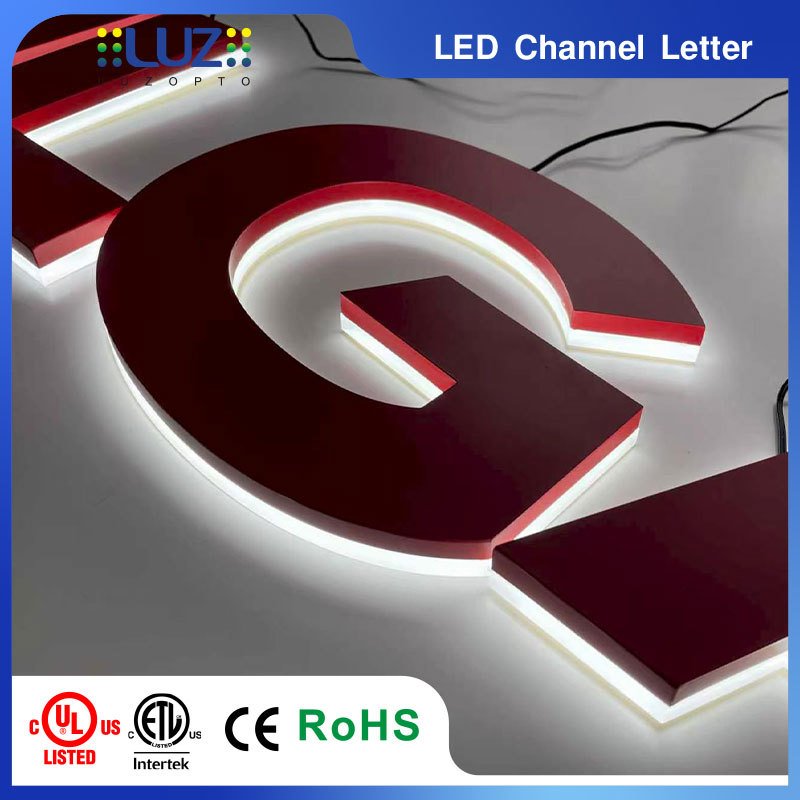

Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs

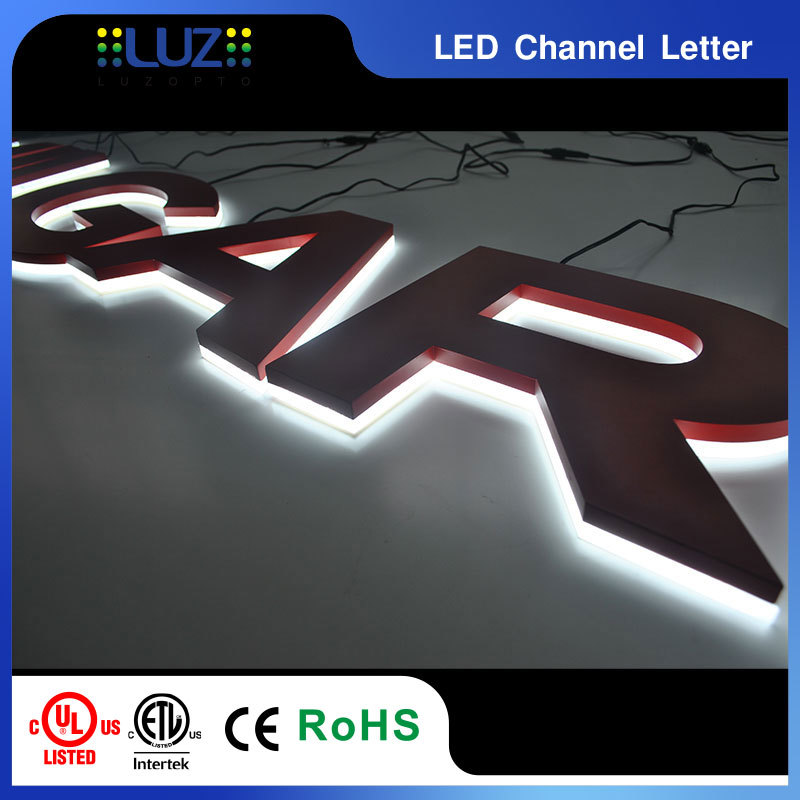

Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs
Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs
Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs
Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs
Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs
Solid Face Edge-Lit Acrylic 3D LED Letters for Outdoor & Indoor Storefront Signs
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
LED Color & Temperature :
3000K Warm White, 4000K Neutral White, 6500K Cool White, RGB / RGBW Multi-Color
Certification :
UL / CE / RoHS
Face & Base Material :
Opaque Solid Face + Optical-Grade Cast Acrylic Base
Safety & Compliance :
UL Listed, ETL, CE, RoHS Compliant Components
Operating Voltage :
Safe DC 12V / DC 24V (Global AC 110–240V Transformer Included)
Mounting Method :
Standoff Spacers (Enhanced Halo Glow), Direct Flush Mount, Raceway Mount
Surface Finish :
Custom Pantone / RAL Color, Matte Solid, Gloss, Brushed Metallic
Brand Name :
LUZ OPTO
Lighting Type :
Edge-Glow Side-Lit, 3D Halo Backlit, Dual Side & Halo Glow
Delivery Time :
7-12 Business Days
Waterproof & IP Rating :
IP65 Waterproof (Outdoor Commercial), IP20 (Indoor Architectural)
Description

Custom Acrylic Side-Lit LED Channel Letters | 3D Halo Backlit Business Signs

Elevate your brand presence with precision-engineered Custom Acrylic Side-Lit LED Channel Letters. Designed with an opaque, solid-face front and a crystal-clear acrylic base, these 3D dimensional letters project a balanced, continuous side glow and soft halo-backlit aura on any mounting surface. Engineered for both high-end interior architectural branding and weather-resistant outdoor storefronts, our illuminated sign letters offer an elegant aesthetic without harsh glare.

Key Features & Advantages

  • Precision Side-Lit Illumination: The solid front panel directs 100% of the light outward through the sculpted acrylic edges, creating a distinct outline and ambient halo effect.
  • Seamless Solid Construction: Precision-milled from premium cast acrylic and high-grade resin/metal alloys with crisp, seamless edges and zero light leakage.
  • Industrial-Grade LED Modules: Powered by high-efficiency, energy-saving LEDs that deliver uniform luminance, high color rendering (CRI > 80), and an operational lifespan exceeding 50,000 hours.
  • All-Weather Durability: Built with waterproof IP65/IP67 internal sealing, UV-stable coatings, and corrosion-resistant finishes to withstand harsh outdoor elements.
  • Global Safety Compliance: Engineered to meet international electrical and safety standards for commercial installations (UL Listed / ETL / CE / RoHS certified components).

Technical Specifications

ParameterSpecification Details
Product Type3D Solid-Face Side-Lit / Halo-Lit Channel Letters
Face MaterialSolid Cast Acrylic / Aluminum / Stainless Steel (Customizable)
Side & Base MaterialHigh-Transmittance Optical Grade Acrylic (15mm – 30mm thickness)
Light SourceWaterproof SMD LED Modules / Embedded LED Strips
Lighting StyleEdge-Glow / Side-Lit / Halo Backlit
Color TemperatureWarm White (3000K), Neutral White (4000K), Cool White (6500K), or Custom RGB/RGBW
Input VoltageAC 110V–240V (50/60Hz)
Working VoltageDC 12V / DC 24V Low Voltage Safe Operation
IP RatingIP65 (Outdoor Waterproof) / IP20 (Indoor Architectural)
Operating Temp-30°C to 60°C (-22°F to 140°F)
CertificationsUL Listed, ETL, CE, RoHS compliant components
Expected Lifespan≥ 50,000 Hours

Commercial Applications

  • Storefront Signage: Retail shops, flagship boutiques, shopping mall fascias, and commercial plazas.
  • Corporate Lobbies & Receptions: High-end office branding, feature walls, and boardroom signage.
  • Hospitality & Leisure: Hotels, luxury resorts, upscale restaurants, cocktail bars, and spas.
  • Architectural Signage: Commercial building IDs, showroom identity signs, and directional wayfinding.

Customization & OEM/ODM Capabilities

We manufacture custom signage tailored directly to your architectural blueprints, vector designs, and brand guidelines:

  • File Compatibility: Send your artwork in vector formats (.AI, .EPS, .PDF, .DXF, .DWG).
  • Custom Finishes: Matte, gloss, brushed metallic, electroplated, or custom Pantone / RAL color matching.
  • Stroke & Size Flexibility: Able to process intricate typography and tight strokes down to 10mm width.
  • Mounting Solutions: Flush mount, standoff/spacer mount (for pronounced halo effect), or raceway mount.

What’s Included in the Package

  • Custom Fabricated LED Channel Letters (Individually wired and labeled)
  • 1:1 Full-Scale Paper Installation Template (with pre-marked drill hole points)
  • MeanWell® / UL-Certified Water-Resistant Power Supply (DC 12V/24V)
  • Stainless Steel Mounting Studs, Spacers, and Hardware Accessories
  • Detailed Wiring & Installation Diagram

Frequently Asked Questions (FAQ)

Q: Are these side-lit letters fully weather-resistant for outdoor use?

A: Yes. All outdoor configurations use silicone-potted, waterproof LED modules (IP65/IP67 rating) combined with UV-stabilized acrylic and anti-corrosion coatings to ensure durability in extreme weather conditions.

Q: How do the letters connect to main power?

A: The letters run on safe low-voltage DC 12V/24V power. Each letter connects via lead wires on the back into a single certified power transformer (included), which then connects directly to your standard 110V–240V mains power.

Q: Can you manufacture custom fonts and brand logos?

A: Absolutely. Every project is fully custom-made. Provide your vector logo file (.AI, .EPS, or .PDF), and our engineering team will produce 3D CAD/production renderings for your review before fabrication begins.

Q: What is the standard production turnaround and shipping lead time?

A: Standard custom production typically requires 5–8 business days depending on design complexity and quantity. Air express shipping (DHL/FedEx/UPS) delivers globally within 3–6 business days.
