Outdoor 3D Face-Lit & Halo-Lit Channel Letter Signs with Raceway Mount | Custom Commercial Signage
Outdoor 3D Face-Lit & Halo-Lit Channel Letter Signs with Raceway Mount | Custom Commercial Signage
Outdoor 3D Face-Lit & Halo-Lit Channel Letter Signs with Raceway Mount | Custom Commercial Signage
Outdoor 3D Face-Lit & Halo-Lit Channel Letter Signs with Raceway Mount | Custom Commercial Signage
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Face & Return Material :
UV-Resistant Acrylic Face + 304 Stainless Steel / Aluminum Return
Certification :
UL / CE / RoHS
Mounting Type :
Raceway Mount / Extruded Wireway Track
Protection Rating :
IP65 / IP67 Waterproof (-30°C to +60°C / -22°F to 140°F)
Safety Certifications :
UL Listed / ETL / CE / RoHS Compliant
Customization Scope :
Custom Font, Vector Logo, RAL/PANTONE Color Matching, 1:1 Mounting Template
Input & Operating Voltage :
Working Voltage: DC 12V/24V | Input: AC 110V–240V (50/60Hz)
Brand Name :
LUZ OPTO
Illumination Style :
Front-Lit & Halo-Lit (Dual Illumination)
Delivery Time :
7-12 Business Days
Lighting Source & Color :
IP67 SMD LEDs (3000K Warm / 6500K Cool White / Custom Dual-Tone / RGB)
Description

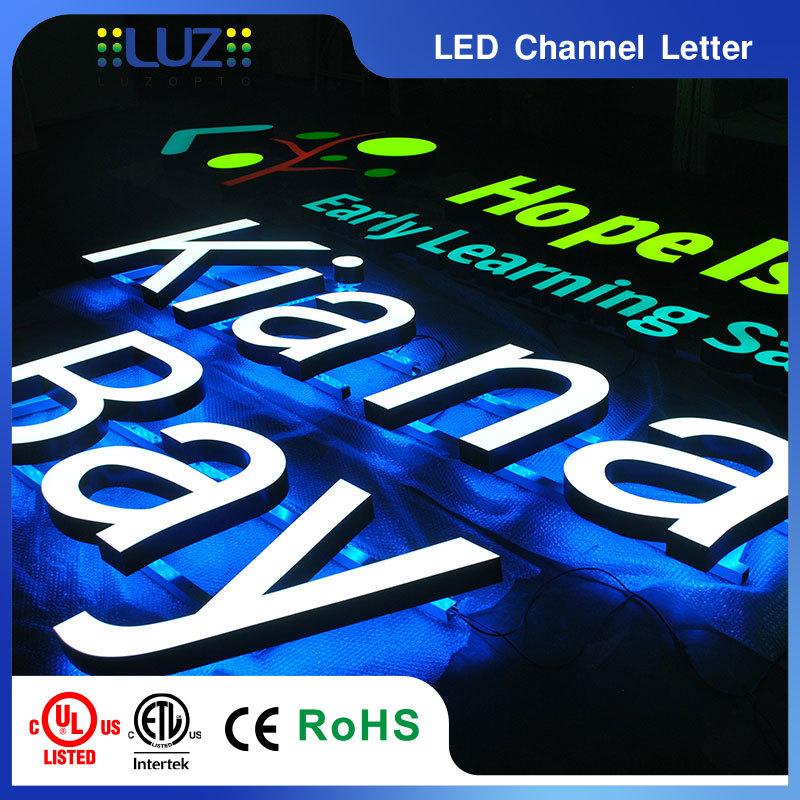

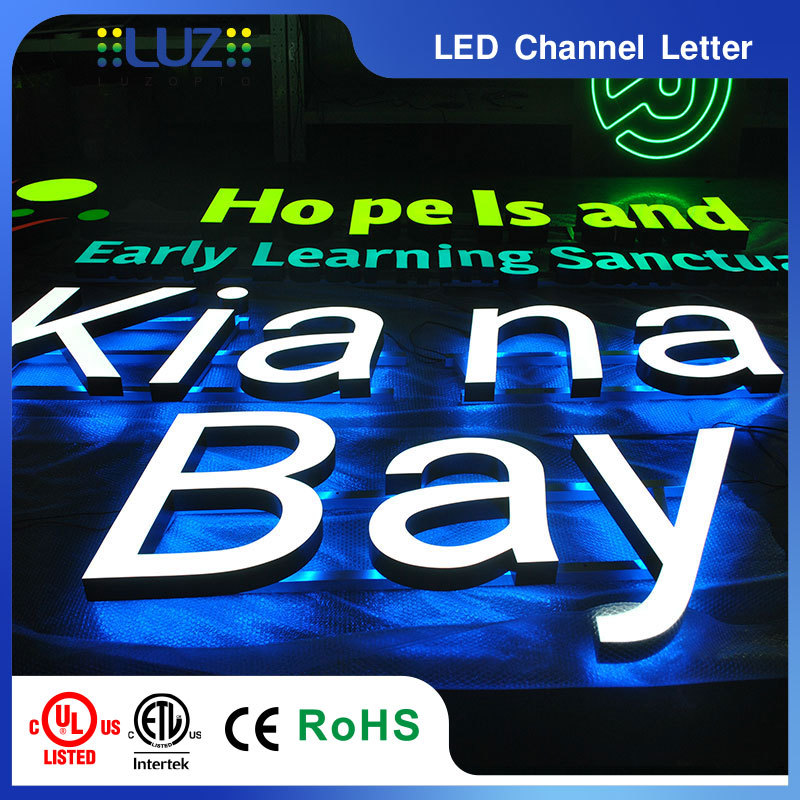

Outdoor 3D Face-Lit & Halo-Lit Channel Letter Signs with Raceway Mount

Elevate your brand's storefront visibility with our premium Custom 3D Dual-Illuminated (Front & Halo-Lit) LED Channel Letters. Engineered specifically for outdoor commercial facades, retail plazas, and corporate buildings, this dual-illumination design combines crisp, high-visibility face lighting with an elegant ambient halo backglow.

Mounted on a durable, pre-wired extruded aluminum raceway, this signage solution ensures fast, structural-grade installation while drastically reducing wall penetrations and concealing power supplies.

Key Features & Engineering Highlights
  • Dual Illumination (Front & Backlit): Delivers maximum 24/7 readability from a distance while casting a sophisticated halo glow against your architectural facade.
  • Integrated Raceway Mounting: Pre-assembled and pre-wired on a heavy-duty aluminum raceway box for simplified 1-circuit electrical hookup and landlord-compliant installation.
  • Commercial-Grade Durability: Constructed from UV-stabilized cast acrylic faces and anti-corrosion stainless steel or aluminum returns/backs.
  • Certified Safety Standards: Built with UL-listed / ETL / CE / RoHS certified low-voltage (12V/24V) LED modules and IP67 waterproof power drivers (Mean Well or equivalent).
  • Full Bespoke Customization: Tailored to your exact vector logo, brand typography, custom PANTONE/RAL color matching, and dual-tone lighting configurations.
Technical Specifications
Specification Standard Configuration & Custom Options
Illumination Type Dual Illumination: Front-Lit (Face) + Halo-Lit (Backlit / Reverse Glow)
Face Material 3mm - 5mm UV-Resistant Cast Acrylic (White / Colored / 3M Translucent Film Overlay)
Return (Side) Material Precision-welded 304 Stainless Steel or High-Tensile Aluminum (Trimless or Trim-cap options)
Backplate Clear/Frosted High-Diffusion Acrylic for uniform halo light dispersion
Mounting Structure Extruded Aluminum Raceway / Wireway (Custom powder-coated to match wall finish)
Light Source High-efficiency SMD LEDs (CRI > 80, 50,000+ hours lifespan, IP67 Waterproof)
Lighting Colors Face: Cool White (6500K), Warm White (3000K), Natural White, Custom Colors
Halo: White, Royal Blue, Amber, Red, Green, or RGB Dynamic (Optional)
Operating Voltage Input: 110V–240V AC (50/60Hz) | Working Voltage: 12V / 24V DC Safe Low Voltage
Safety Certifications UL Listed (UL 48 Compliant Components), ETL, CE, RoHS
Weather Resistance IP65 / IP67 Rated for harsh outdoor climates (-30°C to +60°C / -22°F to 140°F)
Warranty 3–5 Years Manufacturer Warranty on LED Modules and Power Drivers
Why Choose Raceway-Mounted Channel Letters?

Installing individual letters directly onto exterior walls (Flush Mount) often requires drilling multiple holes per letter for mounting hardware and electrical wiring, which many commercial property managers and landlords strictly prohibit.

  • Fewer Building Penetrations: The letters are securely pre-mounted to a single metal raceway track. Only a few structural anchor points are needed into the facade.
  • Self-Contained Electricals: All power supplies (transformers), secondary wiring, and ground cables are neatly housed and protected inside the water-tight raceway box.
  • Reduced Installation Costs: Cuts on-site labor and crane rental time by over 50%—simply secure the raceway, connect to the main J-box, and turn on the power.
How to Order Custom Signage (3 Simple Steps)
  1. Send Your Design: Submit your vector artwork (.AI, .EPS, .PDF, or .DXF) along with overall width/height constraints and lighting preferences.
  2. Shop Drawing & Quote: We provide detailed 2D/3D engineering proofs, electrical load calculations, and a transparent FOB/DDP quotation within 24 hours.
  3. Precision Fabrication & Testing: CNC laser cutting, specialized assembly, full 48-hour continuous illumination aging test, and safe export crating.
Export Packaging & Quality Assurance

To guarantee zero damage during international transit, every channel letter sign undergoes strict export packaging protocols:

  • Protective PE surface film + High-density EPE pearl foam buffer.
  • Reinforced fumigation-free wooden / plywood crates designed for ocean freight and international air express (DHL/FedEx/UPS).
  • Includes a 1:1 Full-Scale Mounting Template, electrical diagram, and mounting hardware kit.
Frequently Asked Questions (FAQ)

Q1: Are your illuminated channel letters compliant with US / European electrical codes?

Yes. All internal electrical components (LED modules, wire harnesses, and transformers) comply with UL 48, ETL, CE, and RoHS standards to ensure smooth inspection sign-offs by local authorities.

Q2: Can I customize different colors for the front face and the halo backglow?

Absolutely. You can select crisp cool white for the acrylic front face for high legibility, and a contrasting color (such as brand blue, amber, or warm white) for the halo backglow to create high visual depth.

Q3: What is the typical production lead time?

Standard custom fabrication takes 7 to 10 working days after shop drawing approval. Air express delivery takes 4–7 days, and ocean freight takes 20–35 days depending on destination.

Q4: How does the sign handle extreme outdoor weather?

Our channel letters are sealed with waterproof silicone, feature built-in weep holes for condensation release, and use IP67 rated outdoor LED systems tested for extreme UV exposure, heavy rain, and freezing temperatures.
