ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
Specifications
Brand Name :
DIYA
Model Number :
DY-PP06
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000 meters
Price :
$0.6 per meter
Payment Terms :
MoneyGram, L/C, T/T
Supply Ability :
1000000 meters one month
Delivery Time :
5-25 days
Packaging Details :
nylon bags or customer need
material :
steel Q195
surface :
PE coated
Technic :
Cold rolled
Thickness :
0.8-2.0mm
Diameter :
28mm
color :
black
function :
antistatic
Description

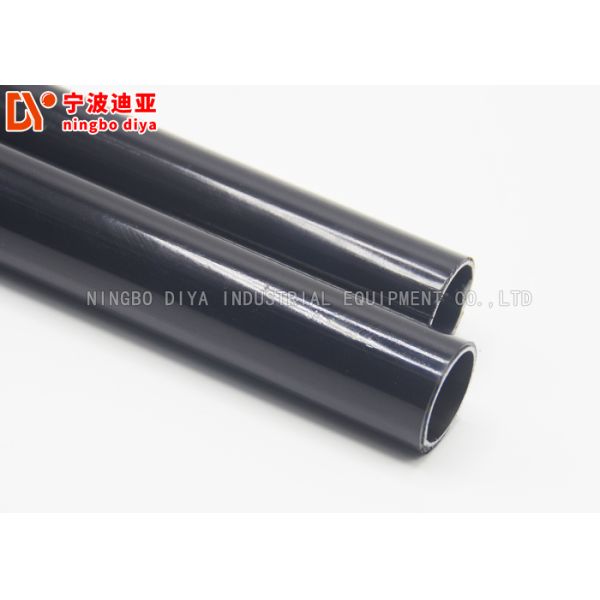

ESD Black Lean Pipe Cold Rolled Steel Tube Diameter 28mm Antistatic Bar

Production Description

ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure

Processing:

 Cold rolled steel sheet→Clean&Cut→Make it Round→Seamless Welded→Spraying antirust inside→Making the pipe rounder and straighter→Plastic Coated→Cooling→Cooling Again→Cutting into the length→Packaging;

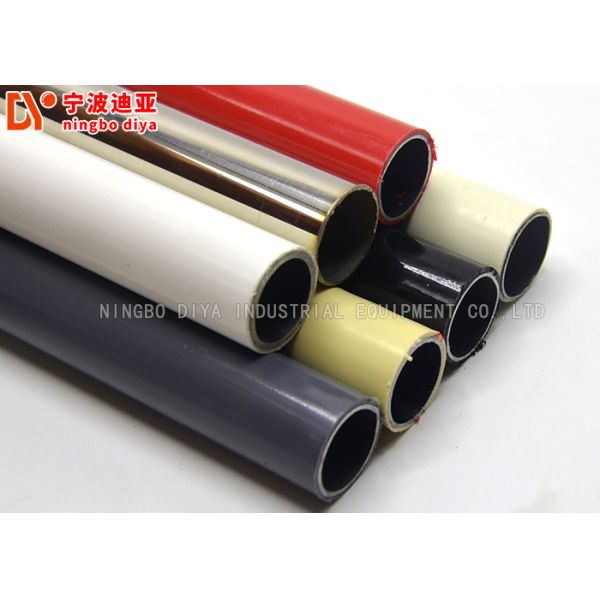

Material: ABS|PE|PP plastic coating + iron pipes + anti-rust painting ;
Outer diameter 10.7/13.4/12.8/15.8/18.8/21.7/19.7/22.9/25.2/29.4/27.4/31.7mm;
Inner diameter: 10.05/12.65/12.1/15.1/18.1/21/19/22.2/24.4/28.6/26.6/30.8mm;
Thickness: 0.30/0.40/0.8/1.0/1.2/1.5mm;
Colors: Beige,Ivory,Black,Gray,Green,Red,Blue and so on ;
Package: 20Pcs/Carton
MOQ: 1000Meters

Eco protection;easy installing; easy remove

Easy design;easy DIY;multitudinous structres

Widely use; save cost; Inexpensive

Lean Pipe Production Line

  • Lean management table
  • Lean Office Furniture
  • Lean pipe assembly line
  • Lean Warehouse shelves
1. Features 1. Using at the places such as assembly line or distribution center,convenient for selection.
2. Upright frame structure, with bearing grider, roller, damping roller, and buffer separator.
3. Aluminum or steel roller rail system.
4. Pallets/Boxes move along in transport channel depending on gravity.
2. Material: Aluminium or steel roller rail
3. Load Capacity (mm): 1000kg at the most.
4. Main Parts Specs(mm): Diameter Specification
PE Pipe Ø28mm 0.8/1.0/1.2/1.5/2.0mm
PVC Pipe Ø28mm 0.8/1.0/1.2mm
ABS Pipe Ø28mm 0.8/1.0/1.2mm
ESD PE Pipe Ø28mm 0.8/1.0/1.2mm
5. Certificates. CE certified, ISO9001,
6. Quick Delivery. Within 15 workdays (negotiable), according to quantity

The Advantages of Coated Pipe:

1. Customers can select the color of their choice. Variety of colors is available.

2. In Cost effective Solution

3. Durable and flexible systems

4. Rust inhibitor is applied to inner surface of the pipes for extended service life.

ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure

Our Services

1. We have professional engineer to do after-sale service if needed.

2. Local service will be done by our local agent if needed.

3. OEM is welcomed or design as customer request.

ESD Black Anti Static Tubing , Plastic Coated Pipe Upright Frame Structure
