36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth
Specifications
Brand Name :
LEADYO
Model Number :
LP36V080
Certification :
UN38.3, CE,MSDS,UKCA
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :
60Mwh
Delivery Time :
15-45 Days
Packaging Details :
UN3480 Standard Export
Type :
lifepo4 battery pack,lithium ion battery ,lithium Iron phosphate battery,deep cycle batteries
Voltage :
36V 36.8V
Capacity :
80Ah
Weight :
30kg

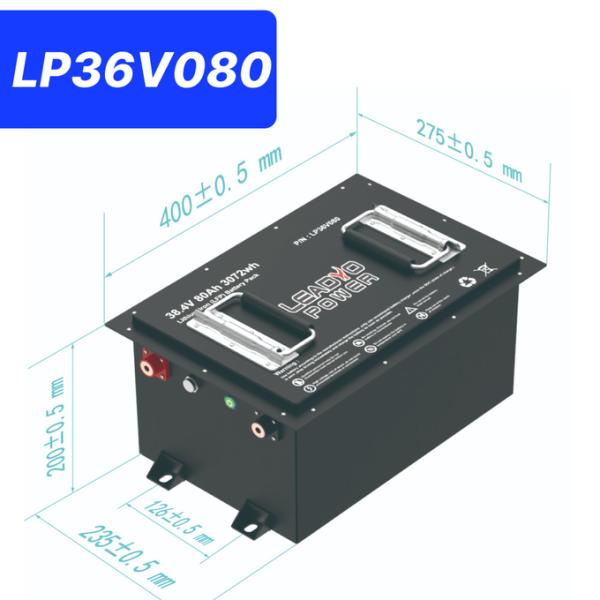

Dimension((L*W*H) :
L400*W275*T200mm
Charging Voltage :
43.8V
High Light :
36V lifepo4 golf cart battery
Cycle :
5000+
Discharge :
150A continuous ,250A/20s
Charge :
0.C-1C
Commnication :
Bluetooth , LCD ,RS232 ,RS485 OR CANBUS
Application :
golf cart
Description

36V 80Ah 36.8V LiFePO4 Golf Cart Battery Pack w/h LCD Display & Bluetooth Monitoring.

Charger ,12V Reducer ,and mounting brackets for optional

Custom the battery pack with your company LOGO.

Custom any voltage and capacity .

Canbus and RS485 can be provided to commnicate with your dashboard.

NO MOQ , 5 Yrs Warranty .

Lithium iron phosphate (LiFePO4) battery packs have gained popularity as a preferred choice for golf carts due to several compelling reasons. Firstly, LiFePO4 batteries offer a higher energy density compared to traditional lead-acid batteries commonly used in golf carts. This means that they can store more energy in a smaller and lighter package, allowing the golf cart to travel longer distances on a single charge.

Specifiaction of 36V 80Ah and 100Ah batteries :

Rated voltage 36V 36V
Capacity (Ah) 80Ah 100Ah
Battery Energy 2944Wh 3680Wh
Self-discharge ≤3% per month at 25 degree ≤3% per month at 25 degree
Cycle life >5000 cycles >5000 cycles
Charge Mode CC/CV CC/CV
Charge Cut-off Voltage 43.8V 43.8V
Recommended Charge Current 10A-25A 10A-50A
Max. Continuous Charge Current 50A 100A
Max. Continuous Discharge Current 150A 200A
Max. Pulse Current 180A 120S 220A 120S
250A/20S 400A/20S
Discharge Cut-off Voltage 26.4V 26.4V
Communication mode UART/RS485/CAN UART/RS485/CAN
Storage temperature 0~45℃ 0~45℃
Working Environment 0℃~+55℃(Charge) 0℃~+55℃(Charge)
-20℃~+65℃(Discharge) -20℃~+65℃(Discharge)
Housing Material Metal case Metal case
Bluetooth 5.0 Yes Yes
Display Screen Optional Yes
Touch display Optional Optional
OEM & ODM Yes Yes
Dimension (mm) 400*275*200mm 424*356*180mm
Weight 66.0lbs.(30kg) 77.16lbs.(35kg)

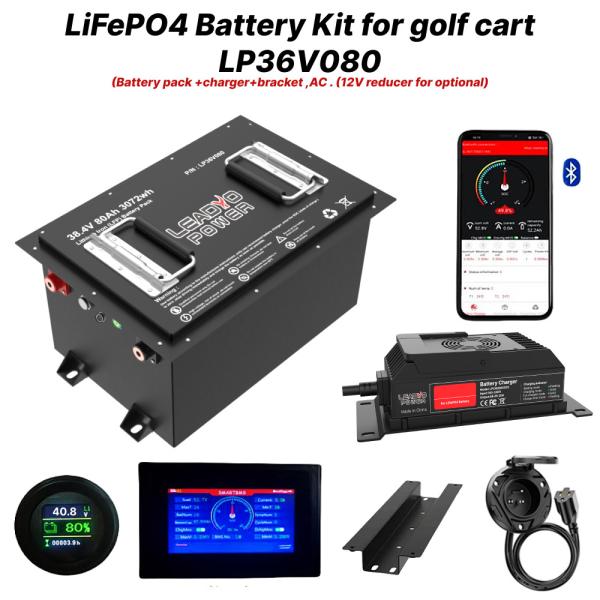

1 X 36.8V 80Ah Battery Pack including round LCD display and Bluetooth (Touch display is optional )

( RS485 or Canbus com can be provided )

1 X Charger 20A

1 X AC Plug

(12V reducer for optional, and mounting brackets can be provided )

36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth

36V 80Ah 150Amp (36.8V) Bluetooth LiFePO4 Lithium Golf Cart Battery w/h LCD Display & Bluetooth

FAQ

1. Do you provide OEM/ODM service ?

Yes ,can customized your brand battery

2.Do you have MOQ requests?

NO ,We don't have.

3.When you delivery order?

Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.May i get the golf cart lifepo4 battery with different capacity and voltage ?

Yes,please contact us.

6.How to get a quote?

Please contact us,leadyo@leadyo-battery.com
