48V 150Ah 51.2V LiFePO4 Lithium Golf Cart Battery Conversion Kit 250Amp continuou output ,520A/20S
48V 150Ah 51.2V LiFePO4 Lithium Golf Cart Battery Conversion Kit 250Amp continuou output ,520A/20S
48V 150Ah 51.2V LiFePO4 Lithium Golf Cart Battery Conversion Kit 250Amp continuou output ,520A/20S
48V 150Ah 51.2V LiFePO4 Lithium Golf Cart Battery Conversion Kit 250Amp continuou output ,520A/20S
Specifications
Brand Name :
LEADYO
Model Number :
LP48V150 kit
Certification :
UN38.3, CE,MSDS,UKCA
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :
60Mwh
Delivery Time :
15-45 Days
Packaging Details :
UN3480 Standard Export
Type :
lifepo4 battery pack,lithium ion battery ,lithium Iron phosphate battery,deep cycle batteries
Voltage :
48V 51.2V
Capacity :
150Ah
Weight :
68kg
Dimension((L*W*H) :
L680*W316*T217mm
Charging Voltage :
57.6V
High Light :
48V lifepo4 golf cart battery
Cycle :
5000+
Discharge :
250A continuous ,520A/20s
Charge :
0.C-1C
Commnication :
Bluetooth , LCD ,RS232 ,RS485 OR CANBUS
Application :
golf cart
Description

48V 150Ah 51.2V LiFePO4 Golf Cart Battery, 250A BMS, 4000+ Cycles Lithium Battery, Max 12.8kW Power

Lithium iron phosphate (LiFePO4) battery packs have gained popularity as a preferred choice for golf carts due to several compelling reasons. Firstly, LiFePO4 batteries offer a higher energy density compared to traditional lead-acid batteries commonly used in golf carts. This means that they can store more energy in a smaller and lighter package, allowing the golf cart to travel longer distances on a single charge.

Specifiaction of 105Ah and 150Ah batteries :

Rated voltage 48V 48V
Capacity (Ah) 105Ah 150Ah
Battery Energy 5376Wh 7680Wh
Self-discharge ≤3% per month at 25 ≤3% per month at 25
Cycle life >5000 cycles >5000 cycles
Charge Mode CC/CV CC/CV
Charge Cut-off Voltage 58.4V 58.4V
Recommended Charge Current 10A-50A 30A-75A
Max. Continuous Charge Current 150A 150A
Max. Continuous Discharge Current 250A 250A
Max. Pulse Current 260A 120S 300A 120S
520A/20S 520A/20S
Discharge Cut-off Voltage 40V 40V
Communication mode UART/RS485/CAN UART/RS485/CAN
Storage temperature 0~45℃ 0~45℃
Working Environment 0℃~+55℃(Charge) 0℃~+55℃(Charge)
-20℃~+65℃(Discharge) -20℃~+65℃(Discharge)
Housing Material Metal case Metal case
Bluetooth 5.0 Yes Yes
Display Screen Optional Yes
Touch display Optional Optional
OEM & ODM Yes Yes

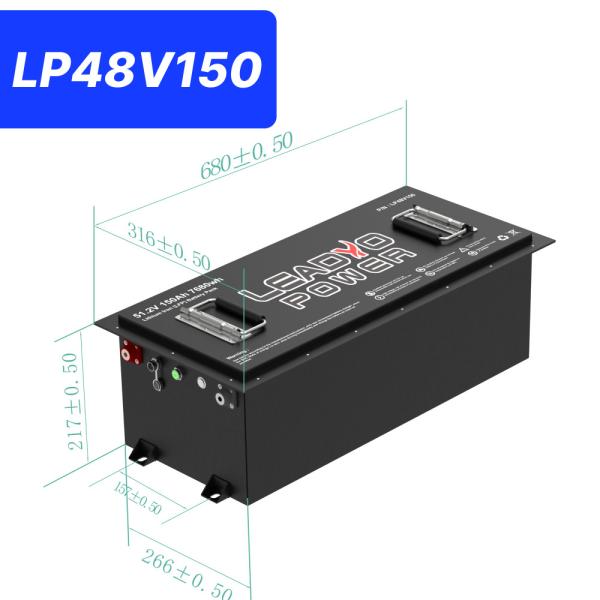

Dimension (mm) 385*325*245 860*316*217
Weight 99.20lbs.(45kg) 163.13lbs.(68kg)

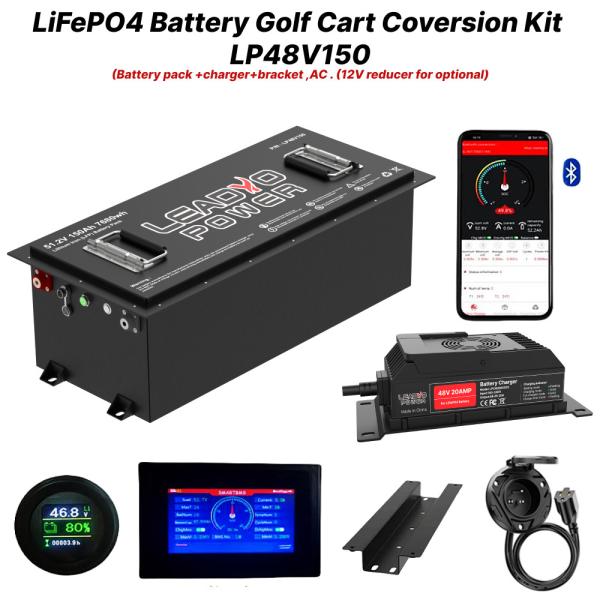

1 X 51.2V 150Ah Battery Pack including round LCD display and Bluetooth (Touch display is optional )

( RS485 or Canbus com can be provided )

1 X Charger 20A

1 X AC Plug

(12V reducer for optional, and mounting brackets can be provided )

48V 150Ah 51.2V LiFePO4 Lithium Golf Cart Battery Conversion Kit 250Amp continuou output ,520A/20S

48V 150Ah 51.2V LiFePO4 Lithium Golf Cart Battery Conversion Kit 250Amp continuou output ,520A/20S

FAQ

1. Do you provide OEM/ODM service ?

Yes ,can customized your brand battery

2.Do you have MOQ requests?

NO ,We don't have.

3.When you delivery order?

Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.May i get the golf cart lifepo4 battery with different capacity and voltage ?

Yes,please contact us.

6.How to get a quote?

Please contact us,leadyo@leadyo-battery.com
