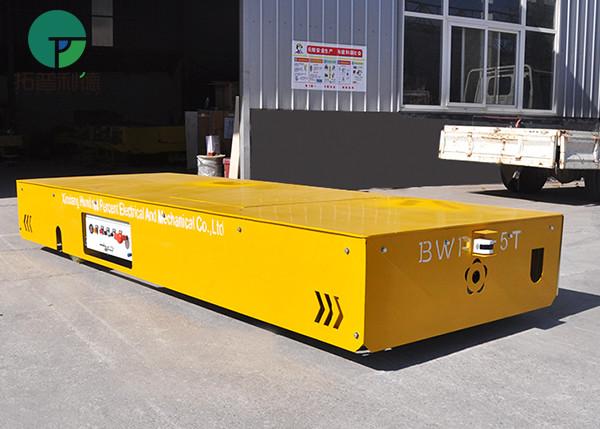

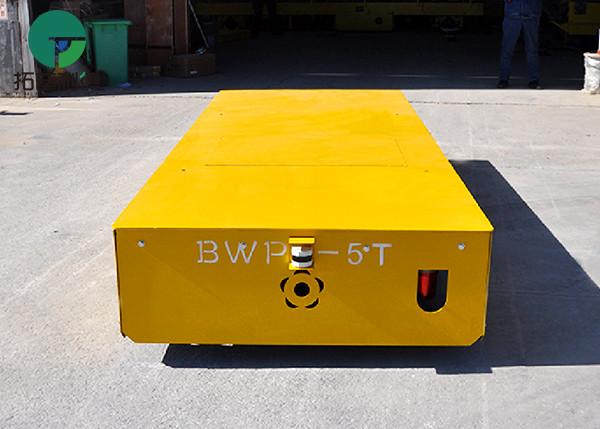

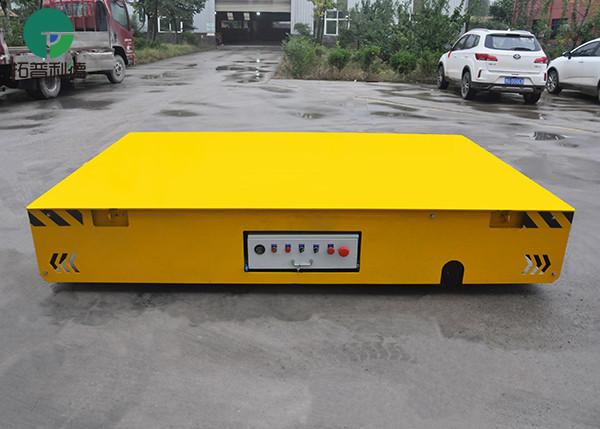

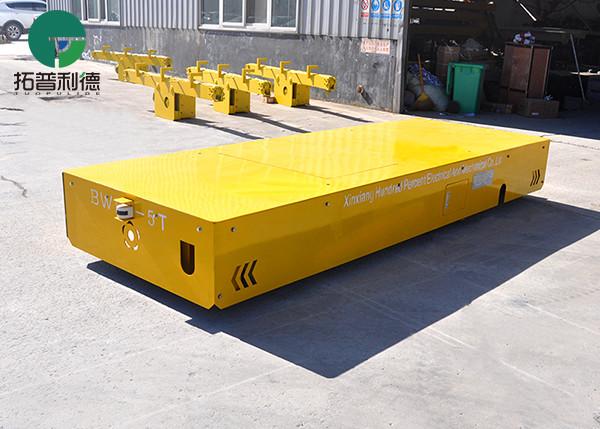

Custom remote control trackless electric material handling cart
Custom remote control trackless electric material handling cart
Custom remote control trackless electric material handling cart
Custom remote control trackless electric material handling cart
Custom remote control trackless electric material handling cart
Custom remote control trackless electric material handling cart
Custom remote control trackless electric material handling cart
Custom remote control trackless electric material handling cart
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after your prepayment
Packaging Details :
The whole transfer cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Custom remote control trackless electric material handling cart
Power supply :
Battery power
Material :
steel
Load capacity :
1-100T
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description

Custom remote control trackless electric material handling cart

BWP Working principle

The trackless battery platform transfer vehicle is powered by a battery, and the battery supplies power to the DC motor through the electrical control system. Then the reducer drives the wheels of the flatbed to start, stop, advance and retreat, and the speed can be adjusted at the same time. Used to transport heavy goods or equipment from one place to another in factories, it can be used indoors or outdoors, fields include metallurgy, foundry, new plant construction and shipbuilding, etc. The battery is installed on a trackless platform and equipped with it Smart Charger.


Custom remote control trackless electric material handling cart


BWP Details


Custom remote control trackless electric material handling cart


BWP Application

Steel parts handling trailers are mainly used in assembly lines (ring production lines, annular production lines), metallurgical
Industry (ladle), warehousing and transportation, shipbuilding industry (maintenance, assembly, container transportation), workshop workpiece transportation, lathe transportation, steel mills (bill, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple construction) , concrete, concrete columns), petroleum industry (oil pumps, sucker rods and parts), energy (polysilicon, generators, windmills), chemical industry (electrolyzers, distillation tanks), etc.


Custom remote control trackless electric material handling cart


BWP Technical Parameters

Model BWP-30T
Rated Load(t) 30t
Impacted rated load(t) 32
structure of frame steel plates welded beam structure
Thickness of the steel plate 12
Cart weight(t) 6
Wheel load(t) 7.7
Ground requirement cement ground
Table size(mm) 5000x2200
Height of the whole cart(mm) 650
Space from the ground(mm) 50
Wheels distance 1700
Axles distance 4300
Turning radius(mm) 4300
Turning type turning while driving without stop
Control method for turning control button
Turning structure mechanical
Wheel diameter Ф400/4
Wheel quality polyurethane wheels
Running speed(m/min) 0-12
Brake principle electric magnetic force
Operation method with wire or no wire
Charger motor's installation installed on cart
Function of charger motor automatic charging
Warning equipment sound and light lamp


BWP Manufacturing


Custom remote control trackless electric material handling cart

Our factory

Custom remote control trackless electric material handling cart


BWP Delivery


Custom remote control trackless electric material handling cart


Customer visit in our factory from world wide

Custom remote control trackless electric material handling cart


After-sale service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

  • Custom remote control trackless electric material handling cart
