Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$3000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Material Handling Transfer Cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Hot Product Electric Steerable 3 Tons Construction Site Battery Transfer Cart
Power supply :
Battery power
Key Words :
steerable trackless transfer cart
Load capacity :
1-500 ton
Running speed :
0-20m/min
Application :
Factory ,warehouse and working line
Warranty :
1 year
Color :
customized
Description

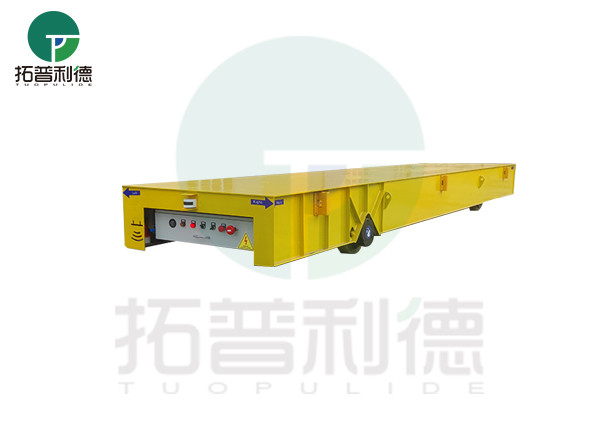

Hot Product Electric Steerable 3 Tons Construction Site Battery Transfer Cart

The BWP series hot product electric steerable 3 tons construction site battery transfer cart is powered by the battery to provide power for the electrical system, thereby providing power for the motor, driving the reducer to amplify the torque to provide transmission force to the transmission system, and realizing the operation of the trolley forward, backward, turning, starting, stopping, etc.

Hot Product Electric Steerable 3 Tons Construction Site Battery Transfer Cart

Parts Details

Hot Product Electric Steerable 3 Tons Construction Site Battery Transfer Cart

Product Features

1. The difference between the trackless electric transfer cart and the many rail electric flatbed carts in the market is that it does not use rails, and customers do not need to lay tracks. It can be used like a trolley in warehouses, workshops, etc. The operator holds the remote control in his hand and can operate it. Remotes are wired and wireless. You can adjust the speed, you can go forward and backward, and you can turn. If the operator is distracted when operating, and there is an obstacle in front of the trackless electric transfer cart, don't worry, the trtrackless electric transfer cart will automatically stop running when it is one or two meters away from the obstacle.

2. Using the trackless electric steel plate flatbed cart, the customer can save all the cost of laying the track, and at the same time save the precious space occupied by the special track laying. Another advantage is that after the customer buys it, it can be used after unloading the trackless electric transfer cart.

3. The trackless electric steel flatbed truck is gradually being adopted by the majority of customers with its flexible and reliable operation mode. The trackless electric transfer cart is the development trend of the steel trackless electric transfer cart.

Optional Accessories

1. The load capacity, table size can be customized according to customer needs;
2. O
ptional explosion-proof, high temperature requirements.
3. Optional automatic stop and limit limit device when encountering people;
4. Optional on-board operation, fixed point operation, radio remote control, etc.
5. Optional frequency converter stepless speed regulation.

Hot Product Electric Steerable 3 Tons Construction Site Battery Transfer Cart

Shipping

Hot Product Electric Steerable 3 Tons Construction Site Battery Transfer Cart

Parameter List

Model
BWP-2T BWP-10T BWP-20T BWP-30T BWP-50T BWP-100T
Rated load (T) 2 10 20 30 50 100
Table size length(L) 2000 2300 2400 3500 5500 6600
Width(W) 1500 2000 2200 2200 2600 3000
Height(H) 450 500 600 700 800 1200
Wheel Base (mm) 1080 1650 2800 1650 2000 2000
Axle Base (mm) 1380 1850 1435 2700 2850 4000
Wheel Diameter(mm) Φ250 Φ400 Φ350 Φ450 Φ600 Φ600
Wheel Quantity(Nos) 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75
Running speed (m/min) 0-25 0-25 0-20 0-20 0-20 0-18
Motor Power (Kw) 2*1.2 2*2.2 2*4.5 2*5.5 2*7.5 40
Battery Capacity(Ah) 250 250 400 450 500 1000
Battery Voltage(V) 24 48 48 48 72 72
Running Time When Full Load 2.5 2.8 2.2 2 2.5 1.9
Running Distance for one Charge(Km) 3 3.4 2.7 2.4 3 2.3
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 190
Reference Weight (t) 2.3 4.2 5.9 6.8 8 26.8
