Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Specifications
Brand Name :
Topleader
Model Number :
BWP
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$7000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
50 days after your prepayment
Packaging Details :
The whole transfer cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Warehouse 2 Ton Battery Operated Steerable Transfer Cart
Power supply :
Storage battery
Load capacity :
1-1500T
Running speed :
0-20m/min
Application :
Factory ,warehouse and industry
Warranty :
1 year
Color :
customized
OEM :
Accepted
Keywords :
2 ton battery operated steerable transfer cart
Description

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart

Product Introduction

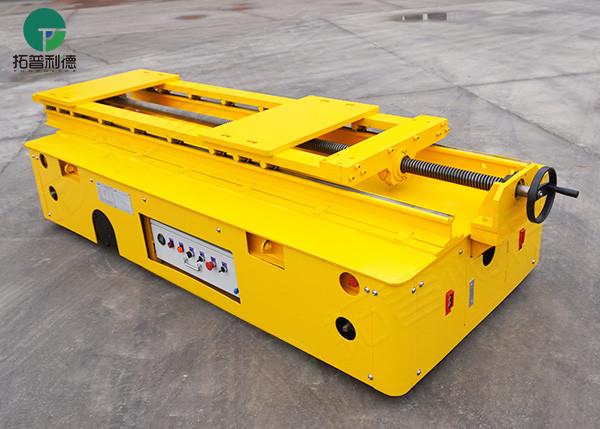

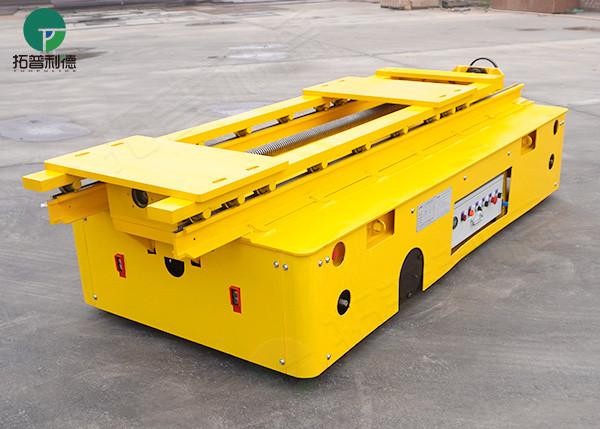

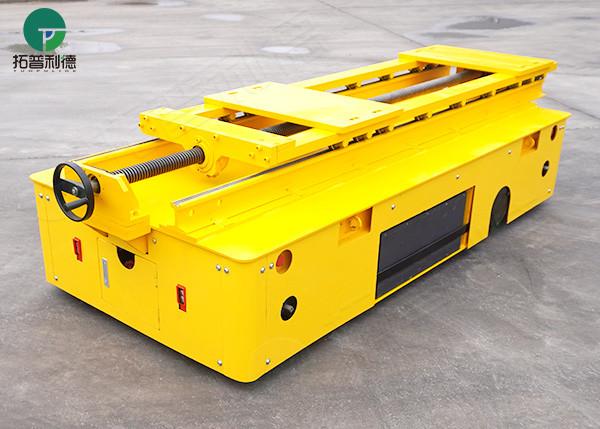

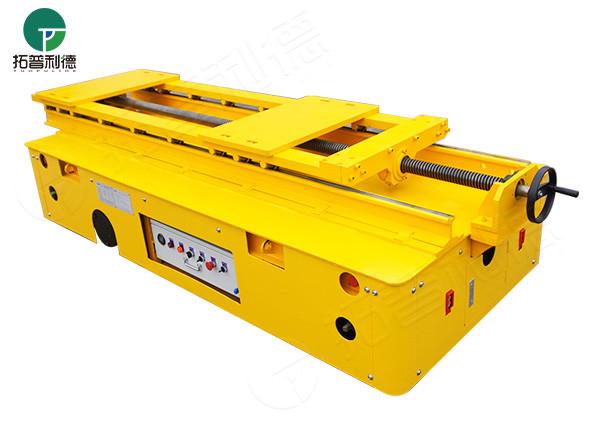

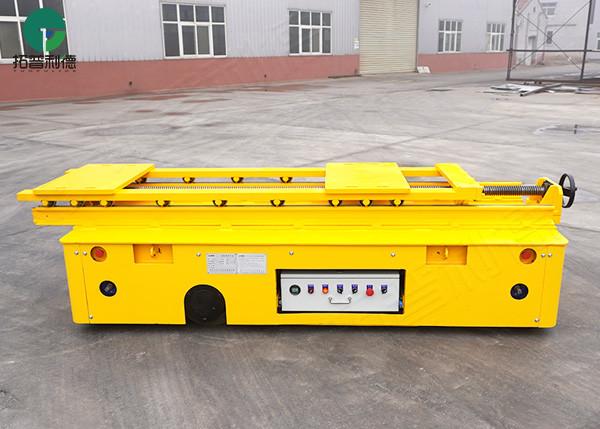

The steerable motor trolley wheel drive 10tone transfer cart is powered by lithium battery, which is used in production line. The load capacity of the transfer cart is 10 tons. The table size of electric cart is 2740mm*1200mm*515mm. The device on the counter are specially made. By turning the steering wheel, to adjust the table device expansion. Trackless electric flat cart can run in all directions, not limited by distance. Battery life is related to the frequency of use.

Transfer cart power supply mode, running track, table size and device are customized according to the exact needs of customers. We have a professional technical team and years of custom experience, excellent reputation.


Steerable Motor Trolley Wheel Drive 10tone Transfer Cart

Parts Details

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart


Application

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart


Technical Parameters

Model BWP-2T BWP-5T BWP-10T BWP-15T BWP-20T BWP-25T BWP-30T BWP-40T BWP-50T BWP-60T BWP-70T BWP-80T BWP-100
Rated load(t) 2 5 10 15 20 25 30 40 50 60 70 80 100
Table Size Length(L) 2000 2200 2300 2400 2400 3500 3500 5000 5500 5600 6000 6500 6600
Width(W) 1500 2000 2000 2100 2200 2200 2200 2500 2600 2500 2600 2800 3000
Heigth(H) 450 500 550 600 600 700 700 800 800 850 900 950 1200
Wheel Base(mm) 1080 1650 1650 1600 1650 1650 1650 2000 2000 1800 1850 1950 2000
Axle Base(mm) 1380 1680 1700 1830 1850 2700 2700 3600 2850 2900 3500 3500 4000
Wheel Dia.(mm) Φ250 Φ300 Φ350 Φ400 Φ400 Φ450 Φ450 Φ500 Φ600 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 6 6 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 2*1.2 2*1.5 2*2.2 2*3.5 2*4.5 2*5.5 2*5.5 2*6.3 2*7.5 2*10 2*12 30 40
Batter Capacity(Ah) 250 180 250 330 400 400 450 440 500 600 600 800 1000
Battery Voltage(V) 24 48 48 48 48 48 48 72 72 72 72 72 72
Running Time When Full Load 2.5 2.88 2.8 2.3 2.2 1.8 2 2.6 2.5 2.2 1.8 2 1.9
Running Distance for One Charge(Km) 3 3.5 3.4 2.8 2.7 2.2 2.4 3.2 3 2.7 2.2 2.4 2.3
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 152 185 190
Reference Wight(t) 2.3 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

Advantages

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart


Production Process


Steerable Motor Trolley Wheel Drive 10tone Transfer Cart

Packing&Shipping


Steerable Motor Trolley Wheel Drive 10tone Transfer Cart

Our Company

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
Steerable Motor Trolley Wheel Drive 10tone Transfer Cart

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart

Steerable Motor Trolley Wheel Drive 10tone Transfer Cart


After-sale Service

  • Steerable Motor Trolley Wheel Drive 10tone Transfer Cart
