Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1 set
Price :
$2500-$6000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole Steel Coil Handling Electric Flat Car will be packed by the tarp, the parts will be packed by polywood case.
Product name :
V-Block Battery Operated Steel Coil Trailers
Key Words :
coil transfer trolley
Load capacity :
1-1500T
Running speed :
0-20m/min
Application :
Factory and warehouse for aluminum coil handling cart
Warranty :
2 years
Color :
Customized
OEM :
Accepted
Description

V-Block Battery Operated Steel Coil Trailers

Introduction

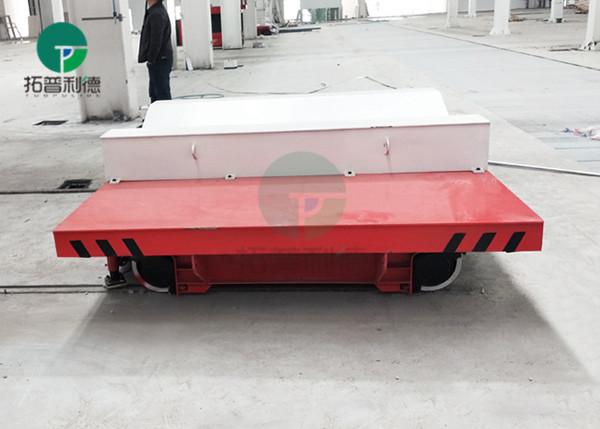

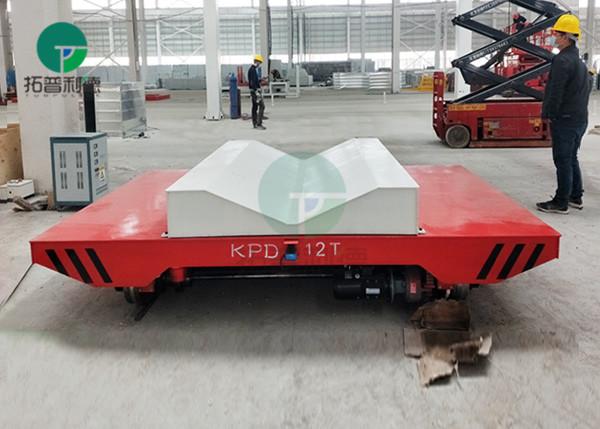

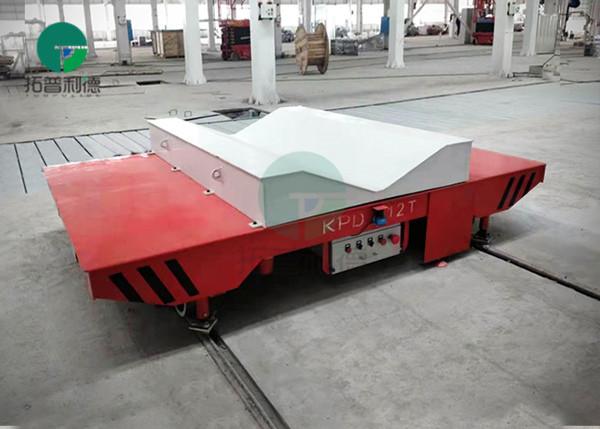

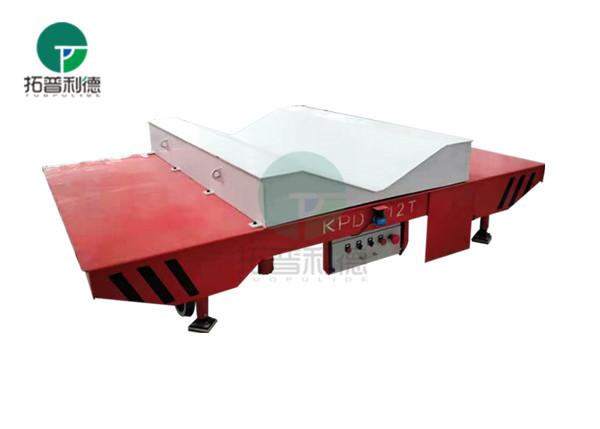

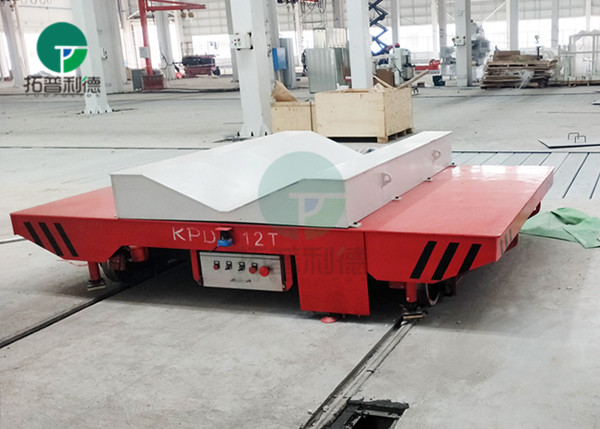

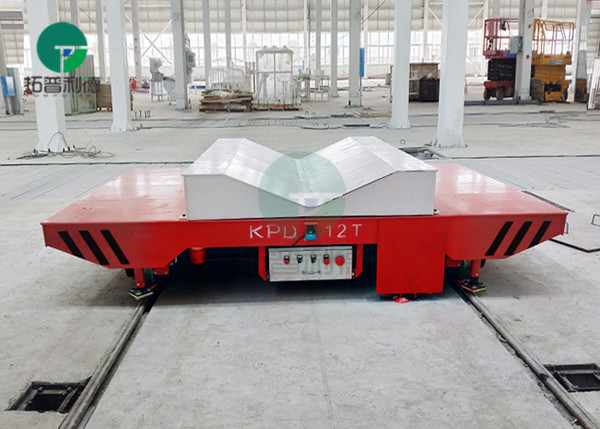

Steel coil trailers is a kind of material transportation equipment specially customized for the transport of coil. V-shaped device or U-shaped device is installed on the platform of the transfer cart. This shape structure is conducive to maintaining the stable state of the coil in the running process of the battery operated trolley, and it is not easy to fall.

In addition, because the wheels of this electric flat car are made of cast steel,track needs to be laid in the working area to avoid the wear and tear caused by the wheels driving directly on the ground.

This coil transport cars is powered by battery (lithium battery is optional), which is environmentally friendly and efficient. We can also install a series of safety protection devices according to the needs of customers.

If you have a material handling need and are hesitant about which handling equipment to buy, please contact us. We have professional technicians to design the most suitable program for you.

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

V-block battery operated steel coil trailersV-block battery operated steel coil trailers

Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

Product Details

V-block battery operated steel coil trailers

Parameter List

Model

KPX-5T

KPX-10T

KPX-20T

KPX-30T

KPX-50T

KPX-100T

KPX-150T

Rated load (T)

5

10

20

30

50

100

150

Table size(mm)

length

3500

3600

4000

4500

5500

6500

10000

Width

2000

2000

2200

2200

2500

2800

3000

Height

500

500

550

600

650

900

1200

Wheel Base (mm)

2500

2600

2800

3200

4200

4900

7000

Rail Inner Gauge (mm)

1435

1435

1435

1435

1435

2000

2000

Wheel Diameter(mm)

Φ300

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Wheel Quantity(Nos)

4

4

4

4

4

4

8

Ground Clearance (mm)

50

50

50

50

50

75

75

Motor Power (Kw)

1.2

1.6

2.2

3.5

5

10

15

Battery Capacity (Ah)

180

160

180

250

330

440

600

Battery Voltage (V)

36

48

48

48

48

72

72

Running speed (m/min)

0-30

0-25

0-25

0-25

0-20

0-20

0-18

Running Time When Full Load(Hours)

5.4

4.8

4

3.5

3.3

3.2

3.2

Running Distance for One Charge(Km)

8.1

7.2

4.8

4.2

4

3.8

3.2

Max Wheel Load (KN)

25.8

42.6

77.7

110.4

174

343.8

265.2

Reference Weight (t)

3.6

4.2

5.9

6.8

8

14.5

26.8

Recommended Rail Model

P18

P18

P24

P38

P43

QU100

QU100
