Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Specifications
Brand Name :
Topleader
Model Number :
KPX
Certification :
CE,ISO9000,SGS
Place of Origin :
China
MOQ :
1 set
Price :
$5000-$12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets/year
Delivery Time :
30-40 days after receive your prepayment
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Product name :
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Power supply :
Battery powered
Material :
Q235
Load capacity :
50t
Running speed :
0-20m/min
Application :
workshop, warehouse, inplant
Warranty :
1 year
Color :
customized
OEM :
Accepted
Description
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant

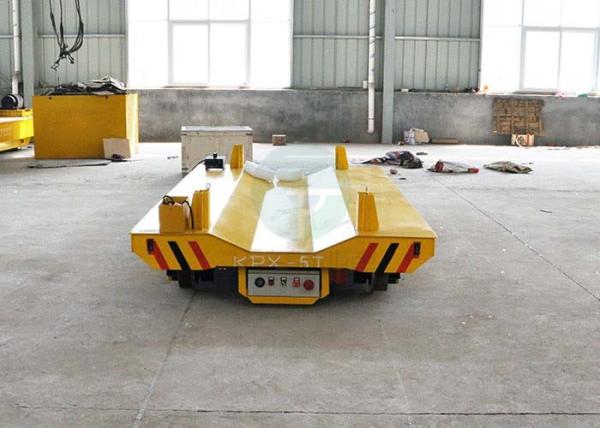

Brief Introduction - Railroad electric trailer dolly
Railroad electric trailer dolly are battery powered. It can be used both on the “S” and arc-shaped railways. The KPX series are more safe and flexible and running distance is not limited. It has no strict requirement for the construction of the railway. Motorized transfer trolley is suitable to be used in the long distance transportation, and it is a great solution of industry heavy materials handling.
Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
Advantages - Railroad electric trailer dolly
  • Box girder, two longitudinal girder and several beams, not easy to deform
  • Convenient loading and unloading: forklift hole and hoisting hole for convenient loading and unloading on the port and client site
  • Proetction device: Steel plate to protect the electrical box
  • For convenient to replace the battery, we design the push pull battery installation way

Working principle - Railroad electric trailer dolly
KPX SeriesRailroad electric trailer dolly are battery powered. The battery are installed in the carts. The battery supplies electricity to the DC motor through the electrical control system. We use this principle to make the car start, stop, move forward, move backward, adjust the speed etc.

Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant

Application - Railroad electric trailer dolly
Railroad electric trailer dolly is applied to transfer steel ladles or steel scrap ladle in steel factory and meturallgy plant. Generally the load capacity is large, can reach to 150 tons. It is commonly applied in steel plant, mechallurgy industry, aluminum factory, plastic pipes factory, etc. to transfer rounded material, from producing line to store.

Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant

Parameters - Railroad electric trailer dolly
Model KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPJ-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100
Packing & Delivery - Railroad electric trailer dolly
The 4 wheel electric car will be packed by the tarp, the parts will be packed by polywood case.

Railroad electric trailer dolly capacity 1-300 t for India Hot Roll plant
