CaF₂ Crystal Optical Crystal Materials High Transmittance
CaF₂ Crystal Optical Crystal Materials High Transmittance
Specifications
Brand Name :
Leading Crystal
Certification :
ISO
Place of Origin :
China
Cleavage plane :
(111)
Crystal :
Cubic
Common crystal direction :
[111] 、[100]、[110]
Melting point (° C) :
1420
Transmission Range (μm) :
0.13 ~ 10
Transmittance :
>94% @0.193 μm ~ 7.87 μm
Density (g/cm³ )    :
3.18
Thermal Conductivity (W/(m·K)) :
9.71 @293 K
Description

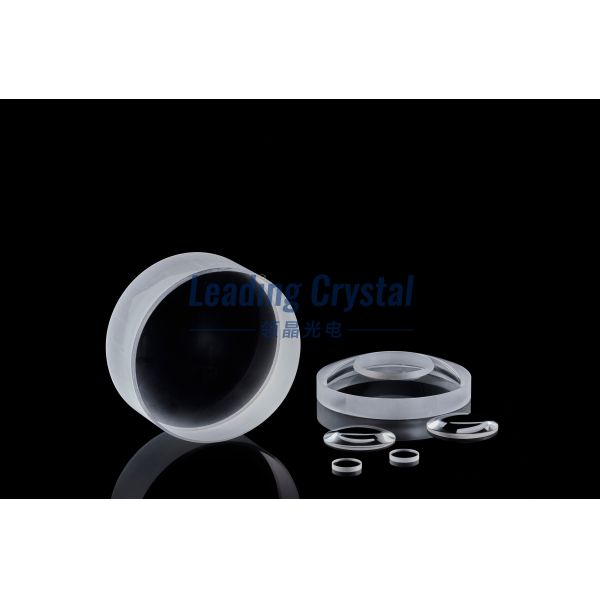

CaF₂ crystal Optical crystal materials High transmittance


CaF₂ crystals have a wide optical transmission range (good light transmission performance in the wavelength range of 0.13μm~10μm), low stress birefringence (no obvious intrinsic birefringence above 200 nm), which is a material for making various optical window prisms and lenses.


Main advantages

  • High hardness and corrosion resistance
  • High optical transmittance and low scattering rate
  • Good mechanical and chemical stability




Main application fields

  • Optical Lens: Optical instrument manufacturing, laser technology application, optical material manufacturing,etc.
  • Laser resonator mirror: Laser manufacturing, laser application, etc.
  • Optical coating material: Optical component manufacturing, optical coating services and other industries
  • The protective window of infrared sensor: Infrared sensor manufacturing, infrared thermal imager manufacturing, etc.


We can provide

  • Visible, infrared, ultraviolet calcium fluoride crystal materials
  • The maximum crystal size can reach ∅200 mm×90 mm
  • Processable products include optical windows, flat plates and any shapes required by customers
