PCB Lead-Free Wave Solder Machine

Usage

Wave soldering machine is a welding equipment for electronic products, and it

is also a necessary production equipment for electronic product manufacturers.

The wave soldering machine is made by inserting electronic components into the

circuit board and welding with the circuit board.

Specifications

Features

1. Automatic power system, frequency converter control, automatic board input system.

2. Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic

cylinders and PLC control, accurate and reliable.

3. Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

4. Lead-free solder furnace with independent design, environmental protection and safety, easy to clean.

5. Preheating system uses three independent temperature control so that ensure the excellent

heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

6. Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7. Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design,

simple operation, convenient maintenance.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating(IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

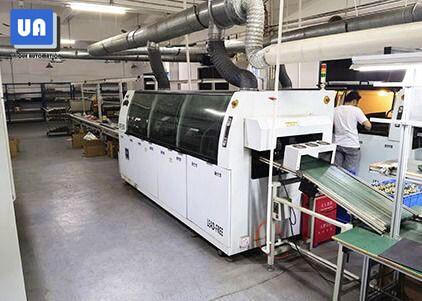

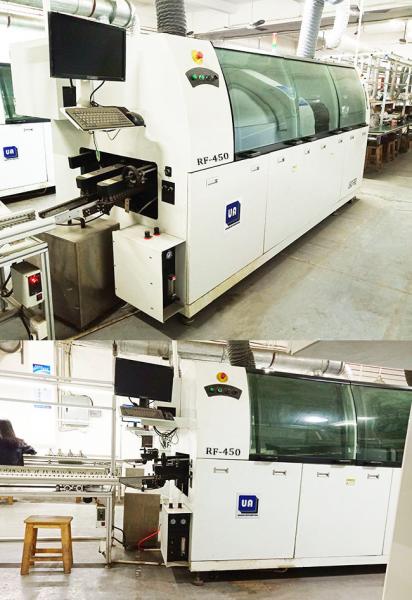

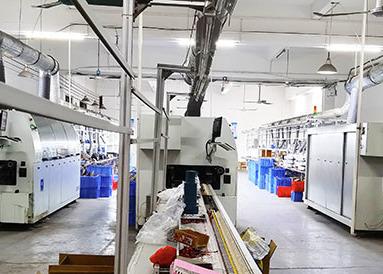

Pictures Showing

Installation Drawing

Package and Shipping

FAQ

Q1: Are you a trade company or manufacturer ?

We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.

OEM & ODM service are available.

Q2 : What is your payment terms?

T/T, L/C, etc

Q3: What’s your terms of packing ?

We usually adopt this method : internal vacuum packing and outer wooden packing.

Or according to your requirement.

Q4 : What is your delivery date?

The delivery date is about 20-30 working days after receive the payment.
