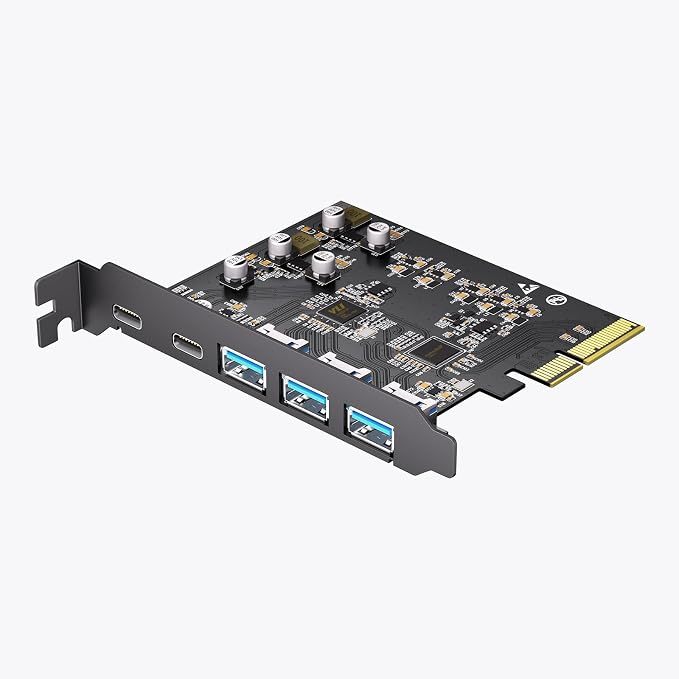

5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A
5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A
5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A
5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A
5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A
5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A
Specifications
Certification :
CE / Rohs / FCC
Functionality :
Data Transfer Only (No Video Support)
Model Number :
PCIe2
Color :
Black
Price :
Factory Price
Power Supply :
PCIe slot power + Optional SATA 15-Pin backup power (5V/3A 15W per port)
Supply Ability :
50K
Main Chipset :
ASMedia ASM3142
Output Ports :
2 x USB-C (Type-C) +3x USB-A Ports
MOQ :
50
Delivery Time :
5 - 30 days
Host Interface / PCIe Slot Support :
PCIe 3.0 x4 (Compatible with PCIe x4 / x8 / x16 Slots)
Total Bandwidth :
10 Gbps (USB 3.2 Gen 2)
Payment Terms :
TT
Output Ports & Quantity :
2 x USB-C (Type-C) Ports
Data Transfer Speed :
Up to 10Gbps total bandwidth (10Gbps single port; 5Gbps per port when both active)
Place of Origin :
China
Total Bandwidth / Speed :
10 Gbps (USB 3.2 Gen 2）
Brand Name :
LDLRUI / ODM
Main Chipset / IC Solution :
ASMedia ASM3142
Packaging Details :
Customized Packaging
Host Interface :
PCIe 3.0 x4 (Compatible with PCIe x4 / x8 / x16 Slots)
Description
5 Port USB PCIe Card 2 USB C And 3 USB A 10Gbps USB 3 2 Gen 2 PCIe 3 0 X4 Expansion Card Data Only For Desktop PC External SSDs Windows
Expand your desktop PC with 5 additional high-speed USB ports, including 2 USB-C and 3 USB-A ports. Supports USB 3.2 Gen 2 with up to 10Gbps shared bandwidth for optimal data transfer performance.
5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A 5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A 5 Port PCIe USB Expansion Card Data Transfer USB PCIe Card 10Gbps 2 USB C And 3 USB A
Key Features
  • 10Gbps High-Speed USB Expansion: Expand your desktop PC with 5 additional USB ports, including 2 USB-C and 3 USB-A. Supports USB 3.2 Gen 2 with up to 10Gbps shared bandwidth. A single high-speed device such as an external SSD can reach up to 10Gbps under ideal conditions.
  • Stable PCIe 3.0 x4 Performance: Built with a PCI Express 3.0 x4 interface for reliable high-speed bandwidth and stable multi-device connections. Ideal for VR headsets, webcams, audio interfaces, keyboards, capture devices and other USB peripherals.
  • Designed for Gaming & Workstation Setups: Perfect for gaming PCs, creator setups and office workstations that require additional high-speed USB connectivity. Expand your system without relying on unstable USB hubs or limited motherboard USB ports.
Technical Specifications
Interface PCI Express 3.0 x4
USB Ports 2 x USB-C, 3 x USB-A
Data Speed USB 3.2 Gen 2 (10Gbps)
Compatibility Windows -11/10/8/7
Power Output Standard 5V/3A per port
Installation & Compatibility Notes
  • Windows Compatibility: Supports Windows -11/10/8/7. Plug-and-play for Windows- 11/10/8, while Windows -7 requires driver installation assistance through customer support.
  • Physical Compatibility: Due to the 5-port layout, this card may not fit Mini-ITX or small form factor (SFF) PC cases.
  • Functionality: Supports high-speed data transmission and standard 5V/3A power output for connected USB devices. Does not support video output, DisplayPort Alt Mode, Thunderbolt protocol or laptop charging.
36-Month Warranty: Backed by a comprehensive 36-month warranty and responsive customer support for complete peace of mind.
