Specifications
Model Number :
TC-150
Hot Stamping Cylinder :
Bore 80mm, Stroke 75mm
Price :
US $ 2680 / set
Worktable Size :
350mm × 220mm
Delivery Time :
35days
Total Power :
2000W
Certification :
CE
Effective Stamping Area :
150mm * 150mm
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Power Supply :
220V / 50Hz
MOQ :
1set
Packaging Details :
WOODEN CASE
Worktable Stroke :
200mm
Required Air Pressure :
0.4~0.6 MPa
Place of Origin :
China
Heating Power :
1600W
Machine Dimensions :
1300 * 750 * 1800mm
Brand Name :
LC
Model :
TC-150
Description

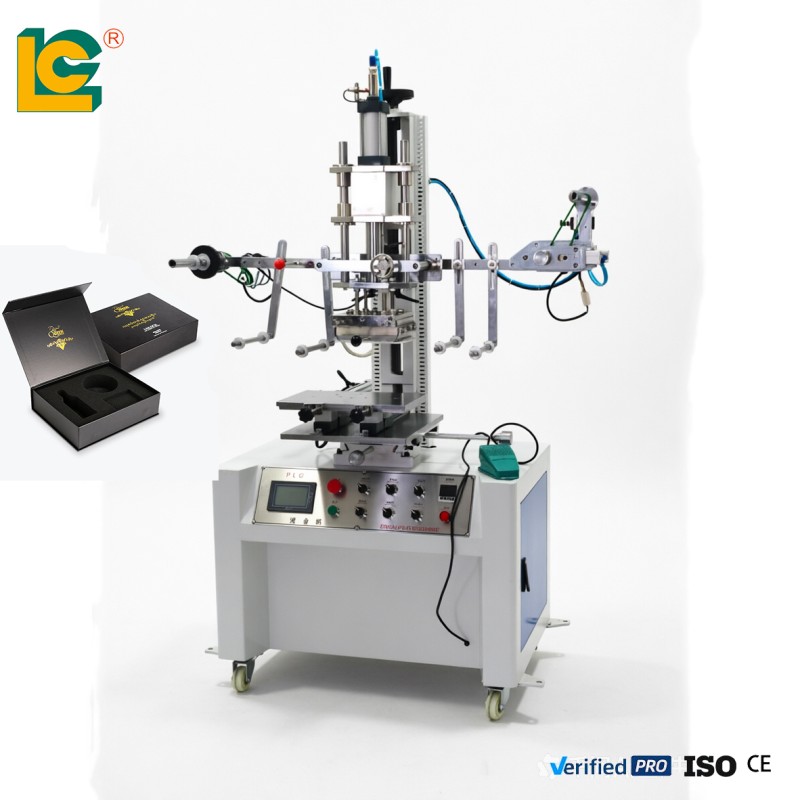

Semi-automatic Flat Hot Stamping Machine with Push-pull Worktable

Semi-automatic Push-pull Worktable Flat Hot Stamping Machine

This machine features an integrated PLC and touch screen control system. It is equipped with independent feeding and discharging worktables, as well as a servo-driven tension foil unwinding and rewinding system. It is ideal for hot stamping (gold/silver) and embossing processes on flat plastic, paper, leather, and hardware products.

Key Features:

  • Tension Control System: Equipped with a tension buffering device, the foil feeding tension is continuously adjustable. Features a fully automatic servo-driven paper collection mechanism. Foil length and step distance can be easily set via the touch screen.
  • Smart Control System: Controlled by a PLC with a user-friendly HMI touch screen. It can store multiple sets of stamping parameters, including temperature, stamping delay, worktable feed/retract speed, and foil length.
  • Push-Pull Worktable: An automatic feeding and discharging platform that replaces manual loading/unloading. It ensures precise positioning while significantly reducing the risk of operator burns.
  • Constant Temperature Heating Module: Features a digital PID intelligent temperature control system. The temperature can be freely set between 0~399℃ with a high precision of ±2℃.
  • Foil Feeding Assembly: An integrated structure combining unwinding, tension adjustment, and servo rewinding. It accommodates hot stamping foils of various widths without deviation or film breakage.

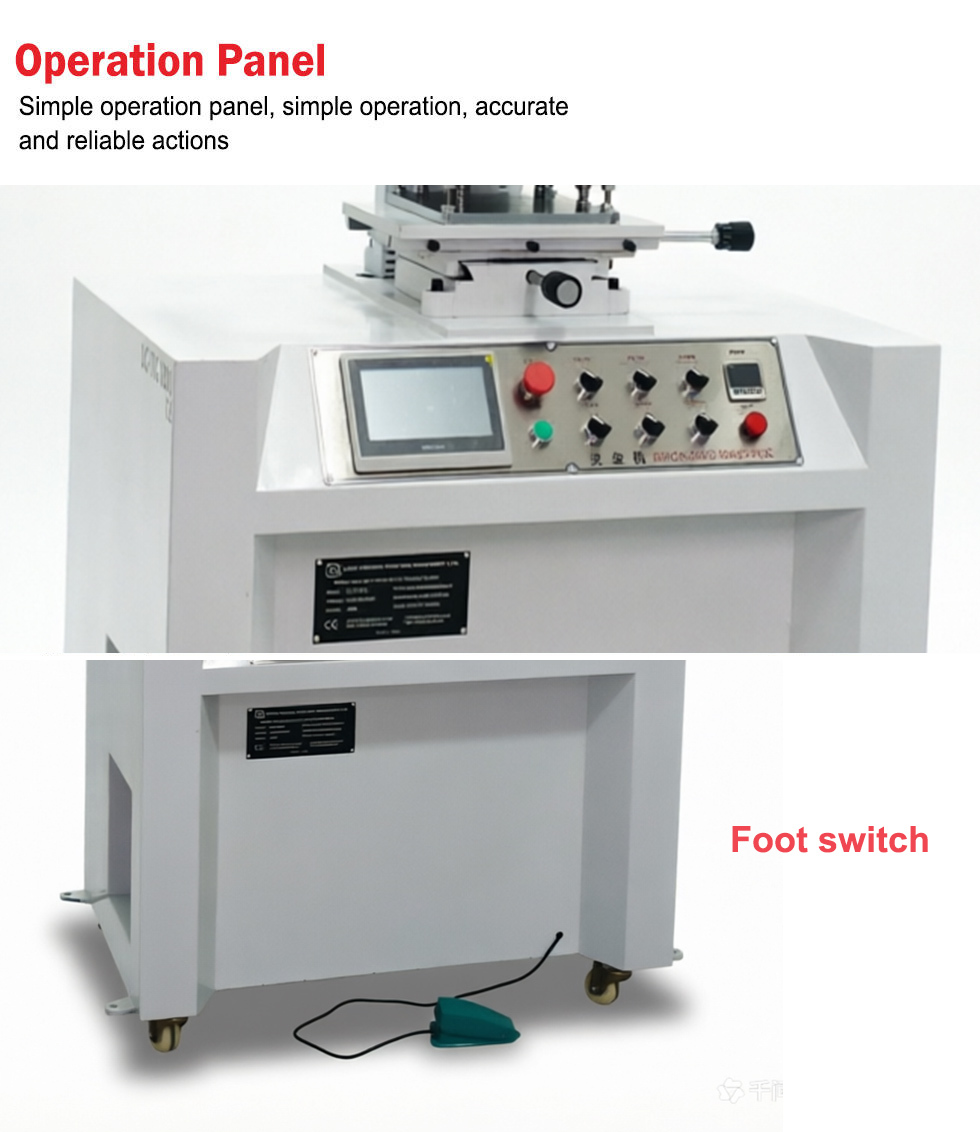

  • Safety Configuration: Includes an emergency stop button, dual-foot pedal start switches, and a fully enclosed sheet metal protective structure for maximum operator safety

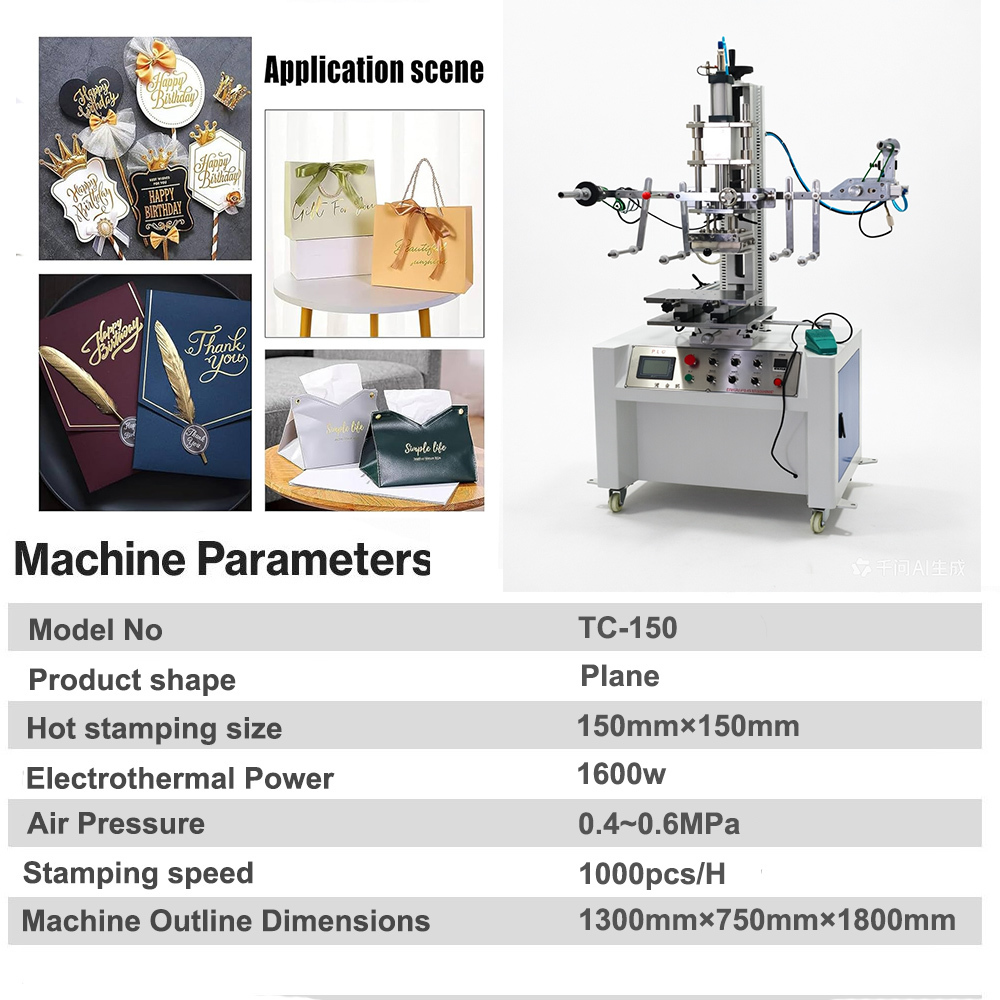

Model TC-150
Hot Stamping Cylinder Bore 80mm, Stroke 75mm
Effective Stamping Area 150mm * 150mm
Heating Power 1600W
Worktable Stroke 200mm
Worktable Size 350mm * 220mm
Power Supply 220V / 50Hz
Total Power 2000W
Required Air Pressure 0.4~0.6 MPa
Machine Dimensions 1300mm * 750mm * 1800mm
