Hanging Installation Industrial LCD Monitor Using SAMSUNG / LG Panel
Hanging Installation Industrial LCD Monitor Using SAMSUNG / LG Panel
Specifications
Brand Name :
YD
Model Number :
LCD Digital Signage
Certification :
FCC, ISO9001,UL
Place of Origin :
China
MOQ :
1 Unit/PCS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
8-10 days
Packaging Details :
carton case ,wooden pack
Panel Brand: :
SAMSUNG, LG
Feature :
TFT, Touch Screen Kiosk
Input Voltage :
AC100~240V 50 /60 HZ
Type: :
Wall Mounted
Max Resolution :
1920*1080
OSD language: :
Multi-language Support
Aspect Ratio :
16:9
Product type :
Hanging Double Screen
Description

Rotatable Indoor Android Hanging Industrial LCD Monitor Advertising Display/Player

Interciative LCD
Screen size 55 inch
Max resolution 1920X1080
Viewing Angle 89/89/89/89
ColourBrightness 16.7M
Contrast Ratio 800:1
Brightness 350cd/m2
Aspect Ratio 16:10
Response time 5ms

Hanging Kiosk LCD Description:

1. Product features: ultra-thin fuselage, the whole machine is only 4.5CM thick, which can support: dual screen simultaneous display + Dual Screen differential display function

2. Product brightness: inside screen 350cd/m2 + outside screen 700cd/m2

3. Product size: 43 inches, 49 inches, 55 inches

4. Product scheme: Android scheme, PC (computer in one) scheme

5. Outer shell is made of sheet metal, which is painted by powder-spray craft work;
6. Build-in High Quality speakers Stereo 2pcs x 5W;
7. Build-in Mini-Android box;
8. CMS allows you remotely batch control screens that are in various location;

10. 1920*1080 HD LCD panel with high brightness and contrast ratio;

11. Built-in stereo surround sound, more three-dimensional and fully

Hanging Kiosk LCD Specifications:

anel Size 42inch (10inch ~84inch)
Display size(mm) 930.24(H)*523.26(V)
Point distance(mm) 0.53025(H) * 0.53025(V)
Panel Resolution 1920*1080(RGB)
Contrast Ratio 4000:1
Proportion 16:9
Brightness 250cd/m2
View Angle 178/178
Response Time 6ms
Show Color 16.7M
Power Supply Speaker 2*5W
Power Input AC 95~265V
Power Consumption 226W
Appearance Weight 90 Kg
Size(mm) 1847 * 637 * 60
Installation floor standing
Working environment Operating/Storage temperature -40℃~ 50℃
Operating/Storage Humidity 10~90%
wins7 hardware CPU 2 core 1.8G
Memory DDR3 4G
hard dish 500G
video output connector HDMI*1,VGA*1
Audio output connector 1
Network Interface 1
USB connector 6
Android hardware CPU 2 core1.5GHz
Build-in memory NAND FLASH 4G
Operating Systems Android 4.2.2
USB2.0 connector 2USB HOST,2USB socket
LVDS output 1, can drive 50/60Hz LCD dirlectly
HDMI output 1, support 1080P output
Network support 3G,Ethernet,wifi
Systerm update support USB update and network update
software Marterial manage Audio,video,picture,Flash,PPT,Word,Excel,PDF
Program manage Programing,editor,manage,lead-in/lead out
Terminal Mnage Terminal monitor,instand publishing,volme adjust,dowload limited,turn on/off,remote update,touch manage etc
Systerm manage Log manage,view instrustion status,user rights manage,terminal anthentication
Other funtions change password,user rights assign

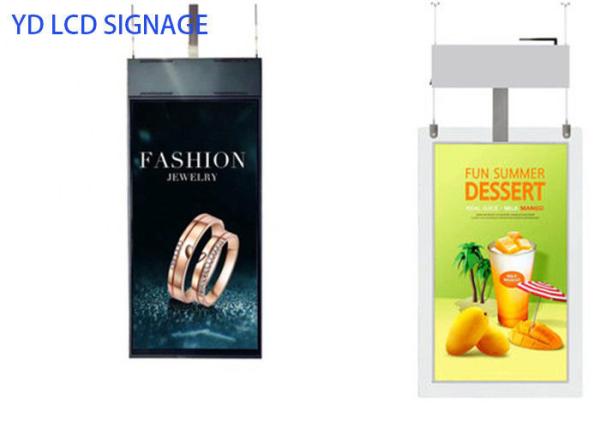

Product image

Ceiling mounted Advertising Display

Refee wall mounted advertising display is designed for public places, it’s a brilliant method to share more specifications and draw more attention to your highlighted products, it’s a perfect solution for enhancing customer experiences and improve efficiencies. Flexible installation in vertical / horizontal and different inch-sizing can satisfy multiple advertising needs.

Terminal group management, multi-users flexible authorization.

Terminal remote monitoring, real-time view to status , provide various of business reporting and management reporting.

Hanging Installation Industrial LCD Monitor Using SAMSUNG / LG Panel

Application

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop,estaurant, travel agency

Hanging Installation Industrial LCD Monitor Using SAMSUNG / LG Panel

Our service

1) Pre-sale Service:
Design suitable product, offer the reasonable consultation, testing your material.

2) After-sale Service:
We provide remote free of charge after-sale service.On the spot installation guidance is provided by our engineers and the buyer is responsible for the Expense.
We have perfect after-sales service system and professional team for whole using life.

3) All orders will be supplied within the stipulated period.

4) Provide customer site for your reference.
