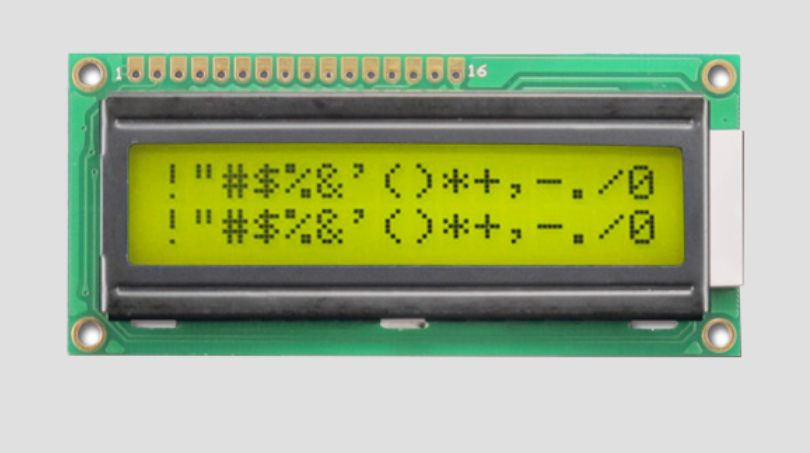

3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
Specifications
Place of Origin :
China
Brand Name :
BBI
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Certification :
ISO9001 RoHS
Name :
Monochrome LCD Display
Display Type :
HTN, POSITIVE ,TRANSFLECTIVE
Drive ic :
ST7565R
Color :
Monochrome
Viewing Direction :
12.00 O’clock
Backlight Type :
LED
Number Of Characters :
16 Characters X 2 Lines
Description
3.0V Monochrome LCD Display 16 Character 2 Line LCD Display Screen
Professional 3.0V monochrome LCD display featuring 16 characters across 2 lines, designed for industrial and commercial applications requiring reliable visual interface solutions.
Technical Specifications
Part Number SDH-13304-HP-4
Power Supply 3.0V
Display Type HTN, POSITIVE, TRANSFLECTIVE
Viewing Direction 12.00 O'clock
LCD Driving Method 1/4 Duty, 1/3 Bias, 3.0V
Driver IC ST7565R
Input Data Parallel 6800 Series MPU Interface / Parallel 8080 Series MPU Interface / Serial 4-Line SPI Interface
Module Size (W×H×T) 170×57.6mm
Glass Thickness 1.1mm
Connector PIN
3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology 3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging method depends on product size and customer requirements, with options tailored to different country specifications. 3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
Shipping: Express delivery via DHL, FedEx, EMS, UPS, air shipping, or sea shipping. We accommodate any preferred shipping method. 3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
Payment Method: 3.0V Monochrome LCD Display Screen with 16 Character 2 Line and HTN Positive Transflective Technology
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing paper. If you don't have specifications, provide samples and we'll recommend suitable standard products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules requiring size or content modifications, we create new LCD glass modules with custom tooling.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can change the display type according to your request.
I want customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper or provide outline size, display information (glass thickness, polarizer, display type, connector mode, storage temp, operating temp, supply voltage, viewing direction, drive condition).
What is leading time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. Exact timing confirmed upon drawing approval.
Can you send us samples for checking?
Yes, sample orders are available.
What is the Leading Time?
Standard products in stock ship within one day after payment. Mass production for special orders takes 15-30 days, with earlier completion updates provided.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo printing and model number application
  • Competitive shipping rates through established carrier partnerships
  • Professional technical support and responsive after-sales service
  • Comprehensive quality control and testing before shipment
  • 24-hour response time for customer inquiries and issues
  • Custom LCD display manufacturing based on your specifications or drawings
