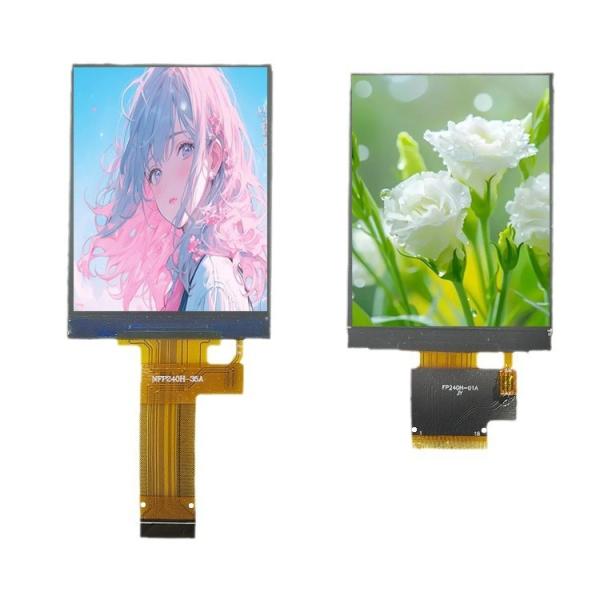

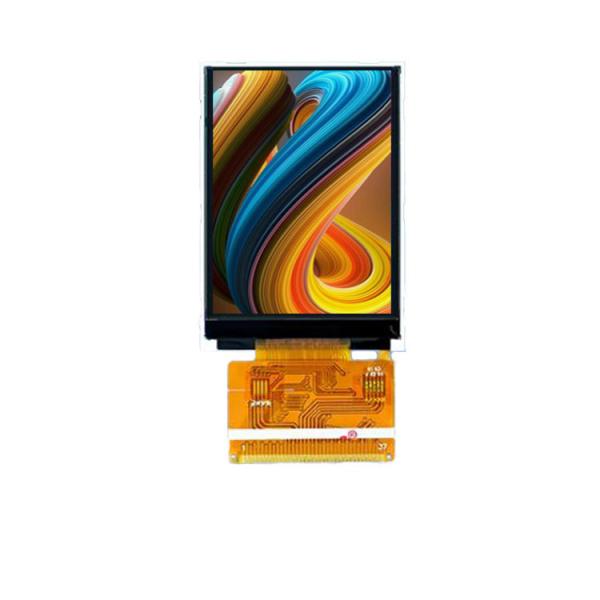

Polcd 1.33 Inch Small LCD Display 4 Wire IPS 240x240 ST7789V RGB Vertical LCD Display
Polcd 1.33 Inch Small LCD Display 4 Wire IPS 240x240 ST7789V RGB Vertical LCD Display
Polcd 1.33 Inch Small LCD Display 4 Wire IPS 240x240 ST7789V RGB Vertical LCD Display
Polcd 1.33 Inch Small LCD Display 4 Wire IPS 240x240 ST7789V RGB Vertical LCD Display
Specifications
Place of Origin :
China
Brand Name :
BBI
MOQ :
1000
Price :
0.1-5USD
Packaging Details :
CARTON
Delivery Time :
20-30DAYS
Payment Terms :
T/T D/P Paypal
Supply Ability :
5000000/months
Certification :
ISO9001,RoHS,CE,REACH,SGS
Viewing Angle :
160 degrees
Operating Temperature :
-20°C to 70°C
Cell Gap :
3.85+-0.3
Pixel Driving Element :
a-Si TFT
Keywords :
2.4 Inch Lcd Display
Color Configuration :
R.G.B. vertical stripe
Name :
Small LCD Display
Description

Polcd 1.33 Inch Small LCD Display 4 Wire Ips 240x240 ST7789V RGB Vertical Stripe

Product Description


P/N N133-2424TCBIG01-H12
Size(inch) 1.33
Resolution 240*240
Active Area(mm) 23.40*23.40
Pixel pitch(um) 97.5*97.5
Outline Dimension(mm) 26.16*29.22*1.5
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness
(cd/m²)		 350
Contrast Ratio 600:1
Interface 4 Wire SPI
Back-light LED Side-light type
Driver Ic ST7789V
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 35
Pin Number 12
Polcd 1.33 Inch Small LCD Display 4 Wire IPS 240x240 ST7789V RGB Vertical LCD Display Polcd 1.33 Inch Small LCD Display 4 Wire IPS 240x240 ST7789V RGB Vertical LCD Display
Product Details
P/N:
N133-2424TCBIG01-H12
Size (inch):
1.33
Resolution:
240*240
Brightness (cd/m²):
350
Interface:
4 Wire SPI
Driver Ic:
ST7789V
