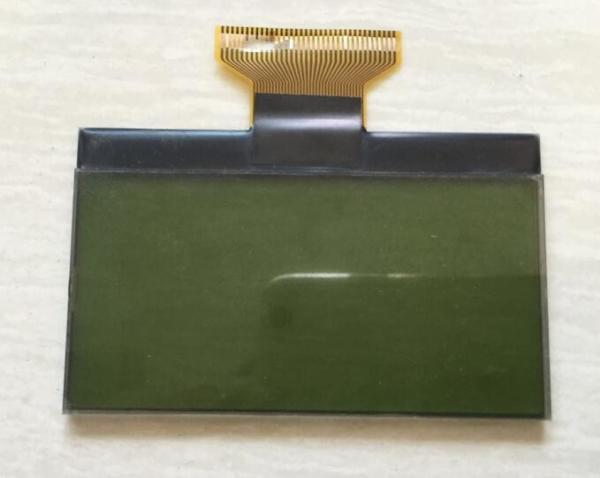

Original LCD Display Module 132*64 dots FSTN Positive / Transflective
Original LCD Display Module 132*64 dots FSTN Positive / Transflective
Original LCD Display Module 132*64 dots FSTN Positive / Transflective
Original LCD Display Module 132*64 dots FSTN Positive / Transflective
Specifications
Place of Origin :
China
Brand Name :
BBI
MOQ :
1000
Price :
0.1-5USD
Packaging Details :
CARTON
Delivery Time :
20-30DAYS
Payment Terms :
T/T D/P Paypal
Supply Ability :
5000000/months
Certification :
ISO9001,RoHS,CE,REACH,SGS
Name :
LCD Display Module
Quality :
New Original
Accessory :
Micro USB cable
Buttons :
Play/Pause, volume,previous,next
Appearance Size :
67.85 (width) * 27.5 (high) mm
Module Size :
54.5(H)x83.0(V)x4.0(Max) mm
Description

LCD Display Module 132*64 dots Fstn, Positive ,Transflective

General Specification:

Display Format

132*64DOTS

Power Supply

3.0V

Display Type

FSTN, POSITIVE ,TRANSFLECTIVE

Viewing Direction

6.00 O’clock

LCD Driving Method

1/65 Duty, 1/9 Bias, 9.2V

Driver IC

ST7565R

Input Data

Parallel 6800 Series MPU Interface / Parallel 8080 Series MPU Interface

/ Serial 4-Line SPI Interface

Module Size(W*H*T)

73.4*37.8/44.8 *2.85(MAX)mm

Viewing Area (W*H)

67.50*34.40mm

Active Area (W*H)

58.04*30.68mm

Dot Size (W*H)

0.40*0.44 mm

Dot Pitch (W*H)

0.44*0.48 mm

ABSOLUTE MAXIMUM RATINGS

Item

Symbol

MIN

Max

Unit

Supply Voltage

VDD

-0.3

3.6

V

VLCD

-0.3

13.5

V

Operating temperature

Topr

-20

70

℃

Storage temperature

Tstr

-30

80

℃



Original LCD Display Module 132*64 dots FSTN Positive / Transflective


Original LCD Display Module 132*64 dots FSTN Positive / Transflective

product drawing


Original LCD Display Module 132*64 dots FSTN Positive / Transflective

Packaging & Shipping:

Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,

according to customer request and demand. Different countries have not same requirement..

Original LCD Display Module 132*64 dots FSTN Positive / Transflective


Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.


Original LCD Display Module 132*64 dots FSTN Positive / Transflective


Payment Method:


Original LCD Display Module 132*64 dots FSTN Positive / Transflective
