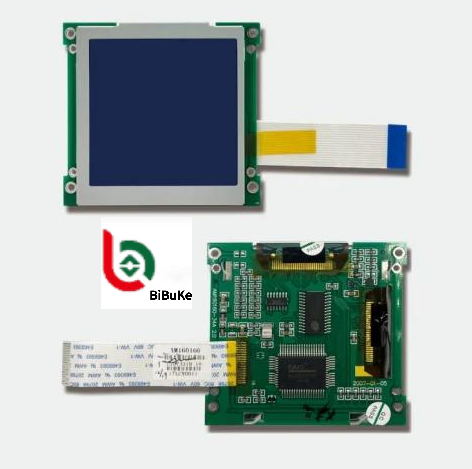

160x160 Resolution Positive Transflective FSTN LCD Module with 4 Wires SPI Interface and ST75161 Driver
160x160 Resolution Positive Transflective FSTN LCD Module with 4 Wires SPI Interface and ST75161 Driver
160x160 Resolution Positive Transflective FSTN LCD Module with 4 Wires SPI Interface and ST75161 Driver
160x160 Resolution Positive Transflective FSTN LCD Module with 4 Wires SPI Interface and ST75161 Driver
Specifications
Touchscreen :
customized
Resolution :
160*160
Outline Size :
82.2(L) X 76.0(W) X 9(T) mm
Brightness :
customized
Connect :
Metal Pin ( Can Be Customized )
Interface Types :
4 Wires SPI ( Can Be Customized )
VA size :
60.0(L) X 60.0(W) mm
Backlight :
White LED
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

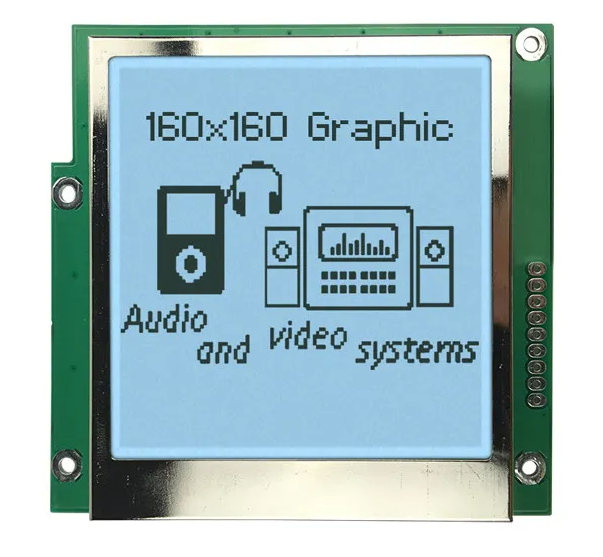

160x160 Positive ST75161 Graphic FSTN LCD Display
High-performance COG FSTN LCD module with 160x160 graphics resolution, designed for industrial applications and embedded systems.
Technical Specifications
ProductCOG FSTN 160x160 LCD Module
Resolution160x160 Graphics
LCD TypeFSTN, Positive, Transflective
Optics6:00 O'clock
Outline Dimensions82.2(L) × 76.0(W) × 9(T) mm
Viewing Area60.0(L) × 60.0(W) mm
Dot Pitch0.34(L) × 0.34mm
Driving Method1/160 Duty Cycle, 1/11 Bias
Operating Temperature-40°C to +70°C (Customizable)
Pin Number9 Pins
ControllerST75151 or Equivalent
Interface4 Wires SPI (Can Be Customized)
ConnectorMetal Pin (Can Be Customized)
ComplianceREACH & RoHS Compliant
Product Features
  • Advanced Driver Chip: Utilizes ST75161 driver chip for high functionality and stability
  • Efficient Interface: 4-wire SPI serial interface with simple wiring and high communication rate
  • Low Power Consumption: 3.3V typical operating voltage for energy-efficient operation
  • Superior Display Quality: FSTN technology with excellent contrast and wide viewing angles
  • Wide Temperature Range: Operates from -20°C to +70°C, storage from -30°C to +80°C
  • Flexible Display Options: Supports 160×160 dot matrix monochrome or 4-level grayscale images
Application Areas
  • Industrial Control: Operation panels for equipment status and parameter displays
  • Instrumentation: Measurement data and waveform displays in multimeters, oscilloscopes
  • Smart Home Systems: Controller displays for temperature, humidity, and status information
  • Handheld Devices: Mobile phones, MP3 players for menus and information display
160x160 Resolution Positive Transflective FSTN LCD Module with 4 Wires SPI Interface and ST75161 Driver 160x160 Resolution Positive Transflective FSTN LCD Module with 4 Wires SPI Interface and ST75161 Driver
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specification drawing or samples, and we'll recommend suitable options or create a custom solution.
This LCD is what we want, but the size is too large. Can you make a smaller version with modified display content?
For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling.
This LCD display is HTN type, but I want STN type. Can you make this change?
Absolutely. We can modify the display type according to your specific requirements.
Can you customize a new LCD module for my application?
Yes, we specialize in custom LCD solutions. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Tooling typically requires 15-25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for your testing and evaluation.
What is the production lead time?
For standard products in stock, lead time is one day after payment. For mass production of custom orders, lead time is approximately 15-30 days. We'll notify you if we can complete orders sooner.
