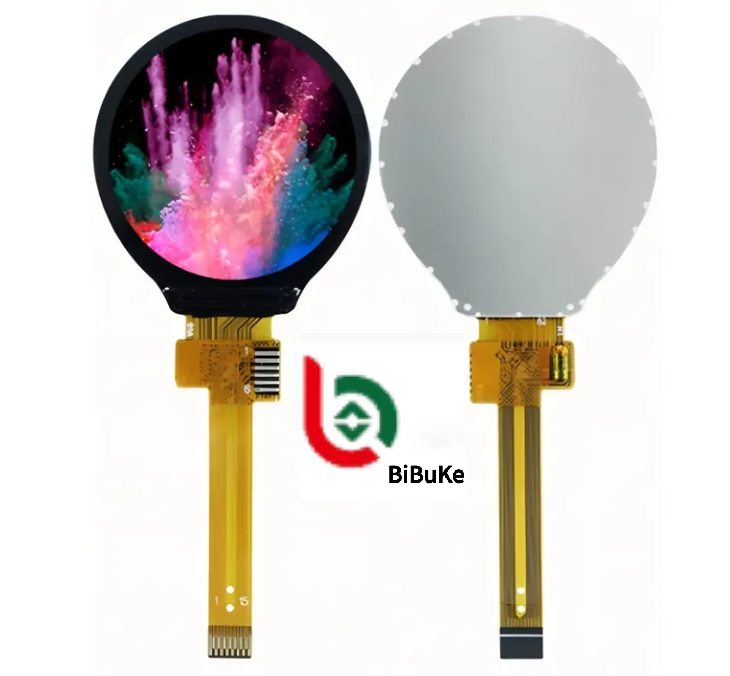

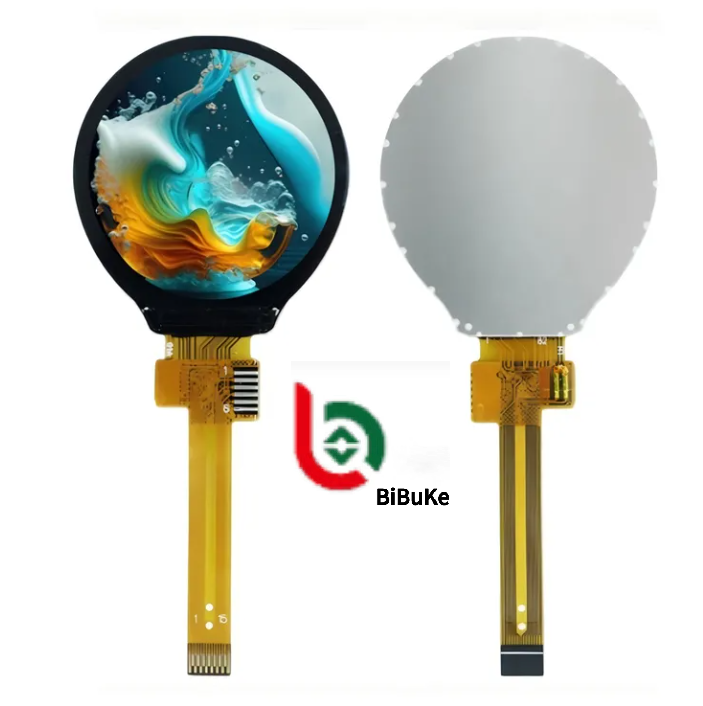

1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
Specifications
Screen Size :
1.09 inches
Module Size :
30.59 (H) x 32.98 (V)
Resolution :
240*240 pixels
Interface :
SPI 4W
Backlight Type :
LED
Pins Number :
15 PINS
Active Area :
27.79 (H) x 27.79 (V)
Fpc Connect :
10 Pins
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
1.09 inch 240×240 GC9A01 Round TFT LCD Display
Product Overview

1.09" Round TFT LCD Module featuring a unique circular design with high-performance specifications, ideal for various electronic applications requiring compact, high-quality displays.

Technical Specifications
Parameter Specification Unit
Drive Element a-Si TFT -

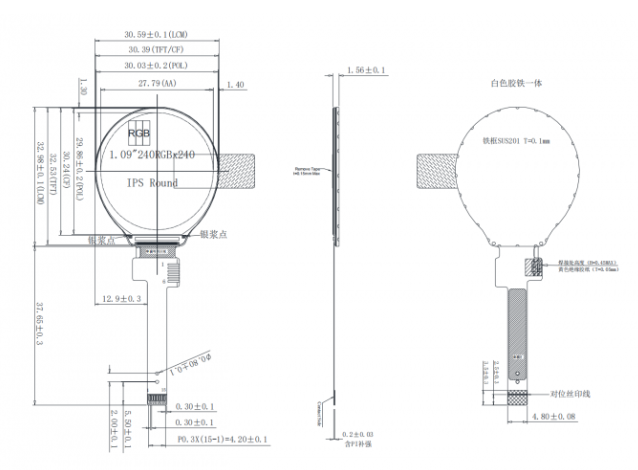

LCM Outline Size 30.59 (H) x 32.98 (V) mm
Active Area 27.79 (H) x 27.79 (V) mm
Number of Pixels 240(H) × 240(V) pixels
Pixel Arrangement RGB Vertical Stripe -
Pixel Pitch 0.1158 × 0.1158 mm
Display Color 262K color
Viewing Direction ALL -
Controller / Driver GC9A01 -
Data Interface SPI 4W -
Backlight 2 White LED -
Weight TBD g
1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
Product Features
  • Size & Resolution: 1.09-inch circular display with 27.79mm diameter active area and 240×240 pixel resolution for clear image quality
  • Driver Chip: GC9A01 controller supporting 262K colors for vibrant, realistic image reproduction
  • Interface: 4-wire SPI interface reduces pin count and simplifies integration with other devices
  • Brightness & Viewing: 400nits brightness ensures visibility in bright environments with full viewing angle capability
  • Power Efficiency: 3.0V operating voltage with sleep mode support for optimized power consumption in battery-powered devices
  • Temperature Range: Operating temperature of -20°C to 70°C for reliable performance in various environments
Applications
  • Wearable Devices: Smart watches, fitness trackers, and health monitoring devices
  • Industrial Instrument Panels: Small control panels and circular dial displays for parameter monitoring
  • Consumer Electronics: Smart home appliances, portable electronics, IoT devices, and handheld game consoles
1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices 1.09 inch 240×240 Round TFT LCD Display with SPI 4W Interface for Wearable Devices
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification or drawing. If unavailable, provide samples and we'll recommend suitable standard products or customize based on your requirements.
This LCD is just what we want, but it is big size. Do you have any smaller size? And the display content needs to be changed a little.
For segment type LCD modules requiring size or content modifications, new LCD glass modules require custom tooling development.
This LCD display is HTN type, but I want STN type. Can you make?
Yes, we can modify the display type according to your specific requirements.
I want to customize a new LCD module. Can you do?
Yes, we provide custom LCD modules. Please send your drawing or provide outline size, display specifications, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
Can you send us samples for checking?
Yes, sample orders are available for evaluation.
What is the lead time?
Standard products in stock ship within one day after payment. Mass production for custom orders typically takes 15-30 days, with earlier completion updates provided when possible.
