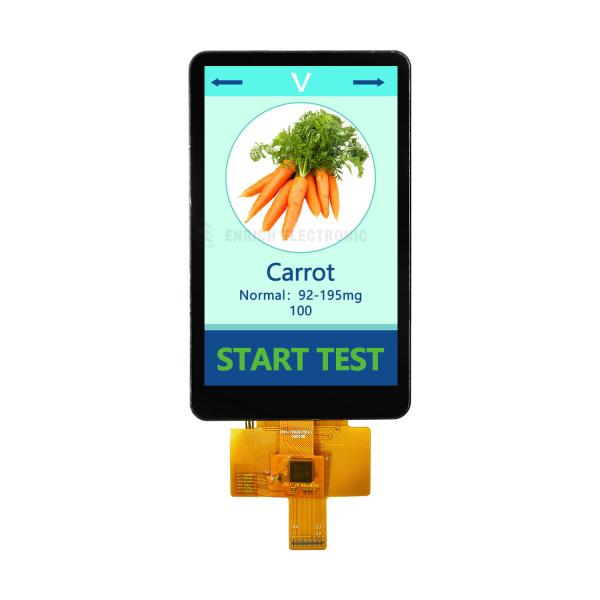

3.97-Inch Color Display: Parameters & Applications

A 3.97-inch color display is a versatile, small-to-medium-sized screen commonly featuring modern display technologies like TFT-LCD or IPS LCD. Its specific parameters can vary by model and manufacturer, but generally include:

1.Size: 3.97 inches (measured diagonally).

2.Resolution: Commonly found in resolutions like 480x800. Higher resolutions offer sharper images.

3.Technology: Primarily TFT-LCD (Thin-Film Transistor Liquid Crystal Display) or IPS (In-Plane Switching) LCD for better viewing angles and color reproduction. OLED variants might exist but are less common at this specific size.

4.Brightness: Typically ranges from 300 to 1000+ nits, sufficient for indoor use and some outdoor visibility depending on ambient light.

5.Contrast Ratio: Varies, but modern panels offer good contrast (e.g., 500:1 to 1000:1 or higher).

6.Viewing Angles: IPS panels offer wide viewing angles (e.g., 160°/160° or better)

7.Touch Interface: Often available with resistive or (more commonly) capacitive touchscreens.

8.Interface: Supports various interfaces like SPI (for simpler, lower-res), MCU parallel, RGB, or MIPI DSI (for higher resolutions and performance).

9.Backlight: LED backlit for efficiency and thinness.

10.Operating Voltage: Usually 3.3V or 5V logic, with specific backlight voltage requirements.

11.Power Consumption: Relatively low power draw, suitable for portable devices.

Key Application Areas:

The 3.97-inch size strikes a balance between visibility and compactness, making it ideal for numerous portable and embedded applications:

1.Wearable Devices: A popular size for advanced smartwatches and fitness trackers, providing ample space for notifications, health data, and basic apps.

2.Industrial Control & Instrumentation: Used in handheld meters, portable test equipment, control panels for machinery, process monitors, and HMI (Human-Machine Interface) devices where a compact yet readable display is needed.

3.Medical Devices: Found in portable diagnostic tools, patient monitors, infusion pumps, and handheld medical scanners requiring clear data and graphical representation.

4.Consumer Electronics: Used in portable gaming devices (handheld consoles), advanced remote controls, smart home controllers, and portable media players.

5.IoT (Internet of Things) Devices: Serves as the user interface for smart home hubs, environmental monitors, security system keypads, and other connected devices.

6.Automotive: Used in secondary displays like rear-seat entertainment controllers, aftermarket dash cams, or auxiliary information displays (not primary instrument clusters).

7.Point-of-Sale (POS) & Handheld Terminals: Employed in compact handheld payment terminals, inventory scanners, and portable kiosks.

8.Portable Navigation & GPS Devices: Suitable for compact dedicated GPS units.

9.Home Appliances: Integrated into smart appliances (coffee makers, ovens, washing machines) for enhanced user control and status display.
