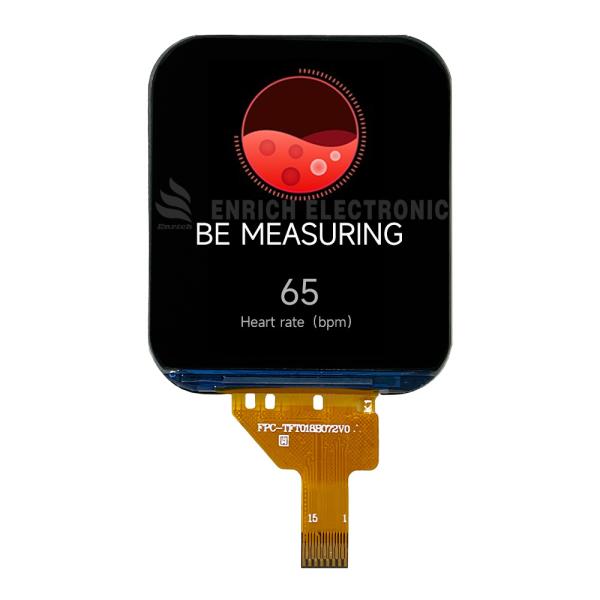

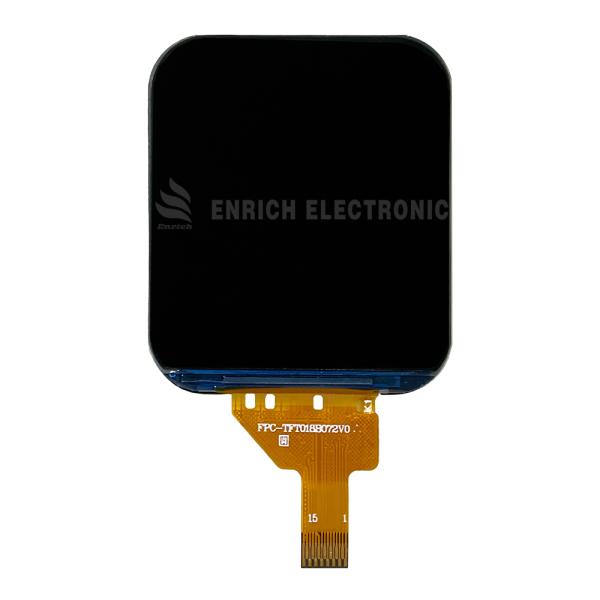

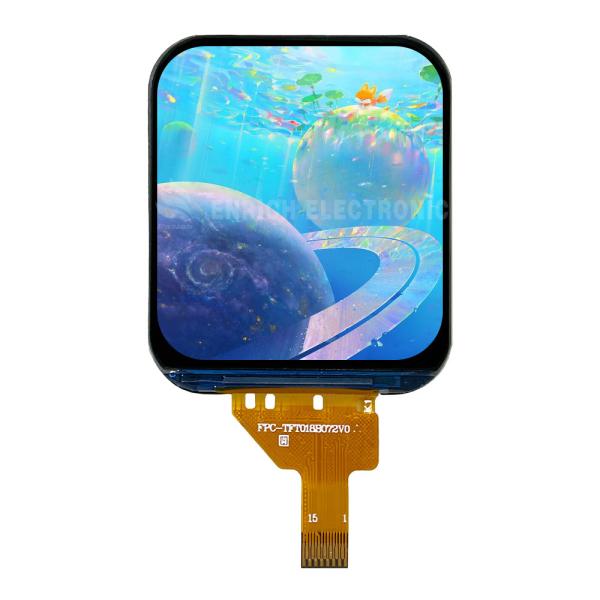

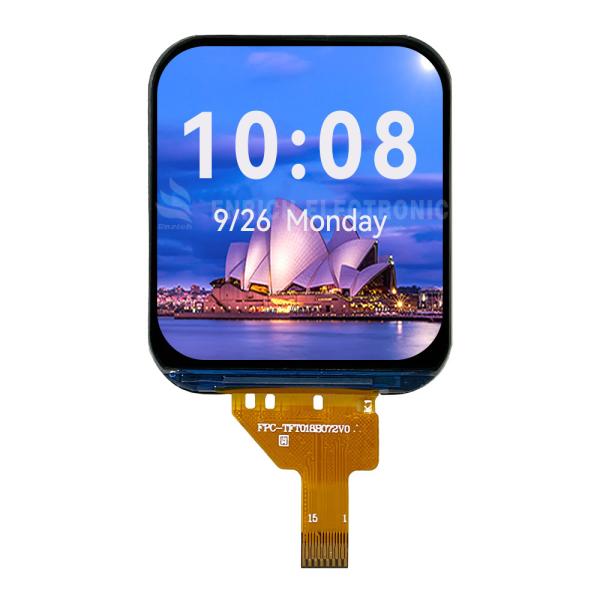

1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
Specifications
Brand Name :
Enrich
Model Number :
ENH-TV0183A006
Certification :
ISO9001,Rosh
Place of Origin :
China
Price :
$1.50-$10.00
Payment Terms :
T/T
Delivery Time :
20-25 work days
Material :
TFT
LCD Size :
31.6x39x1.5 mm
Interface :
SPI
Viewing Angle :
IPS
Driving IC :
NV3030B
Resolution :
240x284
Description
1.83 Inch TFT LCD Module IPS 240x284 Resolution TFT LCD Display
Product Specifications
Attribute Value
Material TFT
LCD Size 31.6x39.1.5 mm
Interface SPI
Viewing Angle IPS
Driving IC NV3030B
Resolution 240x284
Product Overview
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
  • LCD Size: 1.83 Inch
  • Resolution: 240x284
  • Viewing Angle: IPS
  • Driving IC: NV3030B
  • Interface: SPI
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display


Application Fields
  • Advanced Wearables: Enhanced displays for premium fitness trackers, smart rings, and health monitors
  • Portable Medical Devices: Digital thermometers, handheld ECG monitors, medication reminders
  • Industrial Handheld Terminals: Warehouse scanners, smart meter readers, field testers
  • Compact Interactive Devices: Smart home controllers, mini digital photo frames, low-power info displays
  • Education/Advanced DIY: Companion displays for Raspberry Pi Zero/ESP32 projects
Key Advantages
  • Optimal Size-Display Balance
  • Enhanced Resolution
  • Sunlight Readability
1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display 1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display 1.83 Inch TFT LCD Module IPS 240x284 Resolution IC NV3030 TFT LCD Display
Frequently Asked Questions
Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

  • Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
  • Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.
How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

  • Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
  • LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".
How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
