0.87 Inch PM-OLED Display Panel with 128x32 Resolution, I2C Interface, and SSD1312 Driver IC for Industrial Applications
0.87 Inch PM-OLED Display Panel with 128x32 Resolution, I2C Interface, and SSD1312 Driver IC for Industrial Applications
Specifications
Brand Name :
ODM
Model Number :
SJ0087MO-01C
Place of Origin :
China
MOQ :
1
Price :
$1/pieces 1-5000 pieces
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100K/Month
Delivery Time :
3-5 working days
Packaging Details :
200pcs/Box
Resolution :
128*32
Brightness :
250nits
Interface :
I2C
Driver IC :
SSD1312
Connecting :
Soldering
Description
0.87 Inch PM-OLED Display Panel with 128x32 Resolution and I2C Interface

0.87 Inch PM-OLED Display Panel with 128×32 Resolution and I2C Interface for Medical & Health applications, featuring the SSD1312 Driver IC.

Key Features
  • Ultra-compact 0.87-inch PMOLED display with slim profile (only 1.23 ± 0.1 mm thick)
  • High contrast ratio of 2000:1 (Typ.) paired with 250 cd/m² brightness
  • Wide operating temperature range (-40 ~ 70 ℃) for harsh environments
  • Low-power I2C interface with SSD1312 driver IC for battery-powered systems
  • COG packaging and soldering-type connection for compact PCB integration
Technical Specifications
Category Item Specification
Basic Info Display Mode PMOLED
Diagonal Size 0.87 Inch
Resolution 128(H) × 32(V) Dots
Display Area Active Area 21.356(W) × 5.324(H) mm
Outline Dimension 29(W) × 8.7(H) mm
Thickness 1.23 ± 0.1 mm
Pixel Pitch 0.167(W) × 0.167(H) mm
Optical Spec Display Color White
Gray Scale 1 Bit
Viewing Direction All
Brightness 250 (Typ.) cd/m²
Contrast Ratio 2000:1 (Typ.)
Electrical Spec Display Driver IC SSD1312
Touch Driver IC No Touch
Interface I2C
IC Package Type COG
Module Connecting Type Soldering
Pins 14 Pins
Environment Operating Temperature -40 ~ 70 ℃
Storage Temperature -40 ~ 85 ℃

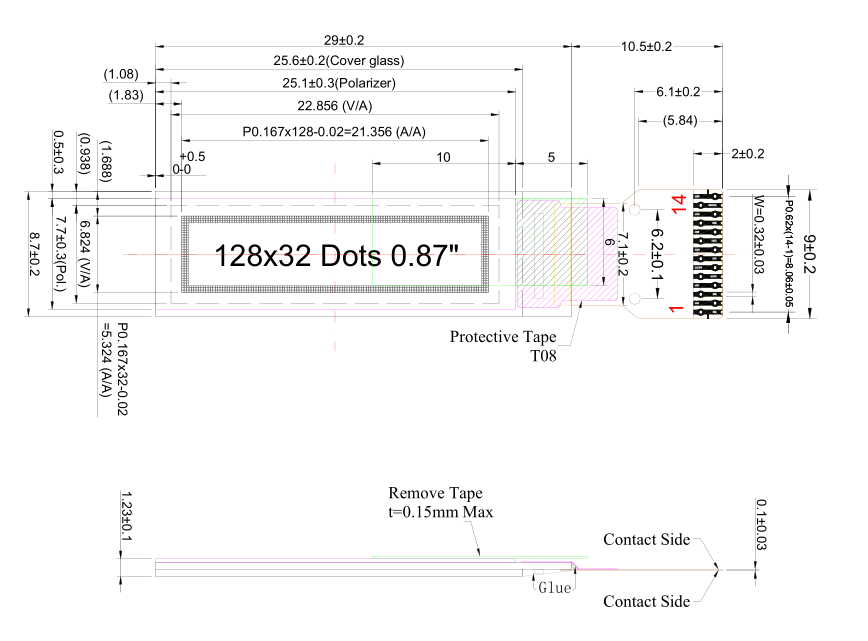

Technical Drawing
0.87 Inch PM-OLED Display Panel with 128x32 Resolution, I2C Interface, and SSD1312 Driver IC for Industrial Applications
Applications
  • Wearable devices (smart bands, fitness trackers, hearing aids)
  • Consumer electronics (Bluetooth earbud cases, e-cigarettes, remote controls)
  • Industrial & IoT devices (sensor nodes, handheld meters, PLC indicators)
  • Medical equipment (portable health monitors, glucose meters, pulse oximeters)
  • Smart home & automotive (access control keypads, smart locks, vehicle key fobs)
Customization Options

Available with cover glass using Corning Gorilla GG3 in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).

0.87 Inch PM-OLED Display Panel with 128x32 Resolution, I2C Interface, and SSD1312 Driver IC for Industrial Applications

Why Choose Wan Shujie Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens of various brands and offers one-stop solutions for touchscreen integration. With extensive experience and advantageous supply resources, we provide clients with fast and superior first-tier services.
