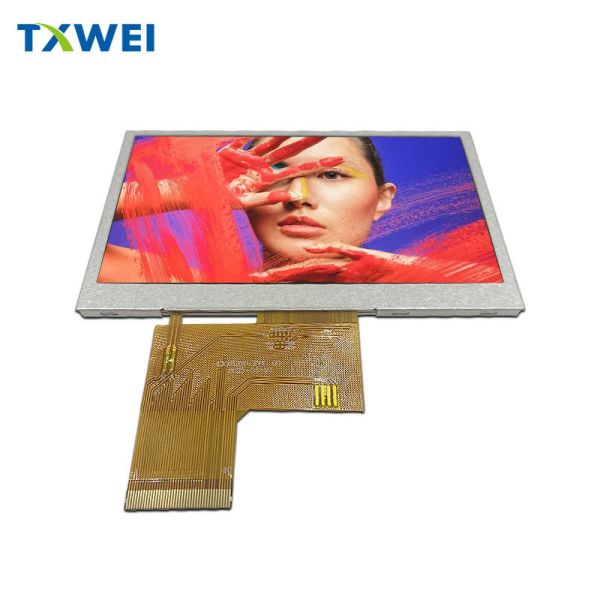

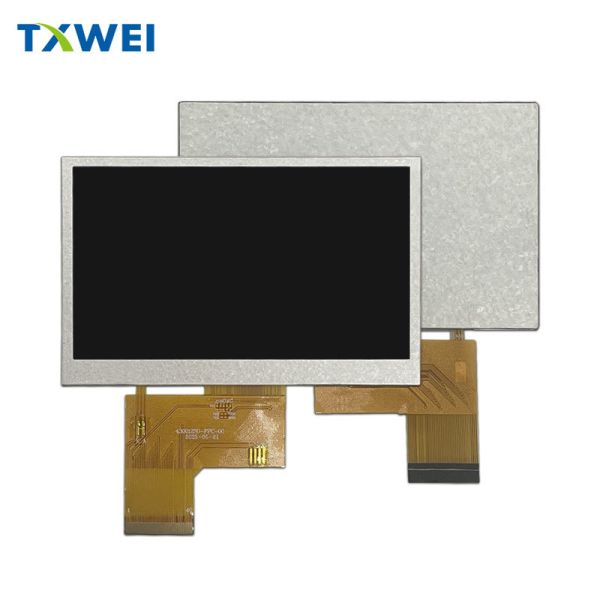

4.3 inch TFT LCD screen 480*272 industrial control medical equipment display screen, home appliance panel display, factory direct supply
4.3 inch TFT LCD screen 480*272 industrial control medical equipment display screen, home appliance panel display, factory direct supply
4.3 inch TFT LCD screen 480*272 industrial control medical equipment display screen, home appliance panel display, factory direct supply
4.3 inch TFT LCD screen 480*272 industrial control medical equipment display screen, home appliance panel display, factory direct supply
Specifications
Brand Name :
TXWEI
Model Number :
TXW430051S0
Certification :
CE FCC ROHS
Place of Origin :
shenzhen
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
10000pcs
Delivery Time :
7-16days
Number of pixels :
480*272
Viewing direction :
IPS
Display Interface :
RGB 24 BIT
Brightness :
450 nits
Active area :
95.04(H) * 53.856(V)
Outline Size :
105.5*67.2*2.9mm
Operating temperature :
-20+70℃
storage temperature :
-30+80℃
Number of pins :
40pin
LCM Driver IC :
ST7282A
Description

TXW430051S0

4.3" Resistive Touch Display | 480×272 | 450 nits | IPS

>> The Question

Your capacitive touchscreen just failed. Again.
Wet fingers. Work gloves. Stylus precision. Three strikes. Three frustrations.
What if the problem isn't your user? What if it's your touch technology choice?

>> The Answer

Meet TXW430051S0. Resistive touch done right.

>>> Short

◆ Pressure-sensitive. Not electricity-dependent.
◆ Gloves welcome. Liquids ignored. Stylus native.
◆ 450 nits. Indoor-perfect. Power-smart.
◆ -20°C to +70°C. Industrial stable.
Built for music gear, medical devices, vehicle dashboards — anywhere human hands meet harsh reality.
TXW430051S0 uses mature 4-wire resistive technology. Pressure creates contact. Contact registers input. Simple. Reliable. Predictable.
IPS Without Compromise
480 × 272. 95.04 × 53.856 mm viewable.
Not the highest resolution. The right resolution.
◦ Fast refresh for responsive UI. ◦ Lower bandwidth for simpler processors. ◦ Reduced power for battery operation. ◦ 178° IPS viewing — angle independence without premium pricing.
Temperature Reality
-20°C cold start. +70°C continuous. -30°C storage.
Real industrial range. Not marketing stretch. Measured performance.

>>> Long

/// The Engineering Story

ST7282A Driver
Proven architecture. Stable supply chain. Extensive reference designs. Your firmware team spends weeks, not months, on integration.
RGB 24-bit Direct
40-pin parallel interface. No MIPI complexity. No high-speed signal integrity nightmares. Straightforward PCB layout. Reliable production yield.
12-LED Backlight
15V architecture. 40mA drive. Efficient, long-lived, dimmable.
450 nits calibrated for indoor dominance. Studios. Vehicles. Control rooms. Bright enough for clarity. Dim enough for comfort.
Mechanical Precision
105.5 × 67.2 × 2.9 mm. Standard 4.3-inch industrial footprint.
Drop-in replacement capability. Existing enclosure compatibility. Reduced redesign risk.

/// The Manufacturing Difference

TXW Display. Shenzhen. Vertical integration.
◆ In-house LCD cell production. ◆ In-house backlight assembly. ◆ In-house quality control.
99.7% outgoing yield. Not peak performance. Sustained average.
Direct manufacturer relationship. No distributor markup. No communication gaps. Engineers answer emails. Production answers schedules.

/// Application Deep Dives

/// Music & Pro Audio
Stage effect processors. Studio mixing surfaces. Synthesizer interfaces.
The environment: Dark venues. Sweaty fingers. Quick adjustments between songs. Vibration from subwoofers.
Resistive advantage: Wet hands don't matter. Gloved road crew operates gear. Stylus substitutes for finger precision. 450 nits perfect for stage lighting conditions. IPS viewing accommodates performer angle.
The result: Sound check flows. Performance connects. Technology disappears.
/// Medical & Clinical
Portable patient monitors. Diagnostic imaging interfaces. Treatment delivery systems.
The environment: Sterile gloves mandatory. Cleaning liquids frequent. Certification cycles long. Failure consequences severe.
Resistive advantage: Glove operation standard. Disinfectant exposure tolerated. Long-term supply stability. 4.3-inch mobile-friendly form factor.
The result: Clinical workflow uninterrupted. Patient safety maintained. Regulatory confidence sustained.
/// Transportation & Marine
Vehicle infotainment. Marine instrumentation. Agricultural machinery controls.
The environment: Gloved operators. Wet conditions. Vibration constant. Temperature extremes.
Resistive advantage: Work-glove compatibility. Rain and spray immunity. No false triggers from vibration. -20°C startup after cold soak.
The result: Driver focus on road. Operator focus on task. Interface certainty guaranteed.
/// Industrial & Field
Portable test equipment. Machine HMI panels. Environmental monitoring.
The environment: Uncontrolled conditions. Glove requirements. Long operational hours. Cost constraints.
Resistive advantage: Industrial temperature certified. Glove-friendly operation. Power-efficient for battery operation. Competitive unit pricing.
The result: Maintenance reduced. Uptime increased. Total cost optimized.
