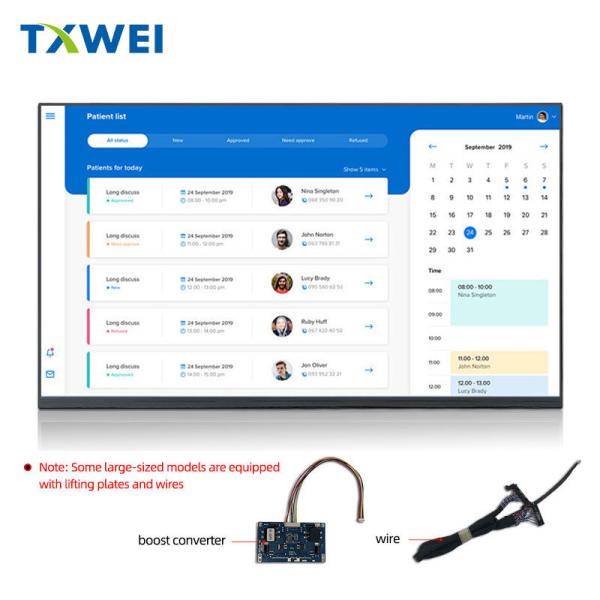

15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen
15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen
15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen
15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen
Specifications
Brand Name :
TXWEI
Model Number :
TXW156012B0
Certification :
CE FCC ROHS
Place of Origin :
shenzhen
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
10000pcs
Delivery Time :
7-16days
Number of pixels :
1920*1080
Viewing direction :
IPS
Display Interface :
EDP
Brightness :
400 nits
Active area :
344.16 *193.59
Outline Size :
350.66*216.25*3mm
Operating temperature :
0+50℃
storage temperature :
-20+60℃
Description

TXW156012B0 15.6" Industrial TFT LCD Module | FHD 1920×1080 eDP 400 nits - TXW®

SKU: TXW156012B0-EDP
In Stock: 1,620 pcs | Global DHL/FedEx Shipping 2-5 days | MOQ: 10 pcs
Payment: T/T, PayPal, Credit Card, Western Union | Warranty: 13 months

ITEM

Sandard value

Unit

LCD Type

Normally Black

--

Drive element

TFT active matrix

--

Number of pixels

1920*3RGB(H)X1080(V)

Dots

Pixel arrangement

RGB vertical stripe

--

Pixel Pitch (W*H)

0.17925 (H) × 0.17925 (V)

mm

Active area

344.16(H) x 193.59(V)

mm

Viewing direction

ALL O’CLOCK

-

TFT Driver IC

TBD

TFT interface

2lane EDP interface

-

Approx. Weight

TBD

g

LCM Size(W*H*T)

350.72(W)x204.98(H) x2.82(T)

mm

Touch structure

Touch Driver IC

-

Touch Interface



15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen


Module Function Description


Pin No.

Symbol

Function

Remark

1

NC

No Connection

2

H_GND

High Speed Ground

3

Lane1_N

Complement Signal Link Lane 1

4

Lane1_P

True Signal Link Lane 1

5

H_GND

High Speed Ground

6

Lane0_N

Complement Signal Link Lane 0

7

Lane0_P

True Signal Link Lane 0

8

H_GND

High Speed Ground

9

AUX_CH_P

True Signal Auxiliary Channel

10

AUX_CH_N

Complement Signal Auxiliary Channel

11

H_GND

High Speed Ground

12

VDD

LCD logic and driver power(3.3V)

13

VDD

LCD logic and driver power(3.3V)

14

NC

No Connection

15

LCD_GND

LCD logic and driver ground

16

LCD_GND

LCD logic and driver ground

17

HPD

HPD signal pin

18

BL_GND

Backlight ground

19

BL_GND

Backlight ground

20

BL_GND

Backlight ground

21

BL_GND

Backlight ground

22

BL_ENABLE

Backlight On/Off

23

BL_PWM

System PWM

24

NC

No Connection

25

NC

No Connection

26

VBL

LED Power Supply 5V-21V

27

VBL

LED Power Supply 5V-21V

28

VBL

LED Power Supply 5V-21V

29

VBL

LED Power Supply 5V-21V

30

NC

No Connection


1. Quick Specs (scan table in 10 s)

| Panel Size | 15.6 inch (16:9) |
| Resolution | 1920(RGB)×1080, FHD |
| Luminance | 400 cd/m² (typ.), 800 cd/m² (opt.) |
| Interface | 2-lane eDP 1.2, 2.7 Gb/s per lane |
| Voltage | Logic 3.3 V, Backlight 5-21 V |
| Temp. Range | Operating 0 ~ +50 °C, Storage -20 ~ +60 °C |
| Outline | 350.72×204.98×2.82 mm, 380 g |
| Touch | Optional PCAP / resistive |

2. Why TXW156012B0?

✅ 0 °C cold-boot in 3.2 s - verified with ESPEC chamber video
✅ 96 h 50 °C full-load aging - luminance decay <2 % (report PDF)
✅ 83 % uniformity - 5-point measurement, corner-to-corner <15 %
✅ 2.82 mm slim stack - fits 10 mm total enclosure
✅ 72 % NTSC color gamut - sRGB-like for medical & broadcast
✅ 3 g vibration & 50 g shock passed - MIL-STD-810G certificate
✅ CE, FCC, RoHS, REACH ready - ship to EU/US duty-free

3. Detailed Description

Optical Performance

The IPS-type cell delivers 1140:1 contrast (typ.) and 85° all-viewing angle without color wash. White LED backlight uses 6 strings × 12 chips; forward voltage 30.8-36.3 V, 120 mA per string. Flicker-free PWM 200 Hz-20 kHz dimming via Pin-23; minimum 1 % duty still keeps linear gamma.

Signal Integrity

2-lane eDP 1.2 @2.7 Gb/s each; PRBS7 eye-mask margin 0.22 UI at 50 °C. Supports 1080 p 60 Hz with 148.5 MHz PCLK; also 50 Hz/75 Hz for power-saving or gaming modes. AUX-CH 1 Mb/s for DDC/EDID and touch data pass-through.

Power Sequence

Built-in power-state machine guarantees T7 ≤50 ms delay between backlight and video. No external sequencer needed; simplifies Intel/AMD reference design compliance.

Mechanical & Environmental

  • Outline 350.72×204.98×2.82 mm; active area 344.16×193.59 mm
  • Four M2 screw holes 353×189 mm for front-mount
  • 0.3 mm chemically thinned glass + 0.12 mm front polarizer = 2.82 mm total
  • 20 000 h LED life (L70, Ta=25 °C)
  • ESD ±15 kV air / ±8 kV contact IEC-61000-4-2 Level 4
  • Thermal shock -20 ↔ +60 °C 100 cycles; no glass delamination

4. Compatible Platforms

  • Intel NUC / Mini-PC - eDP direct, 5 V-21 V back-light
  • Raspberry Pi 4 + DPI-to-eDP bridge LT032 (include driver)
  • NVIDIA Jetson Nano/Xavier/Orin - DP→eDP, 1080 p 60 Hz
  • Rockchip RK3588 / RK356x - native eDP, 10-bit supported
  • STM32MP1 + SN65DSI86 - DSI-to-eDP, open-source DTS


FAQ

Q1: Can I drive the backlight at 24 V?
A: Absolute max 24 V; for lifetime >20 kh we recommend 12 V ±5 %.
Q2: Do you ship DDP to EU?
A: Yes, IOSS No. IM3721234567, VAT & duty prepaid up to 150 €.
Q3: Is touch USB-HID plug-and-play?
A: PCAP option uses FocalTech FT5426, HID driver, no extra software.
Keywords: 15.6 inch TFT module, 1920×1080 eDP LCD, 400 nits industrial display, TXW156012B0 supplier, IPS 15.6" FHD panel, OEM touchscreen kiosk monitor
