Light Optical Multi View Microscope Objective Lens For Five Persons Observing
Light Optical Multi View Microscope Objective Lens For Five Persons Observing
Light Optical Multi View Microscope Objective Lens For Five Persons Observing
Light Optical Multi View Microscope Objective Lens For Five Persons Observing
Specifications
Model Number :
NCV-5010
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets per month
Packaging Details :
Carton
Head Number :
Five
Eyepiece :
Wide Field WF10×
Objective :
Achromatic 4×, 10×,40×,100×
Nosepiece :
Quadruple
Abbe Condenser :
NA1.25
Model :
NCV-5010 Series
Description

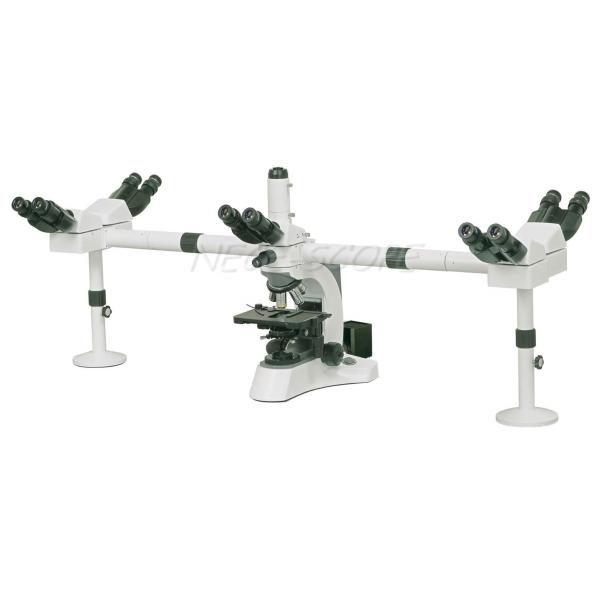

Multi Heads NCV-5010 Series Multi View Microscope For Five Persons Observing

Description

Adopted 4pcs or 10pcs Wide Field Eyepiece WF10× for 2pcs or 5pcs viewing head, NCV-5010 Multi-viewing Microscope conveniet the observation for multi-persons at the same time. The microscope is equipped with five heads for five persons observing at the same time. Best for educational teaching or the multi-persons observation requirement at the same time.
Specification:
NCV-2004 NCV-3004 NCV-5010
Viewing Head Sliding Binocular Head, lnclined at 45° 2Pcs 1Pc 5Pcs
Monocular Head, lnclined at 45° 2Pcs
Eyepiece Wide Field Eyepiece WF10× 4Pcs 4Pcs 10Pcs
Nosepiece Quadruple Nosepiece ● ● ●
Objective Achromatic Objective 4×, 10×,40×,100× ● ● ●
Condenser Abbe Condenser NA1.25 ● ● ●
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm ● ● ●
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm ● ● ●
lllumination S-LED Illumination, Brightness Adjustable ● ● ●
Halogen Lamp 6V/ 20W ○ ○
Halogen Lamp 24V/ 100W ○
Pointer Green LED Pointer , Brightness Adjustable ●
Note: ●Standard Outfit, ○Optional

Detail:

Light Optical Multi View Microscope Objective Lens For Five Persons Observing
