Inverted Optical Upright Fluorescence Microscope 1000X With Multi Color Filter
Inverted Optical Upright Fluorescence Microscope 1000X With Multi Color Filter
Specifications
Model Number :
NCF-200
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T, Western Union
Supply Ability :
1500 sets per month
Packaging Details :
Carton
Magnification :
40-1000X
Mechanical Stage :
Stage Size: 190X140mm, Travel: 78mm×55mm, Coaxial Coarse and Fine Focusing Knobs, Two Slide Holder
Description

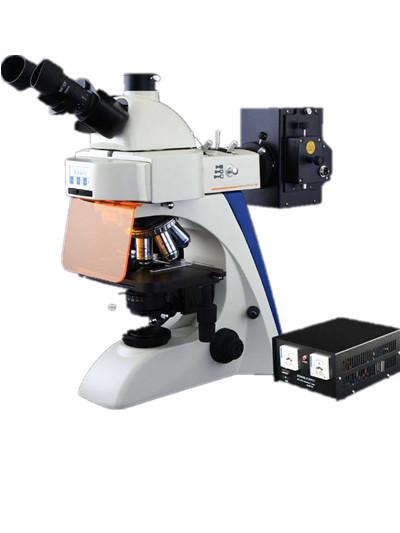

NCF-200 Fluorescence Microscope

Inverted Optical Upright Fluorescence Microscope 1000X With Multi Color Filter

NCF-200 Series Fluorescence Microscope Outfits

Items Specification NCF-200
Eyepiece WF 10X-20mm ●●
WF16X-13mm ○○
WF 10X-20 mm (Reticule 0.1mm) ○
Infinity Plan Objectives Plan 4X ●
Plan 10X ●
Plan 20X (S) ●
Plan 40X (S) ●
Plan 100X (Oil) (S) ●
Centering Objective ●
Main Body ●
Fluorescence Attachment Epi Fluorescence Illumination Unit (B,G) ●
100W Mercury Lamp House ●
100W Mercury Power House ●
Seidentopf Binocular Head Inclined 30°, Rotatable 360°,
Interpupilary Distance 50-75mm		 ○
Trinocular Head Inclined 30°, Rotatable 360°,
Interpupilary Distance 50-75mm,
Light Distribution: 0:100		 ●
Quintuple Nosepiece ●
Mechanical Stage

Stage Size: 190X140mm, Travel: 78mm×55mm,

Coaxial Coarse and Fine Focusing Knobs,

Two Slide Holder

 ●
Condenser Abbe N.A. 1.25 (Iris Diaphragm) ●
220V/100W Mercury Lamp ●
Koehler Illumination 6V/20W Halogen Lamp ●
6V/30W Halogen Lamp ○
Filter Blue ●
0.57X (Focus Adjustable) ○
1X ○
Digital Camera Adaptor ○

Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories

Packing Size: 990mm X 340mm X 440mm
Gross Weight: 23 kgs
Net Weight: 20 kgs
