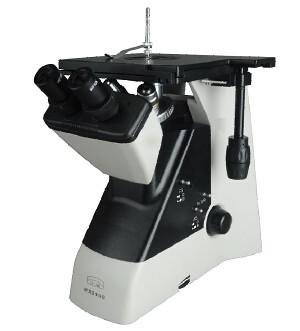

Finite Inverted Metallurgical Optical Microscope School Structure Analyze NCM-M2100
Finite Inverted Metallurgical Optical Microscope School Structure Analyze NCM-M2100
Specifications
Model Number :
NCM-M2100
Certification :
CE/ ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sets per month
Packaging Details :
Carton, or as clients require
Model :
NCM-M2100
Eyepiece :
WF10X/18, WF12.5X/14
Nosepiece :
Triple
Objective :
10X/ 40X
Stage :
180X155mm/ Moving range 40X30mm
Viewing tube :
Sliding binocular
Focusing :
Fine division 0.002mm
Filter :
Green, Yellow and Daylight filter
Description

Binocular Inverted Metallurgical Optical Microscope NCM-M2000 Triple Nosepiece

Description

Metallographic optical microscopes allow the user to view opaque items at high magnification with reflected and transmitted light, which are used for a variety of specialty applications such as semiconductor silicon wafer manufacturing, inspection and quality control like inspection of grain size, surface inclusions and defects, crystallography, and analysis of sand castings in iron metal foundries.
They can also be used for metallic grain microstructure analysis and identification, measurement of thin films, electroplating coatings, microscopic analysis of opaque surfaces, study of prehistoric stone age tools and artifacts, historical preservation, the study of metallurgy, and metal patina analysis.


Our metallurgical microscopes are available in binocular and trinocular models with both upright,inverted and boom stand microscope systems, while NCM-M2100 inverted metallurgical optical microscope features it's convenience of stage operation, with wide field eyepiece WF10X/18 and achromatic objective 10X/0.25 WD 6.3mm, plan achromatic objective 40X/0.65 WD 0.7mm( optional WD 2mm 50X and 100X objectives), it is widely used in school and laboratory etc.,to identify and analyze organizational structure of metals and alloys, and do researching on metallurgical metairal after heating.

Specification:

　

NCM-M2100
Optical System Finite optical system ●
Eyepiece Wide field eyepiece WF10X/18 ●
Wide field eyepiece WF12.5X/14 ●
Wide field eyepiece WF16X/11 ○
Objective Achromatic objective 10X/0.25 WD=6.3mm ●
Plan achromatic objective 40X/0.65 WD=0.7mm ●
Plan achromatic objective 50X/0.75 WD=2mm ○
Achromatic objective 100X/1.25(oil) WD=0.1mm ○
Viewing Head Sliding binocular viewing head ●
Monocular viewing head ○
Integrative sliding binocular digital head(200M) ○
Integrative sliding binocular digital head(300M) ○
Illumination 12V/20W Halogen lamp, Center and brightness adjustable ●
Focusing Coaxial coarse and fine adjustment, Fine division 0.002mm, Moving range 8mm ●
Nosepiece Triple nosepiece ●
Stage Mechanical stage180X155mm, Moving range 40X30mm, Stage Clips 1pc, Stage:Teardrop,Round Hole ●
Filter Green,Yellow and Daylight filter ●

Note: ●Standard Outfit, ○Optional
