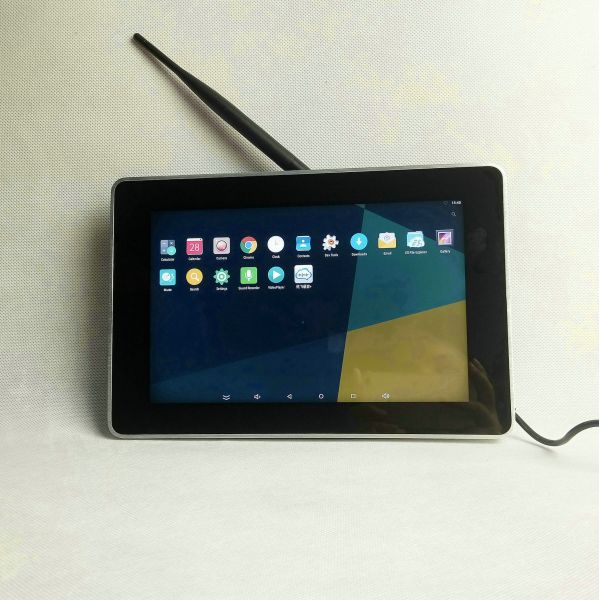

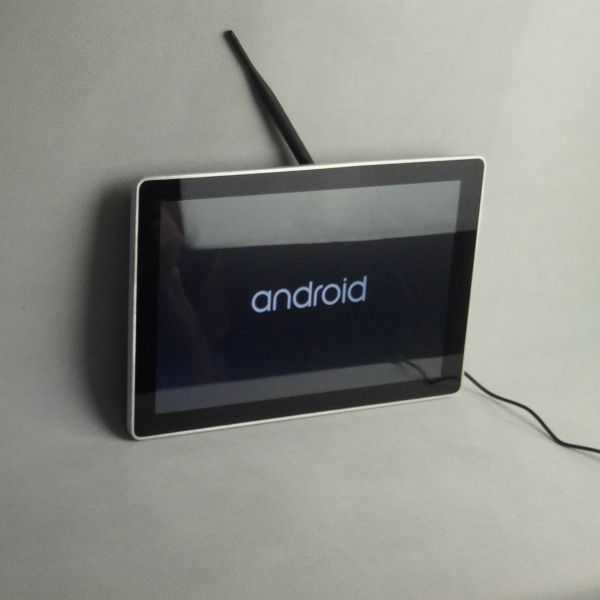

| Item Nane | POE 10" IPS screen HD touch screen Android display |
| Housing materials | |
| Touch panel | 10 points G+G capacitive Touch Panel |
| Parameter about LCD panel | |
| LCD panel size | 10.1" 16:10 ratio |
| Resolution | 1280x800px. |
| Brightness | 250-350 cd/m2 |
| Viewing angle | 80°-89° |
| Contrast | 500:1 |
| Lift time | 30000 hours |
| About hardware configuration and features | |
| Features | Programmable, support public or customized applications |
| CPU | RK3288, Cortex A17, Quad-core, 1.8-2.1GHz |
| Running memroy | 2GB DDR, 8GB Flash(16GB, 32GB for option) |
| System | Android 6.0 |
| Network support | 10m/100m/1000m WiFi, Ethernet, External 3G/4G, Bluetooth 4.0 |

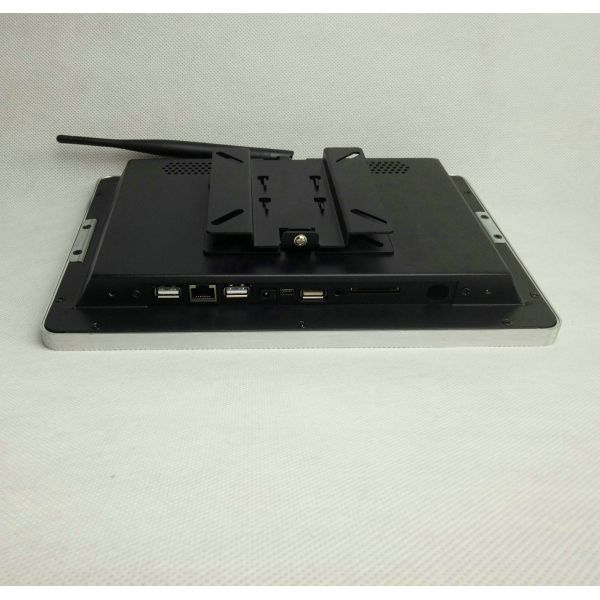

| In/output | SD card slot, USB 2.0/3.0, USB OTG, Audio-out, DC-in (HDMI out optional) |
| OSD languages | Over 100 countries languages on OSD for option |
| Multimedia | A movie, music, photo, clock, calendar display |
| Stereo Speakers | Built-in 2 pieces x 2W |
| Optional | HD camera, MIC and IR human motion sensor |
| Remote management: Optional with additional cost | |
| Power supply | Power over ethernet, DC 12V 2A input |
