2.0inch 480*360 IPS TFT LCD Module with Mipi Interface for High Resolution Display

Specifications

MOQ :

500

Price :

5.5

Display Size :

2 Inch

Display Resolution :

480RGB(H)X360(V)

Interface Type :

Mipi

LCD Type :

TFT-LCD /IPS

Viewing Angle :

All

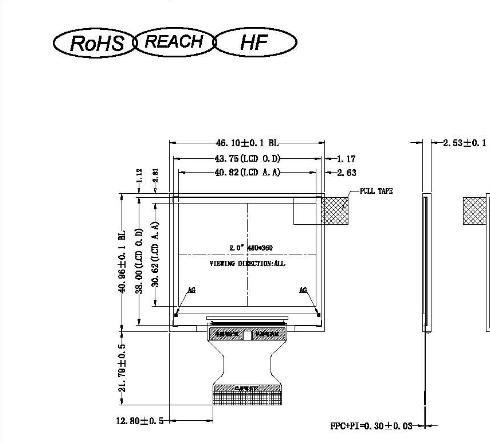

Outline Dimensions :

46.10*40.0*2.53 mm

Active Area :

40.80*30.62 mm

Driver IC :

St7701s

Operating Temperature :

-20c~70c

Storage Temperature :

-30c~80c

Brightness :

280-330CD/M2

Display Technology :

TFT

Touch Panel :

Without

Drive Mode :

Color Display

Production Capacity :

300K/Month

Description

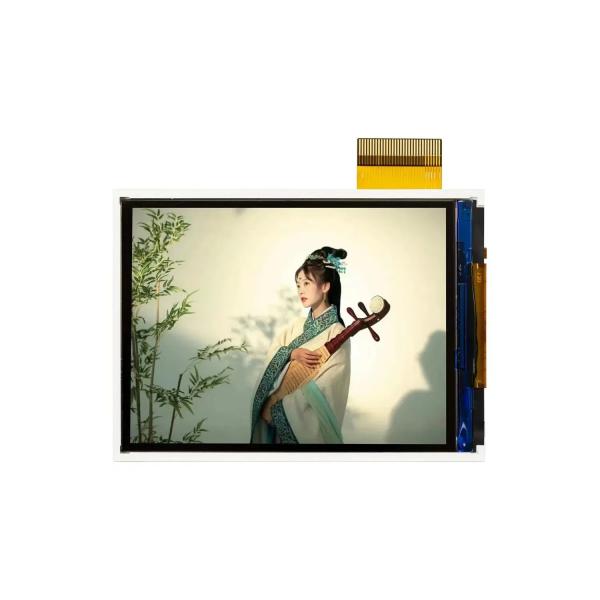

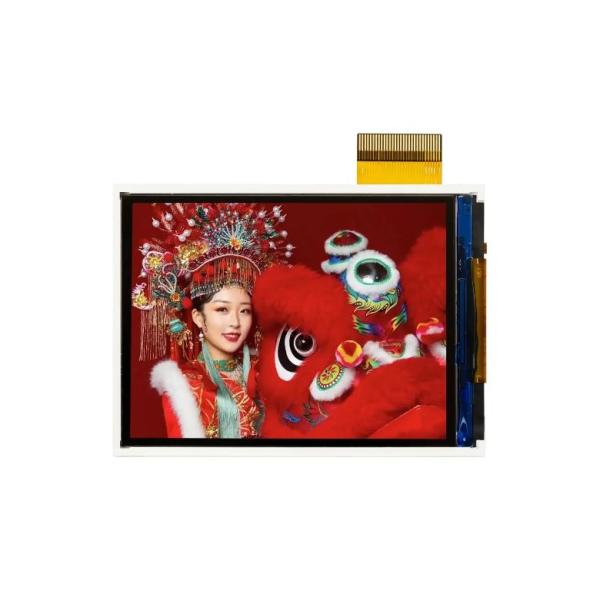

**2.0inch 480*360 IPS TFT LCD with MIPI interface**

Model NO.	RYT-2.0
Size	2 inch
Resolution	480RGB360
Interface	MIPI
LCD Type	TFT-LCD /IPS
Viewing Direction	IPS
Outline Dimension	46.1040.02.53
Active Size	40.80*30.62
Specification	ROHS REACH ISO
Operating Temp	-20ºC ~ +70ºC
Storage Temp	-30ºC ~ +80ºC
IC Driver	ST7701S
Brightness	280-330CD/M2
Touch Panel	Without
Application	Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics
Country of Origin	China

The 2.0-inch TFT screen is a display screen suitable for handheld devices and small electronic products.

1. 2.0-inch TFT screens are ideal for wearable devices such as wristbands and watches because of their moderate size and easy portability, while providing high-resolution and high-definition display effects.

2. Mobile medical equipment: Many portable medical equipment, such as blood pressure monitors, blood glucose meters, etc., require a small display screen. The 2.0-inch TFT screen can meet these needs, providing clear information display for medical equipment.

3. Mobile game consoles: With the continuous expansion of the mobile game market, 2.0-inch TFT screens are also widely used in mobile game consoles. Its high resolution and high image quality can provide more realistic game images and smoother operating experience.

4. Industrial instruments: Many industrial instruments require a miniaturized design, so a suitable small-sized TFT display screen is required. The 2.0-inch TFT screen is the best choice to meet these needs.

1. High resolution: The 2.0-inch TFT screen can provide high resolution and high contrast, and users can get clear and vivid images and charts.

2. Energy saving: The TFT display screen adopts LCD technology, which can greatly save power and save battery life.

3. Bright colors: The TFT screen can provide high color saturation, and the image is brighter, truer and more vivid.

4. Wide viewing angle: The TFT display screen has a wide range of viewing angles, which not only greatly improves the user experience, but also facilitates shared viewing by multiple people.

5. Fast display speed: The TFT screen has a fast response speed and can support fast dynamic images and video streaming media, bringing users a good visual experience.

Royal Display Co.Ltd, specializing in the design, development and production of LCD display module full scheme for more than 10years.

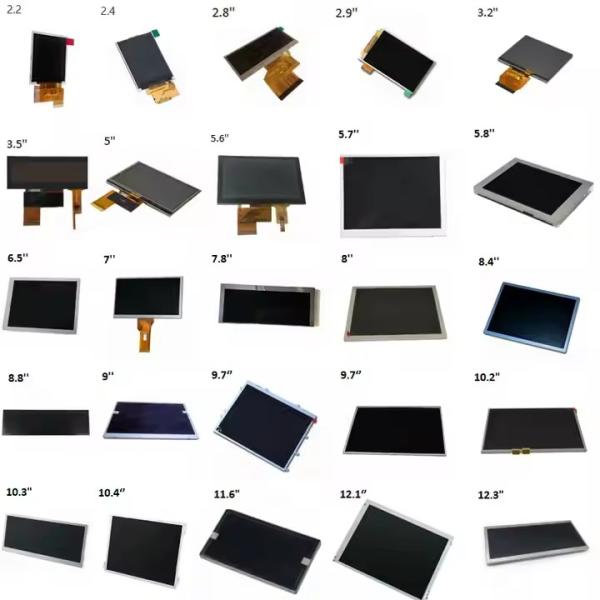

Our company's products include two series: standard and custom-made products, related to: Segment LCD display, Character LCD display, Graphic LCD display, COG LCD display, TFT color display, OLED display, 7 segment LED display, covers TN, HTN, STN, FSTN, TFT and other film types, fusion of COG, TAB, COB, SMT and other process with the capability of 300K different kinds of LCM/LCD per month.
