Specifications
Model Number :
UG-2864ASWPG01
Display Type :
OLED
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Wide range of operating temperature :
-40 to +85 ºC
MOQ :
100 pcs
Delivery Time :
15~25 working day
Interface :
8-bit 68XX/80XX Parallel, 4-wire SPI, 3-wire SPI
driver IC :
SSD1309
Brand Name :
WiseChip
Part number :
UG-2864ASWPG01
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Module Size :
69.5 × 27.0 mm×2.00 (mm)
Price :
5.98 USD EXW negotiable
Panel Size :
59.0 × 27.0 mm×2.00 (mm)
Supply Ability :
20K pcs/month
Active Area :
55.01 × 27.49 mm
Wide range of Storage temperature :
-40 to +85 ºC
Certification :
SGS, ROHS
Size :
2.42inch
Place of Origin :
China
Pixel :
128*64
Description
UG-2864ASWPG01 2.42inch 128×64 Pixels OLED Display Module with SSD1322 Driver IC for Guitar

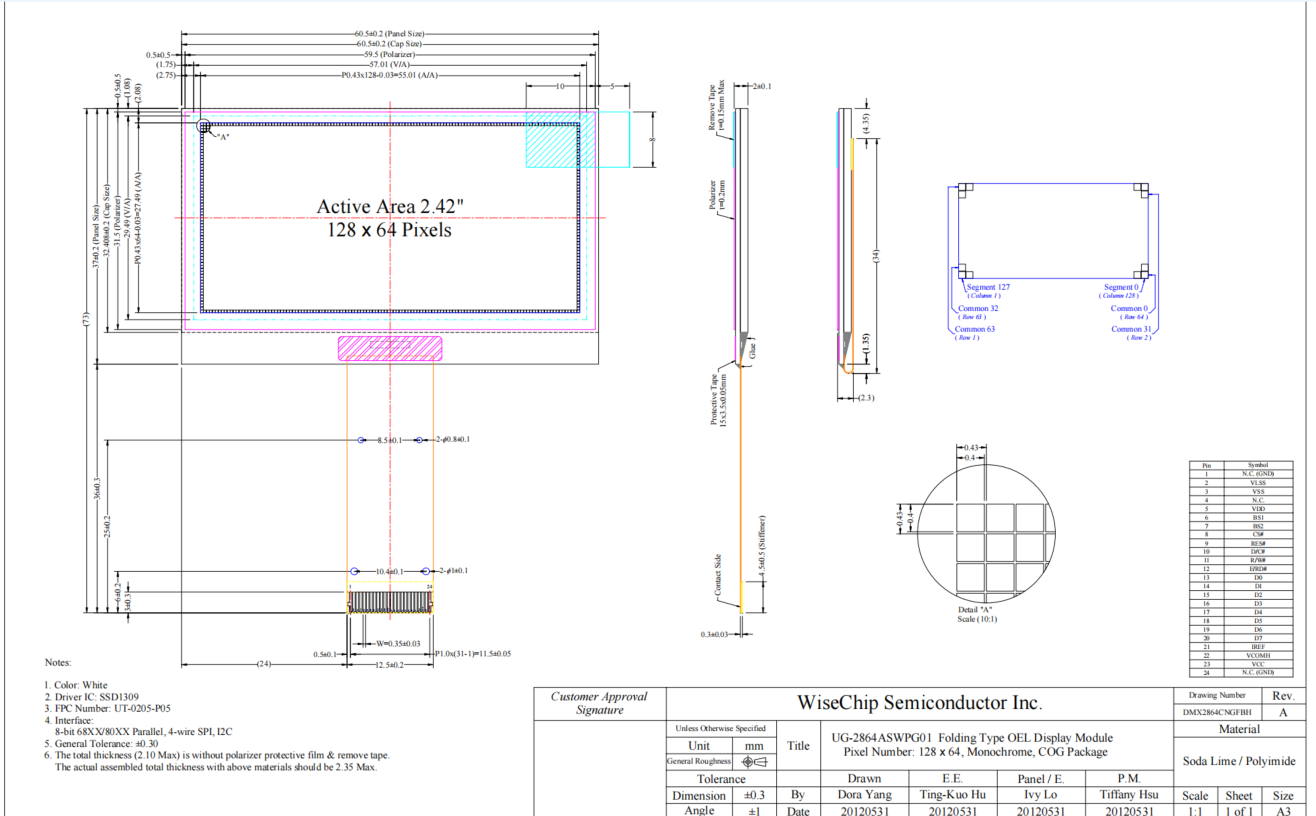

The UG-2864ASWPG01 is a compact 2.42-inch monochrome OLED display module from WiseChip Semiconductor Inc., featuring a 128×64 pixel resolution and a white display color. Built with an integrated SSD1309 driver IC and a COG (Chip-on-Glass) package, this module offers a slim profile with a total thickness of just 2.10 mm (max) without the polarizer protective film and remove tape. Its folding-type FPC (Flexible Printed Circuit) design with a 24-pin contact side allows for flexible integration into space-constrained devices. Supporting multiple interfaces including 8-bit 68XX/80XX parallel, 4-wire SPI, and I2C, this module is ideal for portable electronics, wearables, and industrial control applications requiring a reliable, high-contrast display solution.
Key Features
  • Display Type: Monochrome OLED (White)
  • Resolution: 128 × 64 Pixels
  • Active Area: 2.42 inches
  • Driver IC: SSD1309
  • Package Type: COG (Chip-on-Glass)
  • FPC Number: UT-0205-P05 (Folding Type)
  • Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
  • Module Thickness: 2.10 mm Max (without polarizer protective film & remove tape); 2.35 mm Max (with assembled materials)
  • General Tolerance: ±0.30 mm
  • Pin Count: 24 Pins
  • Operating Temperature: Wide range suitable for industrial and consumer applications
Technical Specifications
Parameter Specification
Pixels 128×64
Display Type OLED
Active Area 2.42 inch
Interface 8-bit 68XX/80XX Parallel, 4-wire SPI, 3-wire SPI
Surface Normal Glare
Driver IC SSD1309
Operating Temperature -40°C to +80°C
Storage Temperature -40°C to +85°C
Panel Size 59.0 × 27.0 mm×2.00 (mm)
Module Size 69.5 × 27.0 mm×2.00 (mm)
Active Area 55.01 × 27.49 mm
UG-2864ASWPG01 2.42inch 128x64 Pixels OLED Display Module with SSD1309 Driver IC for Industrial and Wearable Applications
Applications
OLED display modules are widely adopted across diverse industries due to their exceptional visual performance, ultra-thin form factor, and energy efficiency.
  • Industrial Control Systems: Clear, high-contrast readouts in HMI panels and instrumentation for reliable operation in harsh environments
  • Smart Wearables: Low power consumption and slim profile for smartwatches, fitness trackers, and healthcare monitors
  • Medical Devices: Crisp, easy-to-read displays for portable diagnostic tools and patient monitoring equipment
  • Automotive Applications: Dashboard clusters, infotainment systems, and head-up displays with wide viewing angles
UG-2864ASWPG01 2.42inch 128x64 Pixels OLED Display Module with SSD1309 Driver IC for Industrial and Wearable Applications
Our Service Advantages
Best Quality Control
Every LCD tested with special instruments or main boards before delivery
Secure Packaging
Packed in anti-static bags with foam box for transportation safety
Multiple Payment Methods
T/T, Western Union, L/C, PayPal
Reliable Shipping
Prompt delivery by UPS, EMS, DHL, TNT, or by air
Customized Service
Professional team providing OEM & ODM service
Competitive Pricing
Direct factory pricing
After-sales Support
One year warranty included
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a manufacturer in China. Our factory is located in Dongguan, and our office is located in Shenzhen.
How can I get samples?
Send inquiry → Offer quotation → Confirm quotation & pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collection.
Can you design the LCD according to our requirements?
Yes. We have a professional team to meet all your requirements.
How to place orders?
If you confirm samples are acceptable, please send us your purchase order by Email or Fax. We will then send you an Invoice for deposit payment. We require the following information for your order:
- Product information: Quantity, part number
- Delivery time required
- Shipping information: Company name, Street address, Phone & Fax number, Destination sea port
- Forwarder's contact details if you have any in China
How long for mass production?
25-30 business days. The timeline depends on different order quantities and part numbers.
