Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner
Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner
Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner
Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner
Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner
Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner
Specifications
Brand Name :
ROYAL DISPLAY
Model Number :
RYG19264A
Certification :
SGS ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Supply Ability :
300k/Month
Delivery Time :
25~28 Working Days
Packaging Details :
220pcs/CTN 11Kg L45*W36*H32CM
Product Name :
UDLP-GG19264B-FSPCELW-V01 COG Graphic LCD Module FSTN Positive Black On White 192*64 dots , 3.3V Power supply
Model No. :
UDLP-GG19264B-FSPCELW-V01
Dot Format :
192X64
Viewing Angle :
6 O' clock
LED Backlight :
White
Driver IC :
UC1698
Operating Temp :
-20º C~70º C
LCD Type :
FSTN Postive
Price :
Negotiable
Description

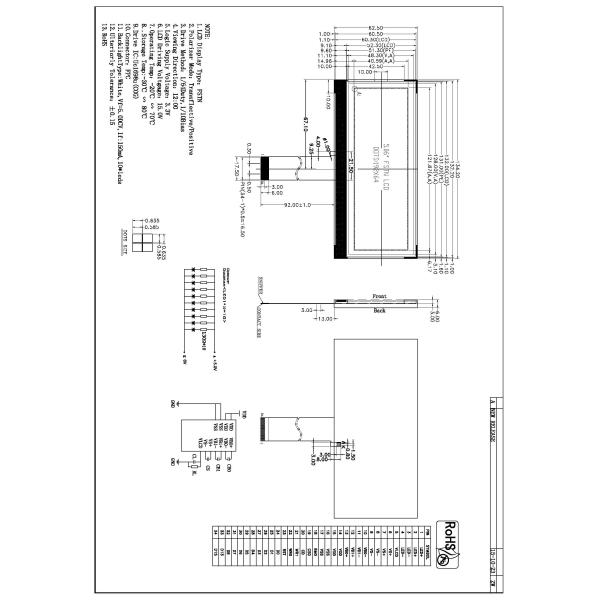

UDLP-GG19264B-FSPCELW-V01 COG Graphic LCD Module FSTN Positive Black On White 192*64 dots , 3.3V Power supply

  1. COG Graphic LCD Module
  2. Dots Format , 192x64
  3. Controller , UC1698 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Widely Use On Hand-held Device .
  7. CN1 SYMBOL CN1 SYMBOL
    1~2 LED-A 16~17 VSS
    3~4 LED-K 18 BM0
    5 VLCD 19 CS0
    6~7 VS+ 20 CD
    8~9 VS- 21 WR1
    10 VB0- 22 WR0
    11 VB1- 23 RST
    12 VB1+ 24~32 DB0~DB8
    13 VB0+ 33 DB13
    14~15

    VDD

    		 34 DB15

    Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
