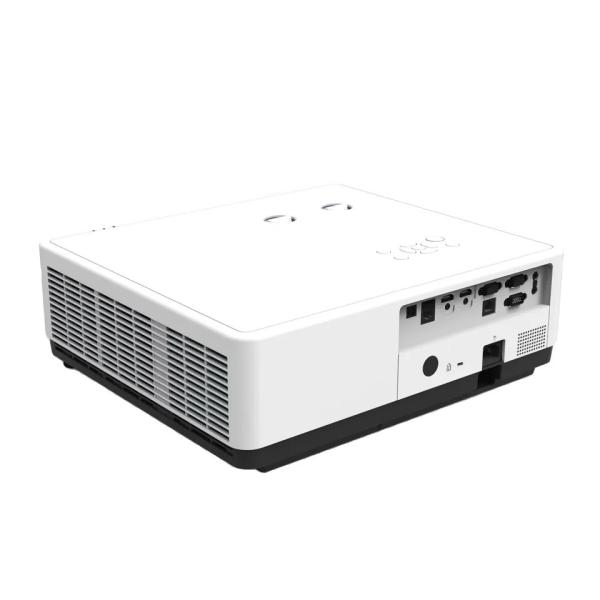

7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
Specifications
Throw Ratio :
1.2(wide)-2.0(tele)
Light source Life time :
Normal:20000H;ECO1 :30000H
Brightness :
7200 lumen
Brand Name :
SMX
Model Number :
MX-VL720U
Certification :
CE&ISO
MOQ :
1
Price :
1980
Payment Terms :
T/T,Western Union
Supply Ability :
10000/pcs per month
Delivery Time :
7-8 working days
Packaging Details :
Packaging Box Dimensions (WxDxH mm):510 (W)*498(D)*260(H)
Native Resolution :
WUXGA (1920 x 1200)
Contrast Ratio (FOFO) :
5000000:1
Lens Shift :
V:＋60%～0%、 H:±29%
Display Panel :
3x0.64” with MLA
Display Technology :
Liquid Crystal Display
Model :
MX-VL720U
Description
Professional-grade 7200 Lumens Laser Projector For Immersive Projection 360 Mapping System
HD Laser Projector: High-Definition Picture Quality

Whether you're a home theater enthusiast or a business professional, our laser projector delivers exceptional projection performance. Utilizing advanced laser technology instead of traditional bulbs, this cutting-edge device projects stunning, crystal-clear visuals with superior image quality and remarkable versatility.

7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
WUXGA Resolution (1920×1200 pixels)

WUXGA Resolution delivers high-definition video imagery that preserves vibrant details even during large-screen projections. This technology provides an energized visual experience that brings content to life with exceptional clarity and color accuracy. For example, when projecting a 150-inch image, WUXGA maintains precise texture rendering in scenes like forest landscapes or city skylines, avoiding pixelation common in lower resolutions.

7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
500,000:1 High Contrast Ratio

Reduces ambient light interference to ensure delicate, razor-sharp projection quality, enabling crisp text and graphics with professional-grade clarity. In conference rooms with ceiling lights, this technology maintains precise spreadsheet legibility and architectural renders, eliminating the "washed-out" effect common in standard projectors.

7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
Technical Specifications
Brightness & Display
Brightness (Lumens) 7200
Display Panel 3x0.64" with MLA
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light Source Lifetime Full Normal/Normal Model 20000hrs

ECO1 Mode 30000hrs

ECO2 Mode 30000hrs
Projection Lens
Lens Vendor RICOH Lens
F 1.5~2.08
f 17.2~27.7mm
Zoom/Focus Manual
Throw Ratio 1.2(wide)-2.0(tele)
Zoom Ratio 1.6
Screen Size 30-300 inch
Lens Shift V:＋60%～0%, H:±29%
Performance
Contrast Ratio (FOFO) 5000000:1
Noise(dB) Normal 38dB

ECO1 30dB

ECO2 28dB
Uniformity (Actual Min) - JISX6911 80%
Aspect Ratio Native:16:10 Compatible: 4:3/16:9
Input/Output Ports
VGA *1
HDMI 1.4B(IN) *2
USB-A *1
USB-B *1(Display)
RJ45 *1(Display)
HD BaseT *1(Optional)
Audio in (mini jack, 3.5mm) *1
VGA Output *1
Audio out (mini-jack, 3.5mm) *1
General Specifications
Speaker 16W*1
Dust Filter W/Filter
Filter Lifetime 8000h
Power Requirements 100~240V@ 50/60Hz
Power Consumption (Normal) (Max) 360W
Power Consumption (ECO1) (Max) 280W
Power Consumption (ECO2) (Max) 230W
ECO Standby Mode Power Consumption <0.5W
Operation Temperature 0 to 40°C
Operation Humidity 20-85%
Store Temperature -10 to 50°C
High Altitude 0~3000m
Dimensions & Weight
MAX Dimensions (WxDxH mm) 405 (W)*358(D)*137(H)
Net Weight (KG) ~7.9
Packaging Box Dimensions (WxDxH mm) 510 (W)*498(D)*260(H)
Gross Weight (KG) ~10.4
Applications
7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping 7200 Lumens Laser Projector with WUXGA Resolution and 5000000:1 for Immersive 3D Mapping
