Bright 3700 Lumen XGA Short-Throw Projector for Classrooms & Meetings
SMX MX-L3700XT: Bright, Engaging, and Uninterrupted Presentations for the Modern Classroom and Meeting Room
Engineered to deliver stunningly bright and vibrant presentations, even in well-lit environments. With its powerful 3700 lumens of color and white brightness, advanced 3LCD technology, and versatile short-throw capability, this projector is the ultimate solution for educators and business professionals who demand clarity, reliability, and interactive freedom.
Key Features & Benefits
- Brilliantly Bright 3700 Lumens: Capture everyone's attention with high brightness for clear presentations without the need to dim the lights
- Vivid, True-to-Life Color with 3LCD Technology: Enjoy vibrant colors and exceptional image quality thanks to dedicated three-chip imaging, ideal for charts, photos, and videos
- Space-Saving Short-Throw Flexibility: Project large images from proximity, minimizing shadows and allowing presenters to engage directly with the audience
- Sharp XGA Resolution for Crystal-Clear Data: XGA (1024 x 768) resolution ensures sharp text and detailed graphics, perfect for classrooms and offices
- Designed for Connectivity and Convenience: Features multiple ports (HDMI, VGA, USB) for easy device connection and network control, allowing for the management of several projectors from a single location
Specifications Summary
Technology 3LCD
Brightness 3,700 lumens (color & white)
Resolution XGA (1024 x 768)
Throw Ratio Short-Throw (0.55:1)
Contrast Ratio 15,000:1
Lamp Life Up to 10,000 hours (Eco Mode)
Key Connectivity HDMI, VGA In, VGA Out, USB, Audio In/Out, RS-232C, LAN
Built-in Speaker 10W
Ideal Applications

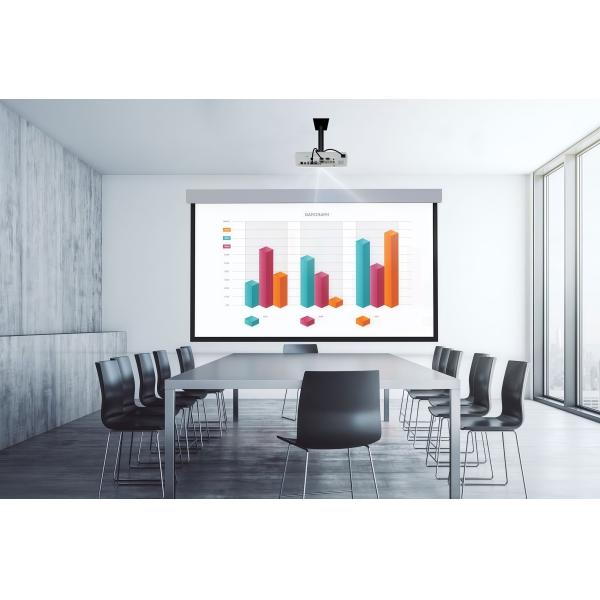

- Corporate Meeting and Conference Rooms
- Training Sessions and Workshops
- House of Worship Announcements and Presentations
- Any Environment Requiring a Bright, Reliable, and Interactive Display

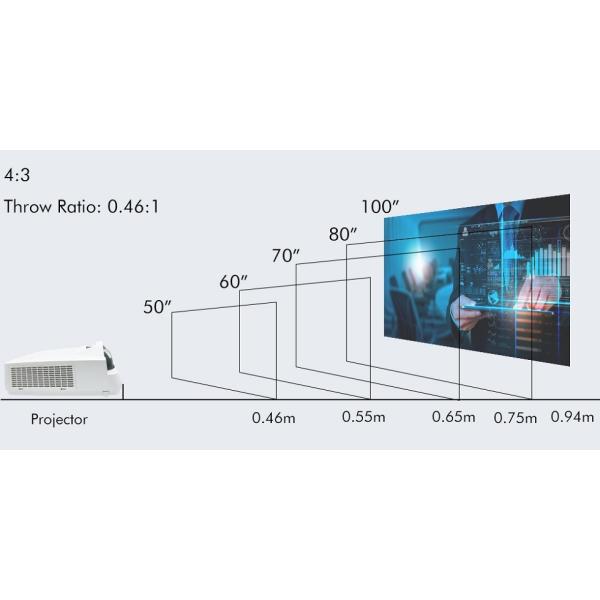

Short Throw Projection Distance

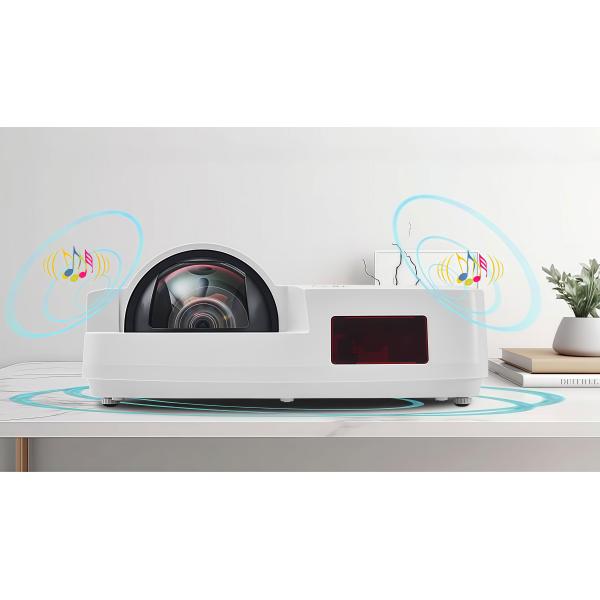

10W Speaker
Keystone Correction

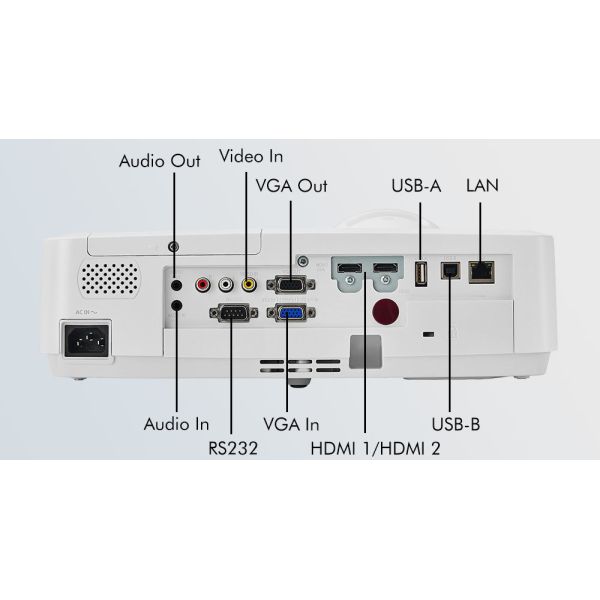

Multiple Ports, Flexible Connection
Detailed Technical Specifications
| Specification Category |
Details |
| Model No. |
MX-L3700XT |
| Brightness |
3700 Lumens |
| Display Technology |
Liquid Crystal Display (3LCD) |
| Native Resolution |
XGA (1024x768) |
| Lamp Consumption |
218W |
| Lamp Lifetime |
4000H (Normal) / 10000H (ECO) |
| Throw Ratio |
80"@0.75m; 0.46:1 |
| Contrast Ratio |
15,000:1 (with IRIS & ECO mode) |
| Noise Level |
ECO: MAX 34.9dB; Normal: 38.9dB |
| Input Ports |
VGA (x2), HDMI (x2), USB-A, USB-B, Audio In, Component Video, Composite Video, S-Video, RJ45 |
| Output Ports |
VGA, Audio Out |
| Control Ports |
RS232, RJ45 (Control), USB-B (upgrade) |
| Speaker |
1x10W |
| Power Consumption |
270W (Operating), <0.5W (ECO Standby), <3W (Network Standby) |
| Operating Temperature |
0℃~40℃ (35~ ECO) |
| Dimensions (WxHxD) |
347 x 341 x 141 mm |
| Net Weight |
4 kg |
| Standard Accessories |
Power cord, HDMI cable, Remote control |
