12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
Specifications
Brand Name :
SMX
Model Number :
MX-X12000U
Certification :
ISO， CE
Place of Origin :
China
MOQ :
1Pc
Payment Terms :
T/T,Western Union
Supply Ability :
15000 Pcs/Monthly
Delivery Time :
7-15days
Packaging Details :
Carton
Resolution :
WUXGA
Brightness :
12000Lumens
Aspect Ratio :
16:10
Projection Technology :
3LCD
Normal Mode :
20000hrs
Len Type :
Motorized/Manual Lens
Light Source :
Laser
Control :
Remote
Description
12000 Lumen WUXGA 3LCD Laser Projector for 3D Projection Mapping
The SMX MX-X12000U 12000 Lumen Laser Projector is a high-performance 3LCD laser projector designed for professional AV installations, large venue projection, and immersive projection mapping.
Featuring 12000 ANSI lumens brightness, WUXGA resolution (1920×1200), and a long-life laser light source, this projector delivers outstanding image clarity and reliability for demanding environments such as museums, exhibitions, theaters, theme parks, and digital art installations.
Thanks to advanced 3LCD display technology, the MX-X12000U produces vibrant colors, consistent brightness, and smooth visuals even on very large screens. Combined with 360° installation capability, edge blending, and geometric correction, this projector is an ideal solution for 3D projection mapping and multi-projector setups.
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
Why Choose the MX-X12000U 12000 Lumen Laser Projector
Ultra-High Brightness - 12000 ANSI Lumens
The MX-X12000U delivers 12000 ANSI lumens, making it perfect for large venue projection and environments with ambient lighting.
  • Clear images on large screens up to 500 inches
  • Ideal for projection-mapping buildings
  • Excellent visibility in stage events and exhibitions
  • High brightness for multi-projector blending systems
WUXGA Full HD+ Resolution (1920×1200)
The projector features WUXGA native resolution, providing higher clarity than standard Full HD.
  • Detailed visuals for projection mapping
  • High-definition content display
  • Better compatibility with professional AV systems
  • Ideal for simulation and immersive displays
Advanced 3LCD Color Technology
The 3LCD imaging system ensures balanced color brightness and accurate color reproduction.
  • No rainbow effect
  • Smooth video playback
  • Natural colors
  • Excellent image uniformity
This makes the MX-X12000U a preferred choice for museum projection, art exhibitions, and immersive environments.
Long-Life Laser Light Source (20,000 Hours)
The solid-state laser light source provides exceptional reliability with up to 20,000 hours of operation.
  • Minimal maintenance
  • No lamp replacement
  • Stable brightness over time
  • Lower total cost of ownership
This makes it ideal for 24/7 installations such as museums, attractions, and digital signage.
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
Designed for Projection Mapping
The MX-X12000U is engineered specifically for professional projection mapping applications.
Built-in advanced functions include:

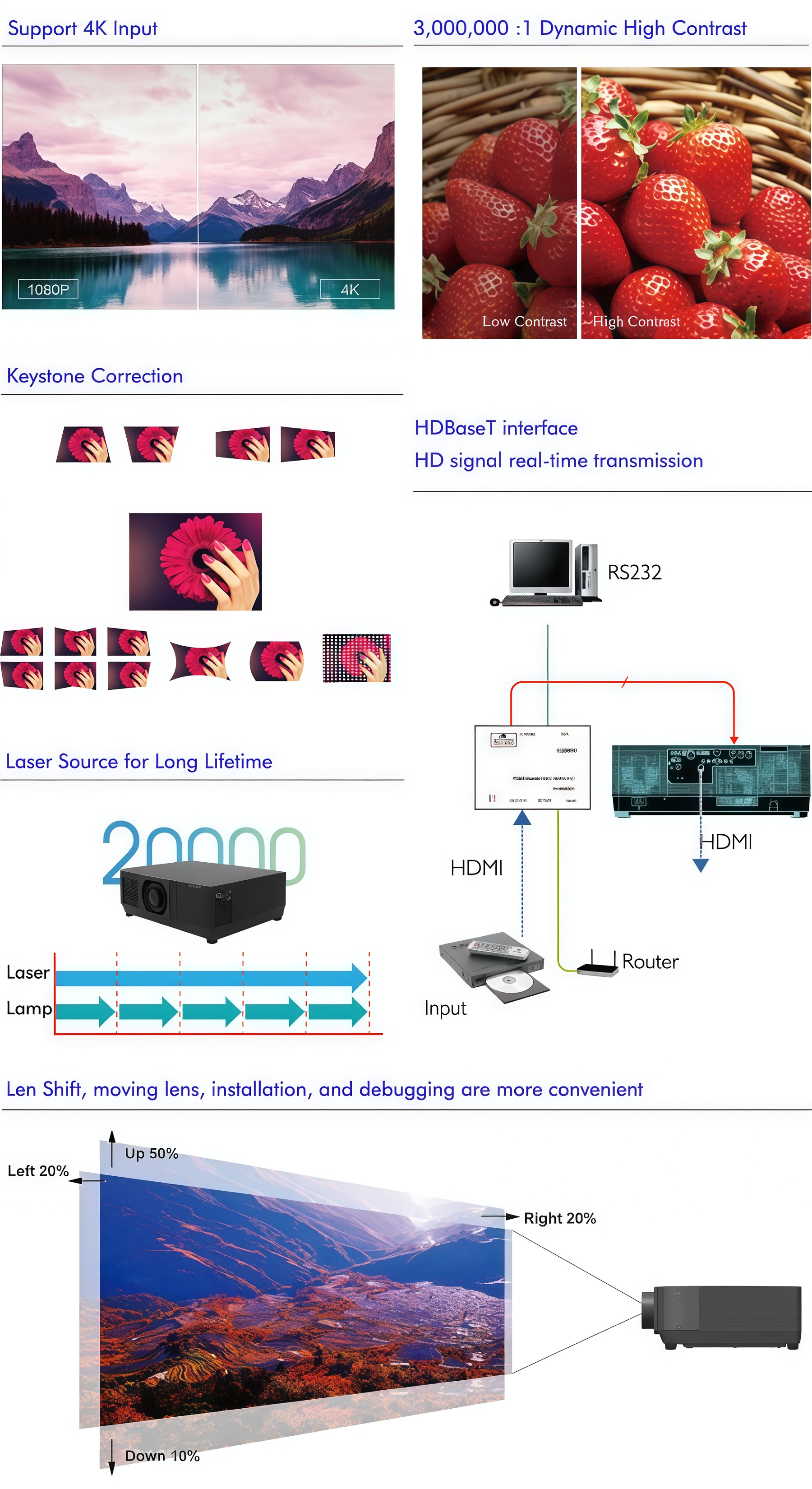

  • Edge Blending for multi-projector installations
  • Geometric Correction for Irregular Surfaces
  • 6-Corner Image Adjustment
  • Grid Image Calibration
These tools allow installers to create seamless panoramic projections or 3D mapping effects on buildings, sculptures, and stage structures.
Flexible Installation for Complex Environments
The projector supports 360° installation, allowing projection from almost any angle.
Installation options include:
  • Ceiling mounting
  • Portrait projection
  • Dome projection
  • Floor projection
  • Curved surface projection
Additional installation features:
  • Vertical lens shift
  • Horizontal lens shift
  • Interchangeable lenses
  • Motorized zoom and focus
These capabilities make it highly suitable for large venue AV projects and immersive installations.
Main Specifications
Model MX-X12000U
Brightness (ANSI Lumens) 12000 lumen
Resolution WUXGA (1920 x 1200)
Light Source Laser
Display Panel 3x0.76"
Display Technology Liquid Crystal Display
Light Source Lifetime Normal mode: 20000hrs
ECO mode: 20000hrs
Lens Type Zoom Lens
Zoom/Focus Manual
Throw Ratio (16:10) 1.46-2.95
Screen Size 40-500 inch
Lens Shift Vertical +50%, -10%
Lens Shift Horizontal ±20%
Contrast Ratio 100000:1
Noise Level Normal (90%): 35dB
ECO1 (75%): 32dB
ECO2 (45%): 32dB
Uniformity 80%
Aspect Ratio Native: 16:10
Compatible: 4:3/16:9/normal
I/O Ports
Input VGA: *1
HDMI 1.4(IN): *2
USB-A: *1 (5V/1.5A)
USB-B: *1 (Display)
RJ45: *1 (Display)
DVI-D: *1
HD BaseT: *1
HD-SDI(3G-SDI): Optional
Audio in (mini jack, 3.5mm): *1 (VGA/DVI-D share)
Output VGA: *1
HDMI 1.4(OUT): *1
Audio out (mini-jack, 3.5mm): *1
Control RS232: *1
RJ45: *1 (Control)
USB-B: *1 (For upgrade)
Wired Remote(IN): *1
Wired Remote(OUT): *1
Typical Applications
The 12000 lumen laser projector is widely used in professional environments, including:
Projection Mapping
  • Architectural projection mapping
  • Building facade projection
  • Stage mapping
  • Theme park attractions
Immersive Experiences
  • Digital art exhibitions
  • Museum installations
  • Immersive tunnels
  • Interactive displays
Large Venue Projection
  • Theaters
  • Auditoriums
  • Conference halls
  • Concerts
12000 Lumens WUXGA 3LCD Laser Projector with 20,000 Hours Laser Light Source for 3D Projection Mapping
OEM & Distributor Cooperation
SMX provides OEM / ODM projector manufacturing services for global distributors and system integrators.
Available services include:
  • Custom logo branding
  • Lens customization
  • Firmware customization
  • Packaging design
  • Bulk order supply
If you are a projection system integrator or AV distributor, we welcome cooperation worldwide.
