Specifications
Resolution :
4K
Model Number :
MX-PL9510K
Lenses :
Manual and Motorized
MOQ :
1
Packaging Details :
Carton Package
Brightness :
10000 lumen
Brand Name :
SMX
Contrast :
5,000,000:1
Supply Ability :
15000pcs/monthly
Light Source :
Dual-Color Laser
Certification :
ISO, ROHS, CE, FCC
Edge Blending :
Yes
Payment Terms :
T/T
Laser Life :
20,000 Hours
Delivery Time :
7-15days
Display Technology :
3LCD
Place of Origin :
China
Description
PROFESSIONAL LARGE VENUE LASER PROJECTOR

10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector

A high-brightness professional projection platform designed for immersive environments, simulation, projection mapping, museums, exhibitions and large venue applications.

10,000 ANSI High Brightness
4K High Resolution
3LCD Display Technology
Dual-Color Laser Light Source
5,000,000:1 Contrast Ratio
20,000H Laser Life
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector
Professional Projection Platform

Built for Professional Large-Screen Projection

The MX-PL9510K combines 10,000 ANSI lumens, 4K image capability, professional 3LCD imaging and a dual-color laser light source in a projector platform developed for demanding commercial AV installations.

Multiple lens options, built-in edge blending, advanced geometry correction and professional connectivity allow the projector to adapt to a wide variety of installation environments.

01

High Brightness

10,000 ANSI lumens for large images and professional environments.

02

High-Resolution Image

Detailed visual reproduction for professional large-screen content.

03

Flexible Optics

Short, standard and long throw lenses for different venue layouts.

04

Multi-Projector Ready

Built-in blending and geometry tools for immersive visual systems.

High Brightness

10,000 ANSI Lumens for Large Visual Environments

High-brightness output helps maintain clear and impactful images when projecting onto large screens or operating in professional environments with ambient light.

This makes the projector suitable for conference halls, exhibitions, museums, immersive installations and professional large-screen applications.

10,000 ANSI Lumens Large Screen Professional AV High Visibility
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector

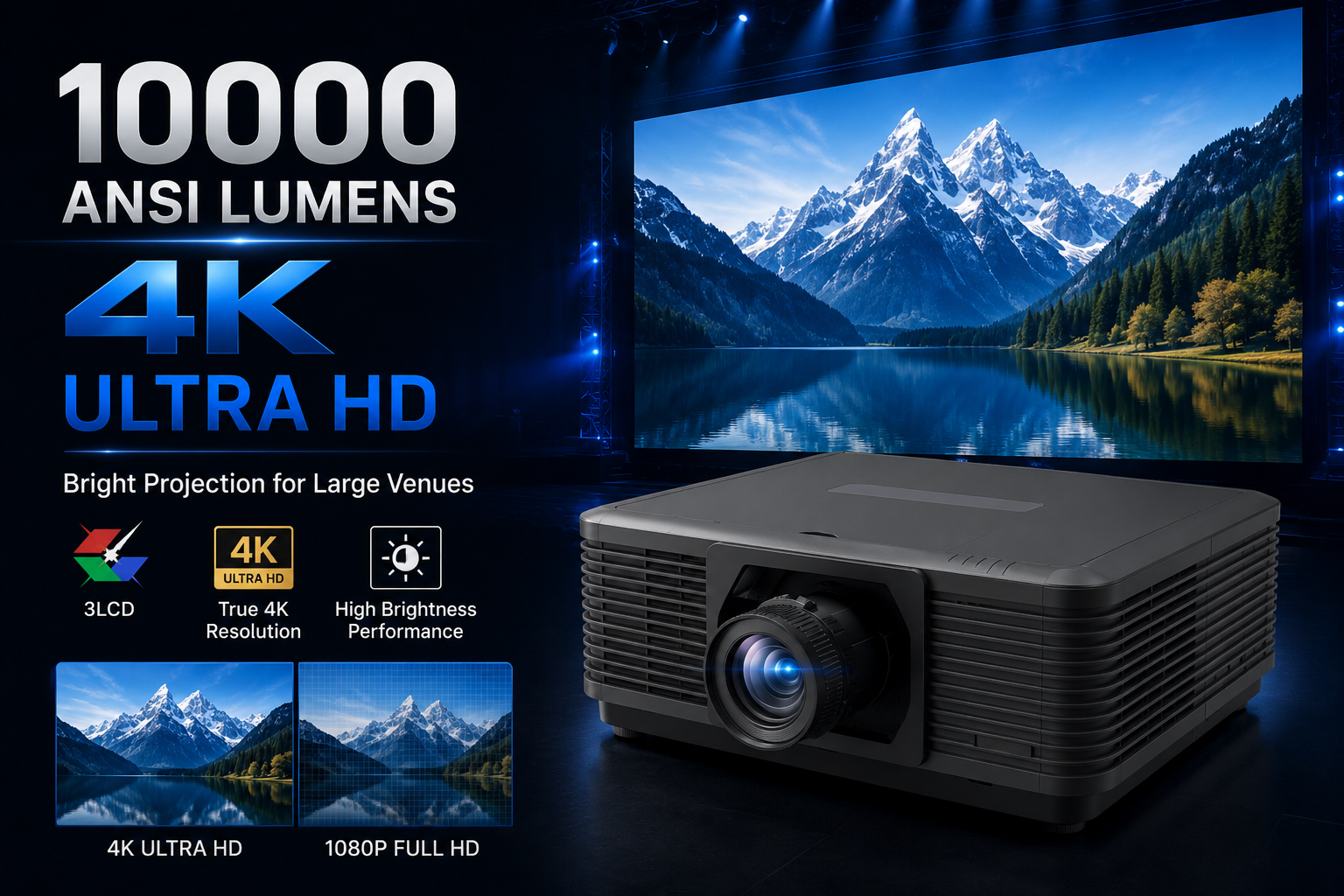

Image Quality

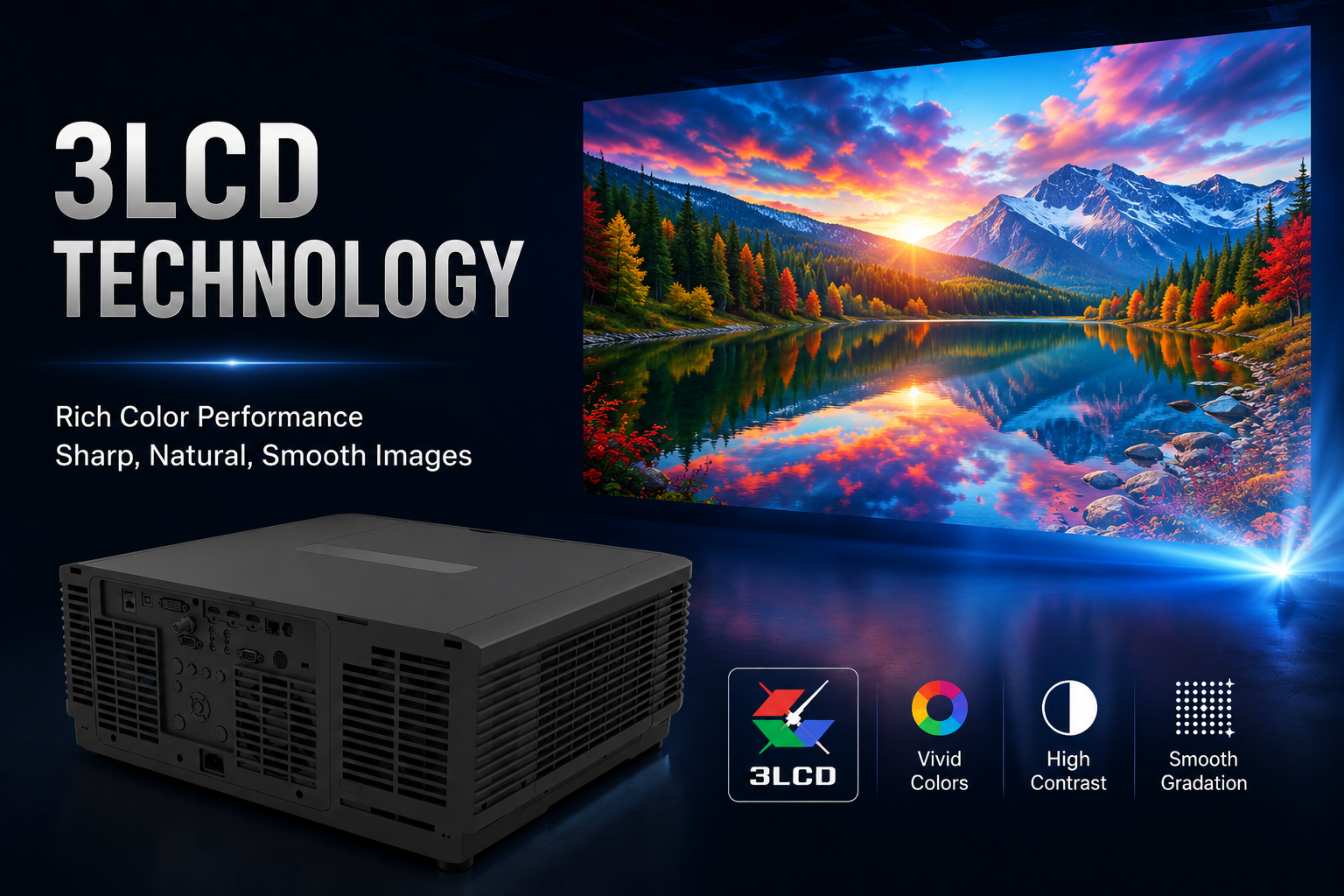

4K Detail with Professional 3LCD Technology

Professional 3LCD imaging provides balanced color output and detailed image reproduction for presentations, digital exhibitions, simulations and large visual content.

High-resolution imaging helps reproduce fine textures, graphics, technical data and small visual details across large projection surfaces.

4K 3 × 0.64" LCD Natural Color 5,000,000:1 Contrast
Laser Technology

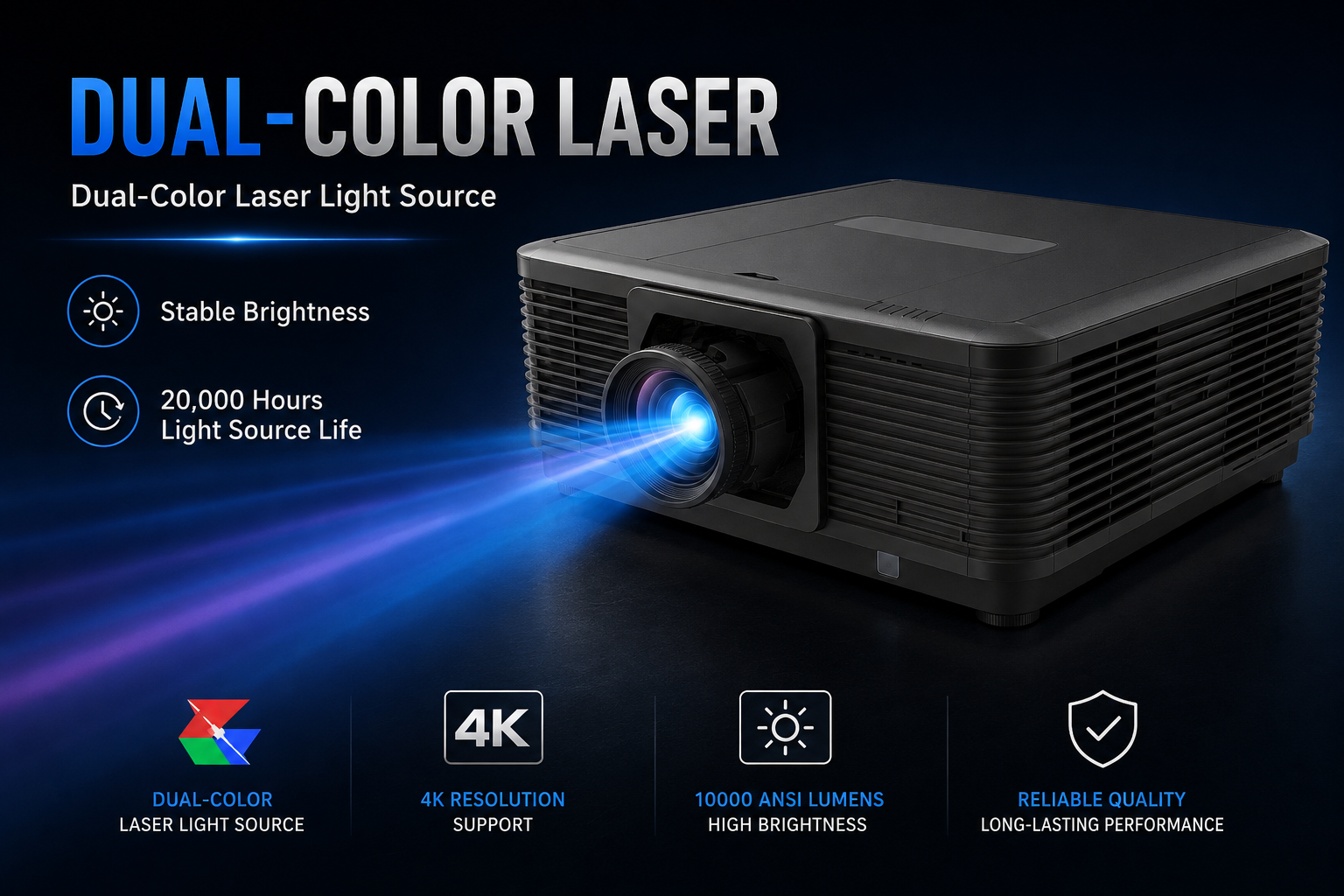

Dual-Color Laser Light Source

The dual-color laser light source is designed for stable professional operation with a rated light-source life of up to 20,000 hours.

20,000 Hours

Long-life laser illumination for professional installations.

Stable Output

Designed for consistent performance during extended operation.

Fast Operation

Laser technology supports convenient professional daily use.

Reduced Maintenance

Suitable for permanent and difficult-access installations.

10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector
Optical Flexibility

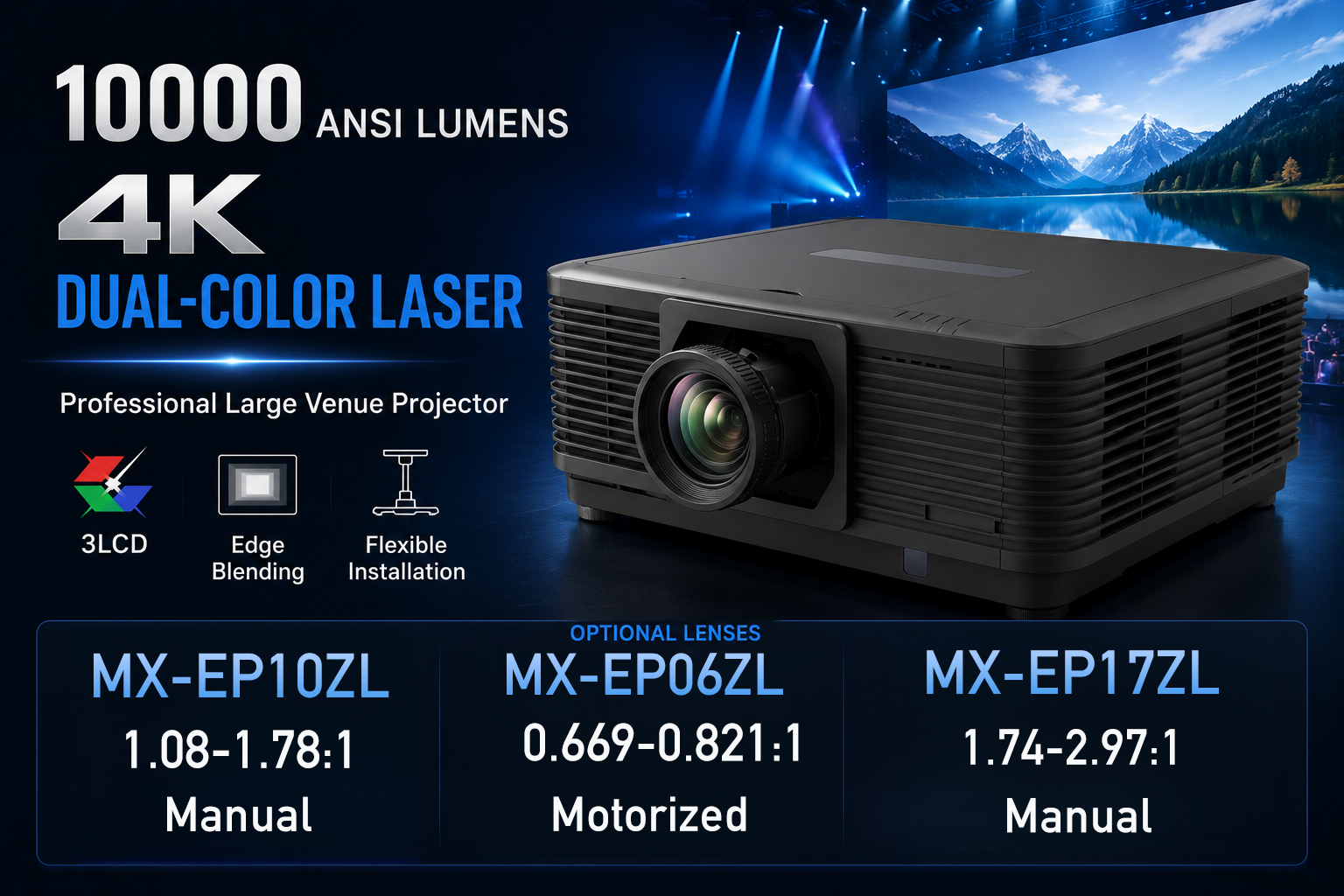

Three Lens Options for Different Installation Distances

Short, standard and long throw lens configurations allow one projector platform to adapt to different room depths, screen sizes and mounting positions.

Short Throw Lens
MX-EP06ZL
0.669–0.821:1
Motorized Zoom / Focus
1.21× Zoom
50–500 Inch
V +50%–0% / H ±23%
Standard Lens
MX-EP10ZL
1.08–1.78:1
Manual Zoom / Focus
1.6× Zoom
30–300 Inch
V +45%–0% / H ±21%
Long Throw Lens
MX-EP17ZL
1.74–2.97:1
Manual Zoom / Focus
1.7× Zoom
50–500 Inch
V +50%–0% / H ±23%
Installation Flexibility

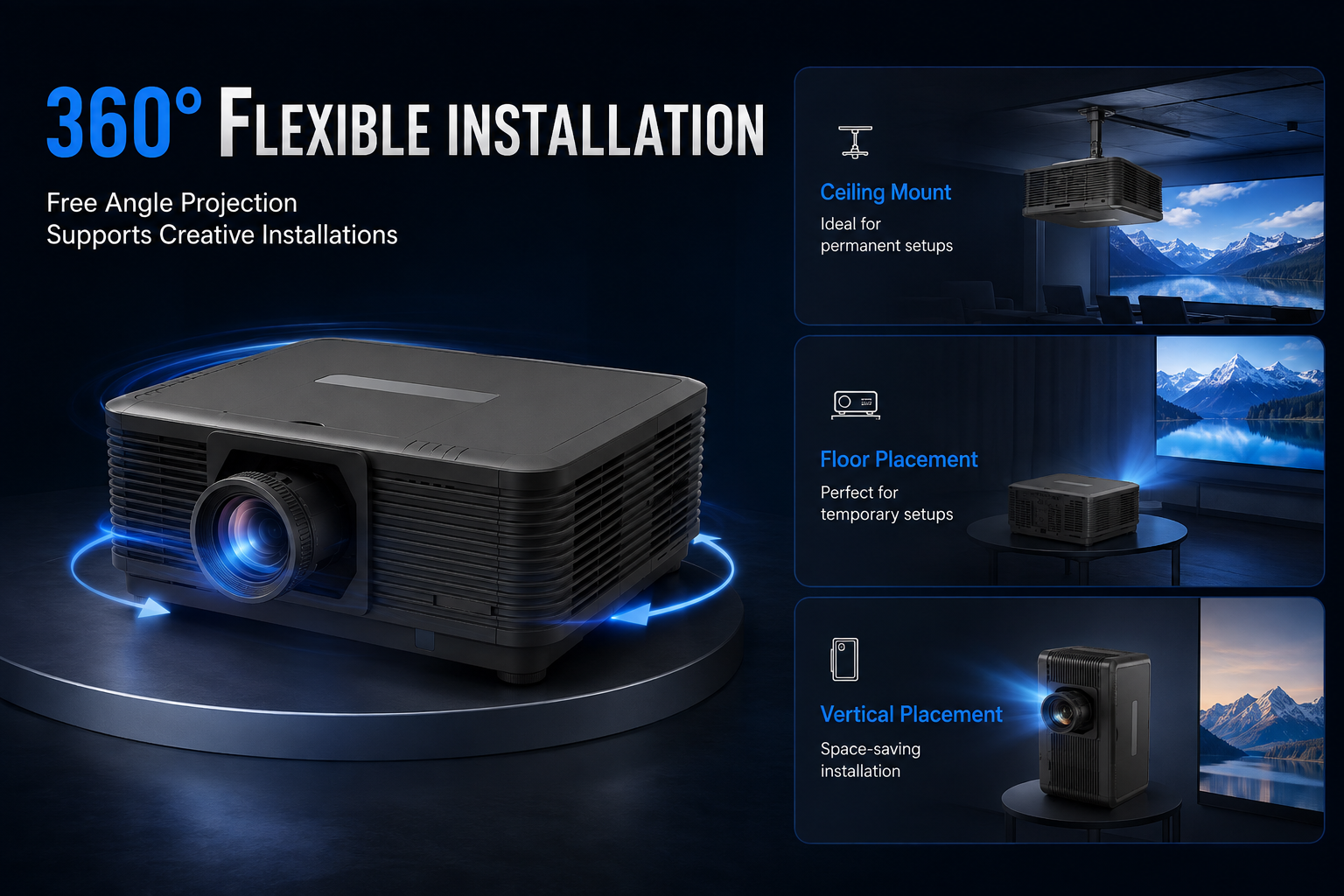

Wide Lens Shift & 360° Installation

Lens-shift adjustment provides greater flexibility where the projector cannot be installed directly on the centerline of the projection screen.

360° installation support allows the projector to adapt to ceiling, angled, portrait and creative engineering installations.

✓ Vertical lens shift up to +50%–0%
✓ Horizontal lens shift up to ±23%
✓ 360° projector installation
✓ Flexible off-center mounting
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector
Advanced Image Alignment

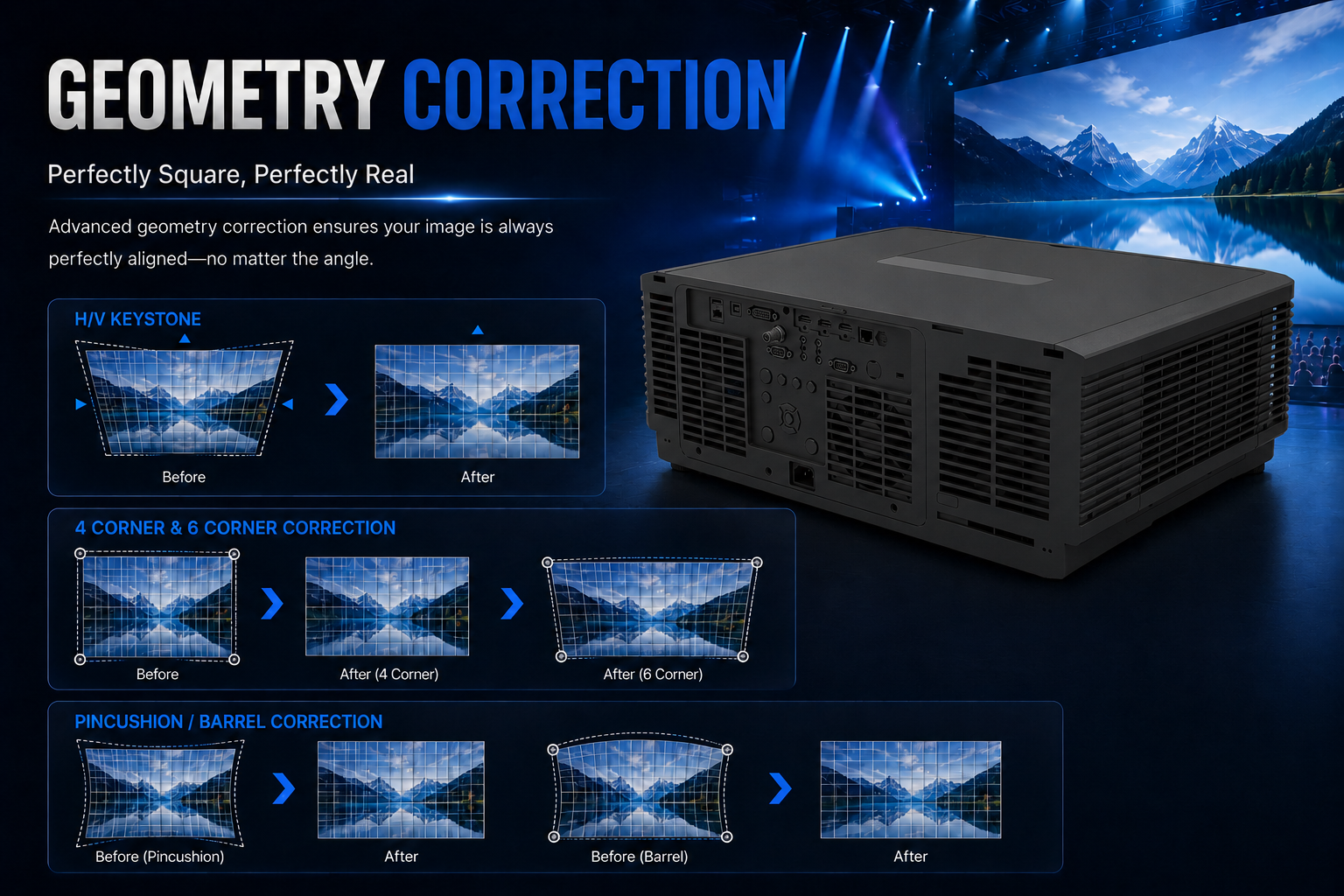

Professional Geometry Correction

Advanced geometry controls help align images with conventional screens, curved surfaces and complex architectural environments.

H / V Keystone 4-Corner 6-Corner Grid Image Tune Pincushion Barrel Correction
Multi-Projector Projection

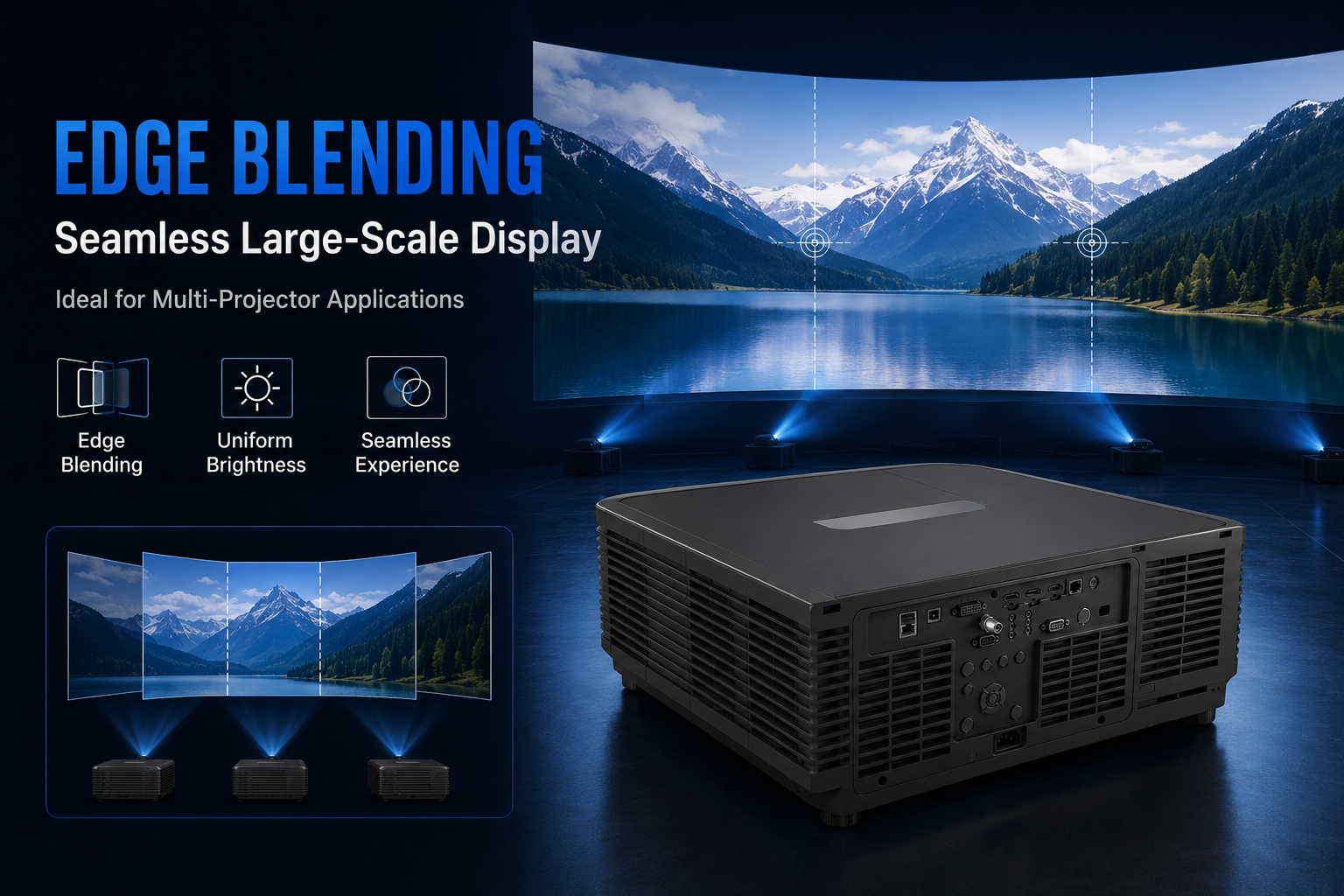

Built-In Edge Blending

Built-in edge blending allows multiple projector channels to create wider and more immersive visual canvases.

Combined with geometry correction, the platform can support panoramic projection, immersive rooms, simulation environments and curved-screen applications.

Built-In Edge Blending Multi-Projector Panoramic Image Immersive Projection
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector
Professional AV Integration

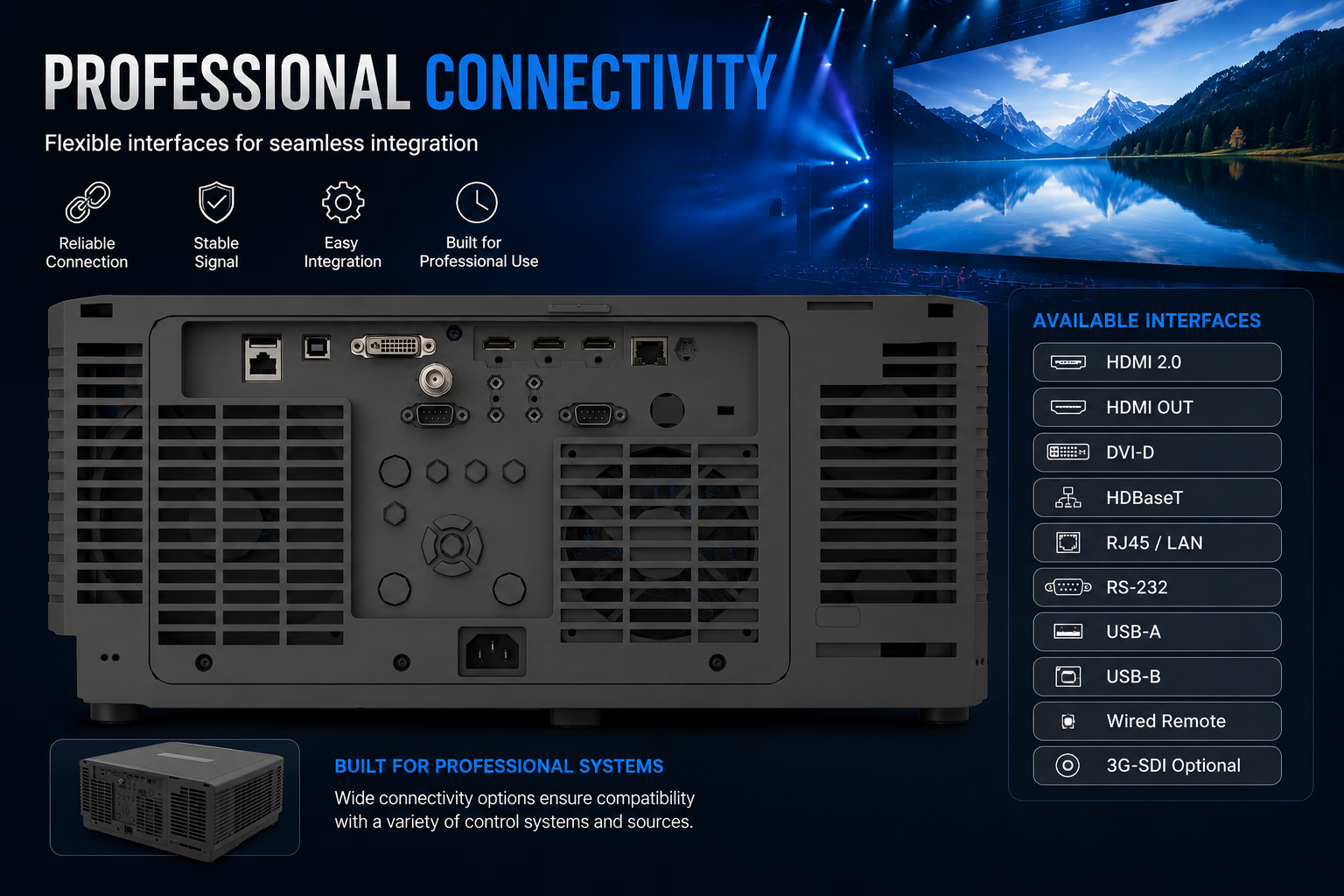

Professional Connectivity for Complex AV Systems

A broad range of video, output and control interfaces supports integration with professional media servers, AV switchers, control processors and permanent installation infrastructure.

10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector
Video Input
HDMI 2.0 ×2
DVI-D
HDBaseT
3G-SDI Optional
USB-A
Video / Audio Output
HDMI OUT
Audio OUT
Audio IN
Network Display
Professional Control
RS232
LAN Control
DMX512
Wired Remote IN / OUT
USB Upgrade
System Management

Network & Centralized Projector Control

Professional network and control protocols make the projector suitable for permanent installations and multi-projector management environments.

Crestron RoomView

Professional room and AV management integration.

AMX Discovery

Projector discovery in compatible AV networks.

PJLink

Standardized network projector control.

DMX512

Integration for stages, events and visual environments.

Engineering Features

Designed for Professional Installation

Sealed Design

Designed for dependable professional operation.

Filterless Design

Helps simplify routine maintenance requirements.

NFC

Supports convenient professional configuration workflows.

32 dB Quiet Mode

Suitable for noise-sensitive presentation environments.

Direct Power On Signal Power On Auto Power Off Super Resolution Digital Zoom ×4 Shutter / Blank User Logo Real-Time Clock
Professional Applications

One Projector Platform for Multiple Professional Applications

High brightness, flexible lens options, built-in edge blending and advanced geometry correction allow the MX-PL9510K to support a wide range of professional visualization projects.

10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector Immersive
APPLICATION 01

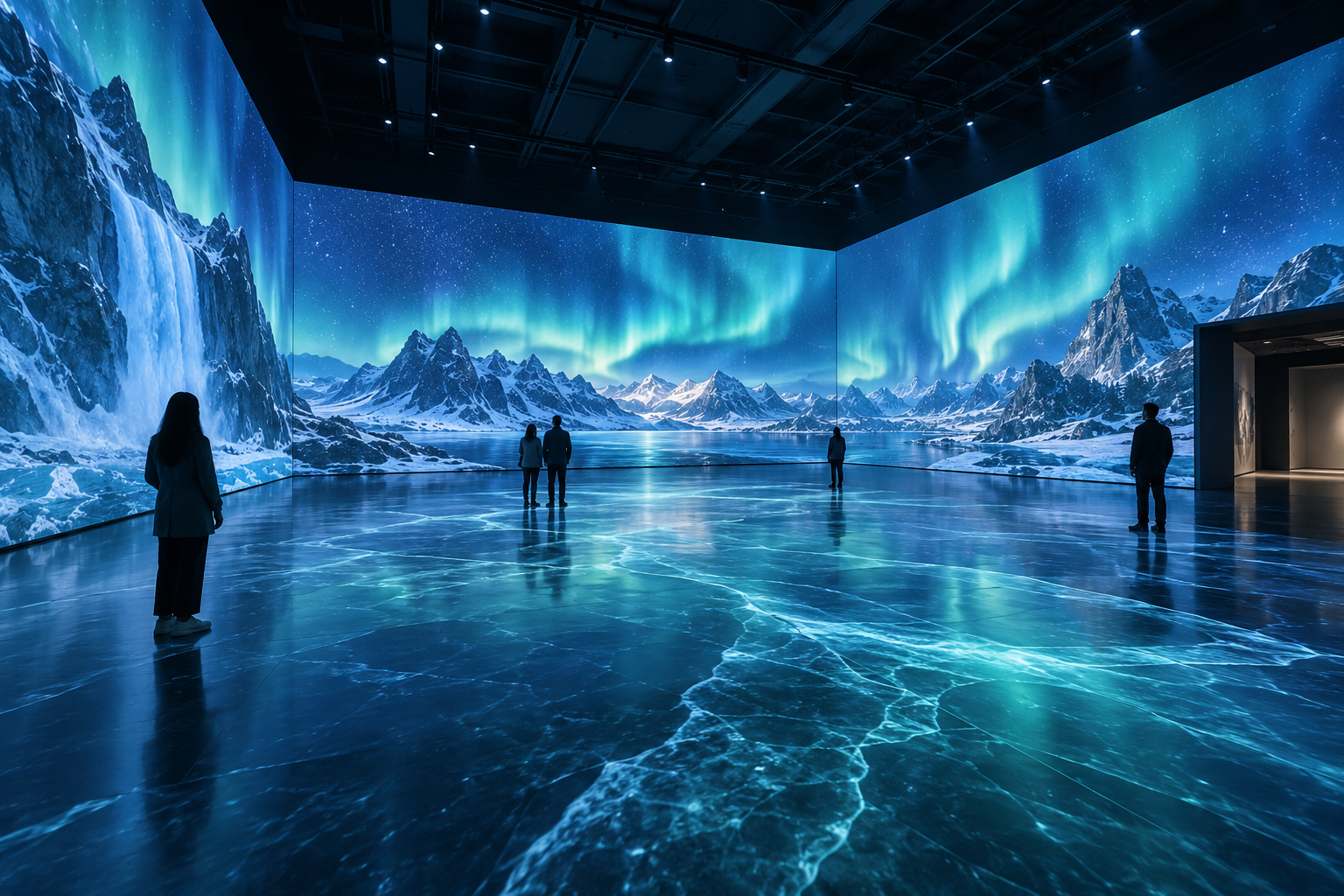

Immersive Projection

Multi-wall and panoramic visual environments for museums, digital art and immersive experience spaces.

Multi-Projector Edge Blending Large Canvas
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector Mapping
APPLICATION 02

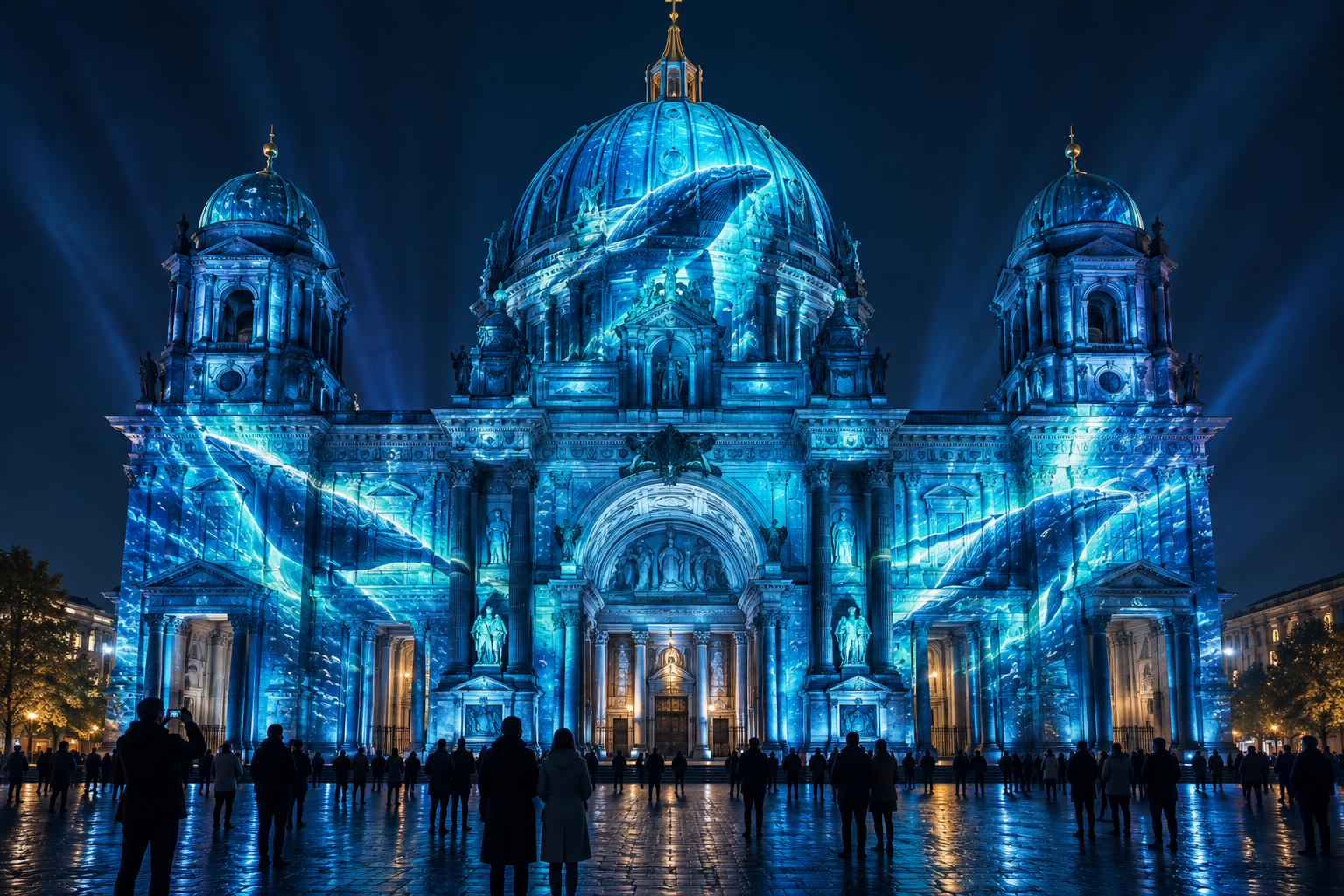

Projection Mapping

Projection onto architecture, stages, large structures and irregular surfaces for visual events.

High Brightness Geometry Large Surface
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector Simulation
APPLICATION 03

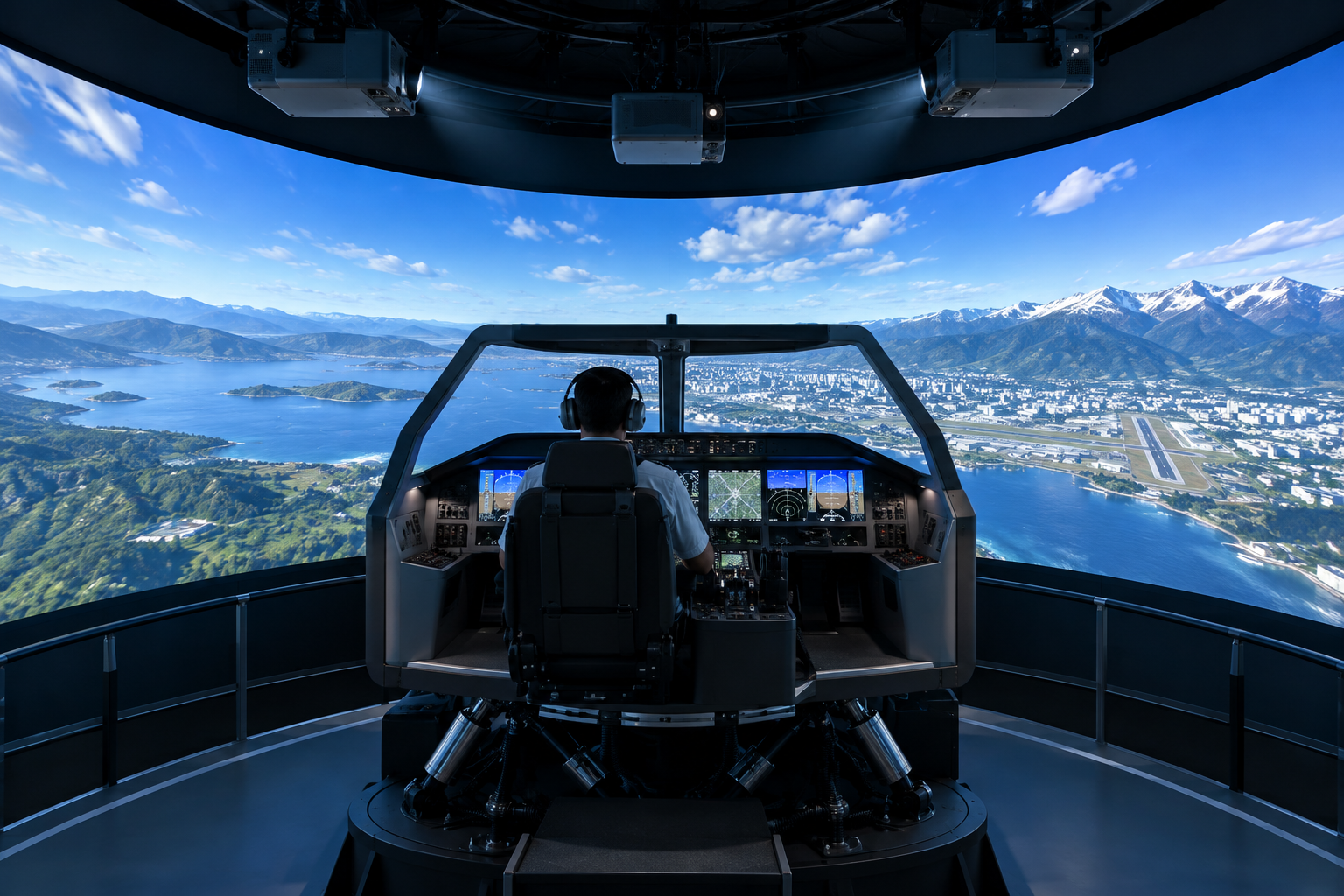

Simulation

Professional visualization for flight, driving, racing and training simulation systems.

Curved Screen Panoramic Training
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector Large Venue
APPLICATION 04

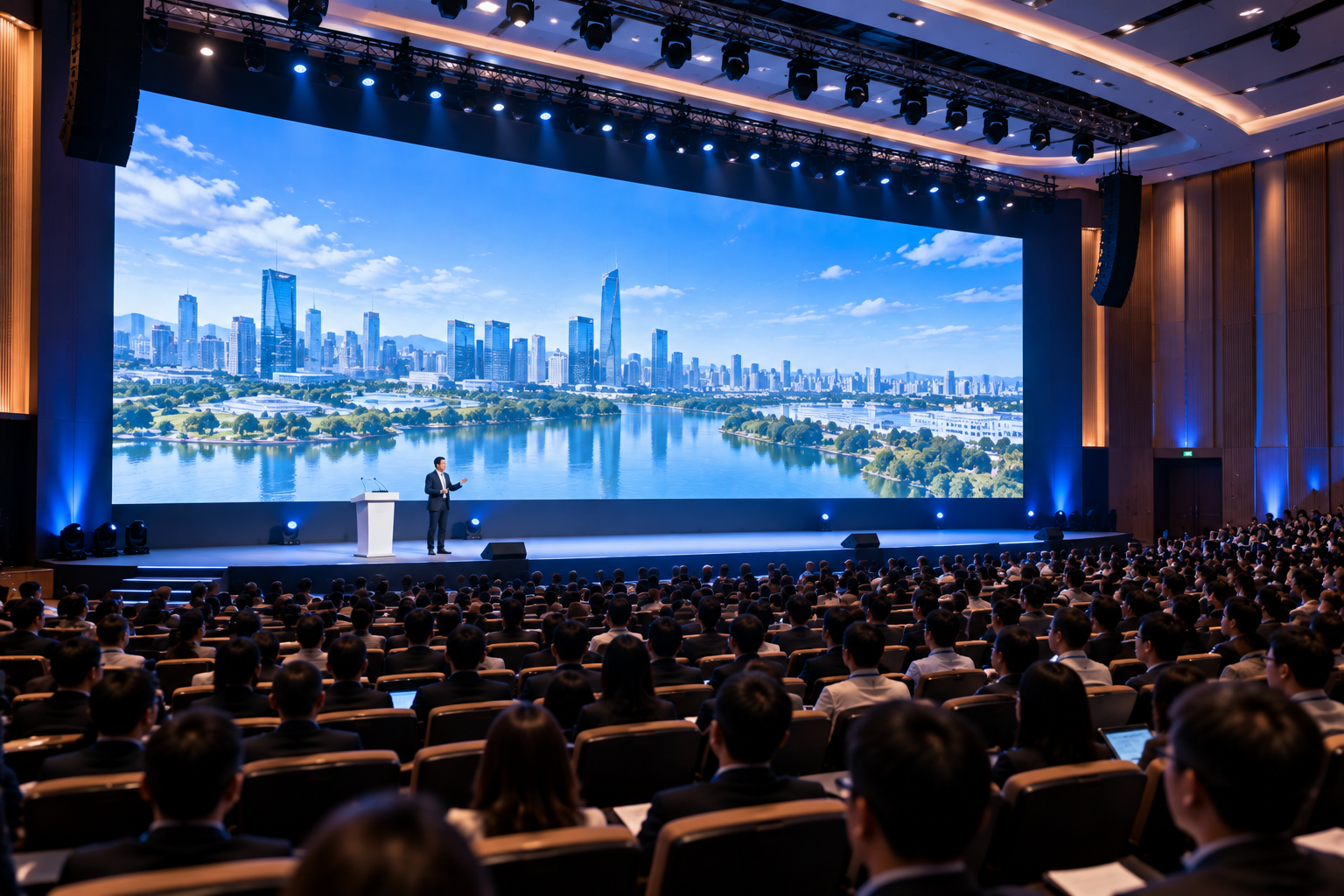

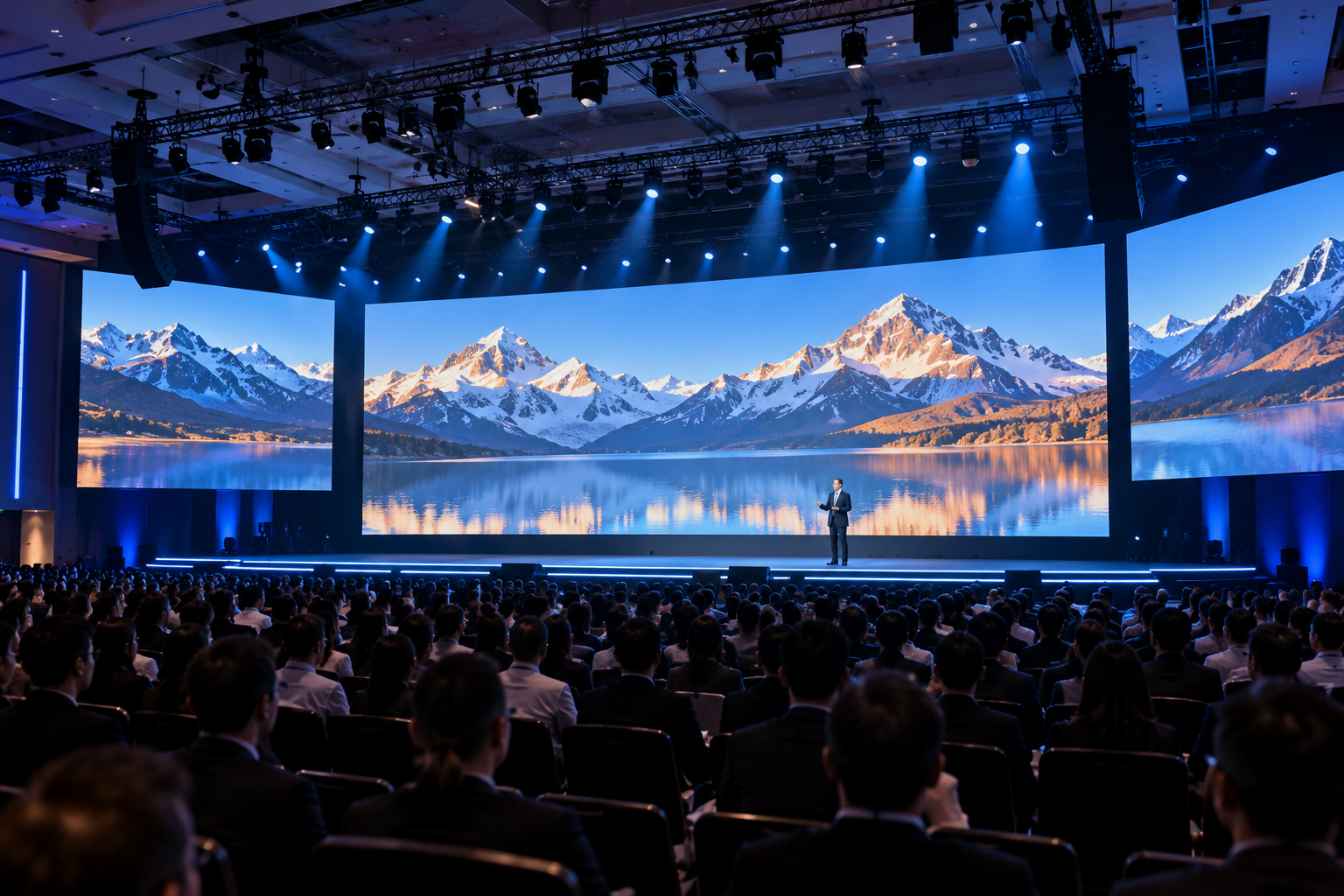

Large Venue Projection

High-brightness projection for conference halls, auditoriums, event stages and large screens.

10,000 ANSI Large Screen Flexible Lens
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector Exhibition
APPLICATION 05

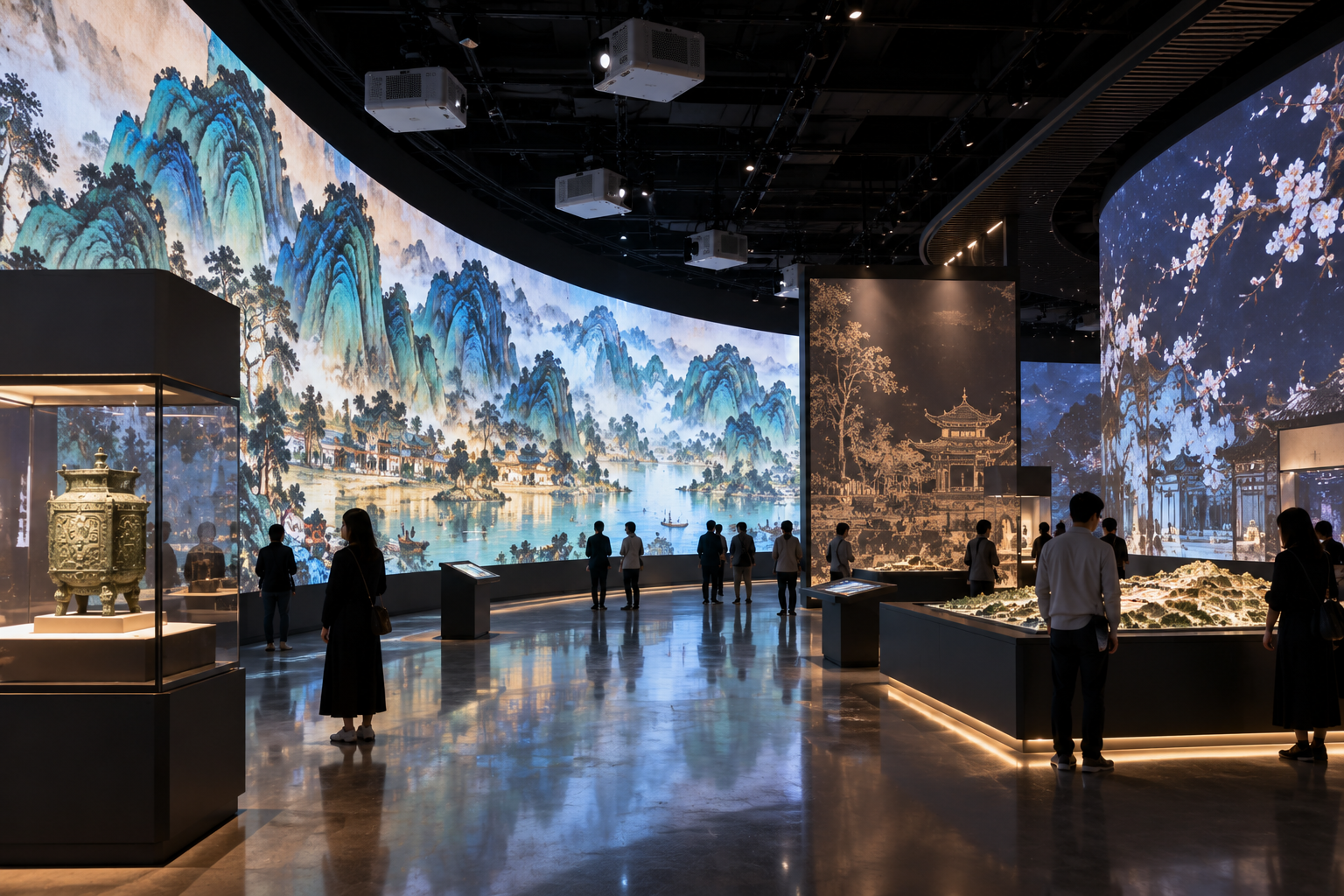

Museum & Exhibition

Digital storytelling, cultural exhibitions and large-scale visitor experience installations.

Digital Art Museum Experience
10000 ANSI Lumens 4K 3LCD Dual-Color Laser Projector Professional AV
APPLICATION 06

Conference & Auditorium

Clear large-screen presentations for corporate halls, universities and professional auditoriums.

Presentation 4K AV Integration
Technical Specifications

MX-PL9510K Core Specifications

Specification MX-PL9510K
Brightness 10,000 ANSI Lumens
Display Technology 3LCD
LCD Panel 3 × 0.64 Inch
Resolution 4K
Video Signal Input Up to 4K @ 60Hz
Light Source Dual-Color Laser
Laser Life Up to 20,000 Hours
Contrast Ratio 5,000,000:1
Aspect Ratio 16:10
Uniformity 80%
Edge Blending Yes
Geometry Correction H/V Keystone, 4-Corner, 6-Corner, Pincushion / Barrel Correction, Grid Image Tune
Installation 360°
Noise Normal 39 dB / Quiet 32 dB
Operating Temperature 5–45°C
Power Supply 100–240V AC, 50/60Hz
Normal Power Consumption 755W
Standby Power <0.5W
Dimensions 490 × 510 × 205 mm
Net Weight Approx. 18.5 kg
Lens Specifications

Short, Standard & Long Throw Lens Options

Specification MX-EP06ZL MX-EP10ZL MX-EP17ZL
Lens Type Short Throw Standard Long Throw
Throw Ratio 0.669–0.821:1 1.08–1.78:1 1.74–2.97:1
Zoom / Focus Motorized Manual Manual
Zoom Ratio 1.21× 1.6× 1.7×
Focal Length 9.66–11.65 mm 15.3–24.6 mm 24.47–41.6 mm
Screen Size 50–500" 30–300" 50–500"
Vertical Lens Shift +50%–0% +45%–0% +50%–0%
Horizontal Lens Shift ±23% ±21% ±23%
PROFESSIONAL PROJECT SUPPORT

Need Help Selecting the Right Projector & Lens?

Send us your screen dimensions, installation distance and application requirements. Our team can help evaluate the suitable projector configuration, lens, throw ratio and mounting position.

Please provide:

Screen Width • Screen Height • Projection Distance • Mounting Position • Application • Required Image Size
