300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272
Specifications
Place of Origin :
GUA,CN
Brand Name :
LCD Mall
Packaging Details :
International standard export packing
Supply Ability :
100000pcs/month
MOQ :
500pcs
Price :
$13.50/pieces 500-1999 pieces
Certification :
CE ISO9001 ROHS
Delivery Time :
2~4 weeks
Payment Terms :
T/T;Western Union;Paypal;L/C
Type :
TFT-LCD panel
Display Size :
4.36inch
Supplier Type :
China factory directly supply
Resolution :
480*272
Interface :
MCU
Size :
4.3inch
Viewing Angle :
6 O'clock
Driver IC :
OTA5180A/SSD1963
Storage Temperature :
-30 C~+80
Luminance :
300 Cd/m^2
Warranty :
1 Year
Operating Temperature :
-20-+70
Outline Dimension :
105.5*67.2
Port :
Shenzhen
Description

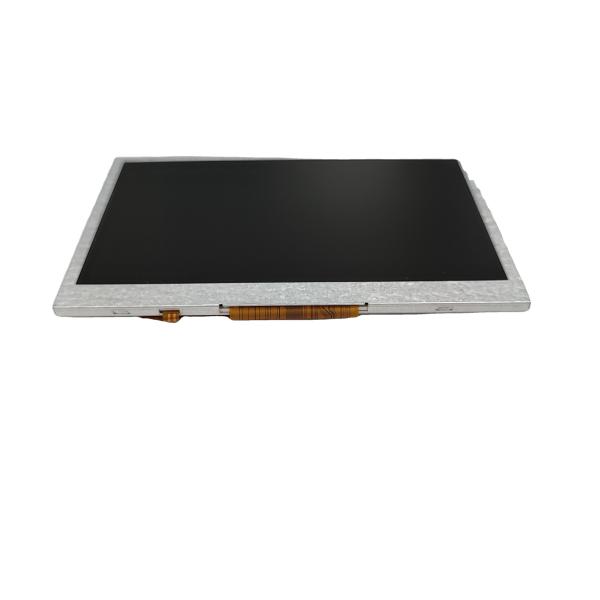

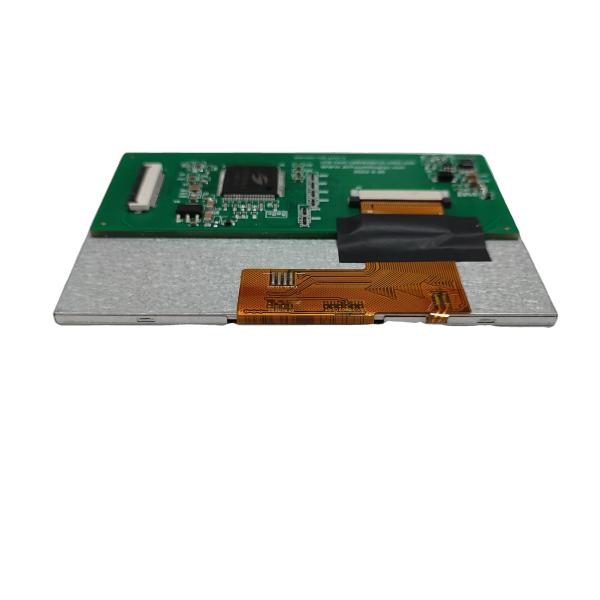

Custom Industrial Touch Panel 4.3inch TFT /Transmissive / Normally White with MCU 480*RGB*272+PCBA
TFT LCD
Product Description

Product Description
Brand Name LCD MAll
Size

4.3 Inch
Type TFT LCD+PCBA
Resolution

480(RGB)×272
OD area

105.5MM(L) × 67.2MM(w)
AA area

95.04MM(L) × 53.86MM(W)
Interface

MCU
Brightness 300 nits
Operating Temp -20 °C~+ 70 °C
Storage Temp

-30 °C~+ 80 °C

Company Information

300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272

Our tft lcd display are widely used on infrared thermometer, coffee machine, treadmill, industrial control, elevator, stereo system, car in-dash board videao door bell etc.

300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272

Our Work shop, the total factory area reaches 6,000M*M

300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272

Factory Staff:300

Production Line: Total 10 lines

3 Automatic COG/FOG bonding Production Lines

2 Semi-Automatic Production Lines

3 Backlight assembly lines

2 Capacitive touch panel assembly line

300 Nits Custom LCD Display TFT 4.3 Inch With MCU 480*RGB*272

Our Services

1. Professional team (Nearly 20years experiences)

2. One-top service (from design, manufacture to after-sale service).

3. Complete production line (80% applied to automation).

4. Quality assurance (FCC, CE, RoHS, REACH).

5. Management (ISO9001:2008, SGS)

6. Support customization (Driver boards for AV,VGA,MCU and other interfaces, support LCD screen of different sizes and resolutions)
