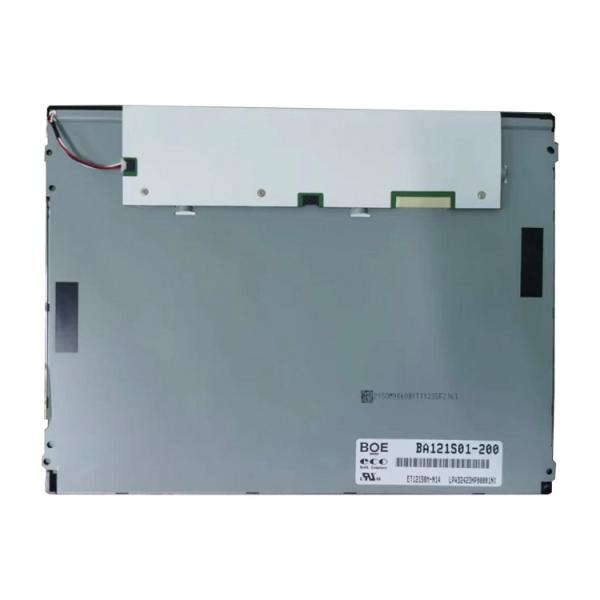

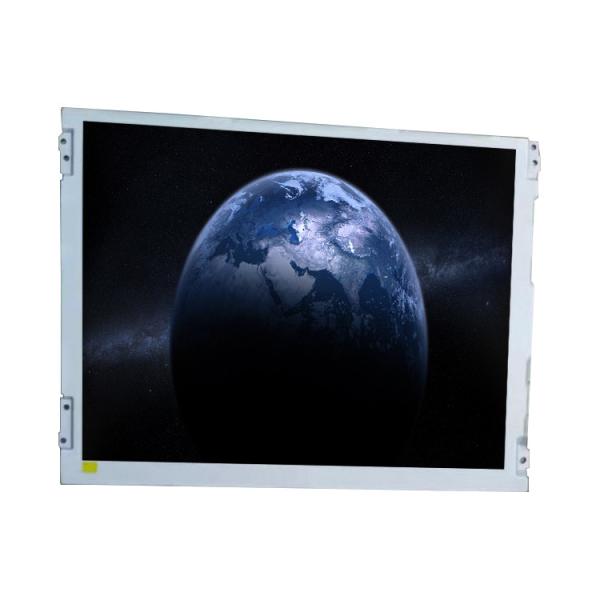

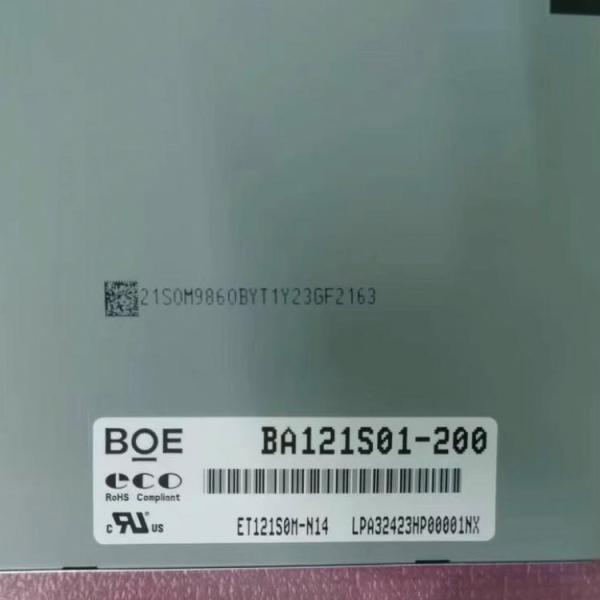

Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Specifications
Brand Name :
BOE
Model Number :
ET121S0M-N14
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
ET121S0M-N14
Diagonal Size :
12.1"
Resolution :
800(RGB)×600, SVGA 82PPI
Display size :
246(W)×184.5(H) mm
Bezel Opening :
249.05(W)×188.30(H) mm
Outline Dim. :
279(H)×209(V) ×9.6(D) mm
Brightness :
400 cd/m² (Typ.)
Contrast Ratio :
800:1 (Typ.) (TM)
Weight :
630g (Max.)
Designed For :
Industrial / Medical Imaging
Description

Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution

Original BOE 12.1-inch LCD screen ET121S0M-N14 800*600 Resolution LCD Panel


ET121S0M-N14 Product details :

BOE LCD Screen ET121S0M-N14
Brand BOE
Model P/N ET121S0M-N14
Diagonal Size 12.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 82PPI
Pixel Format RGB Vertical Stripe
Active Area 246(W)×184.5(H) mm
Bezel Opening 249.05(W)×188.30(H) mm
Outline Dim. 279(H)×209(V) ×9.6(D) mm
Treatment Antiglare (Haze 25%)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
View Direction 12 o'clock
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 80/80/65/75 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K/16.7M 55% NTSC
Light Source WLED , 30K hours , With LED Driver
Weight 630g (Max.)
Designed For Industrial / Medical Imaging
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
Original BOE 12.1-inch LCD screen ET121S0M-N14 800 * 600 Resolution LCD Panel

ET121S0M-N14 Contact us:

If you have any questions,you are welcome to contact our customer service staffs by email. We strive to answer all questions and resolve any problems as quickly as possible.

ET121S0M-N14 Business Hours:

(Beijing Time)Mon-Sat:10:00-18:00(except most national holiday)


ET121S0M-N14 Shipping and Package :
Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution

ET121S0M-N14 Delivery:

We can send out the items within 7 working days after payment confirmation.

The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.

If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.

ET121S0M-N14 Return value:


1,lf returned,the full refund will be made State of health.


2,Commodities that are damaged or missing components will not be renewedFundable.

ET121S0M-N14 FAQ:

Q: Can you give me a discount if I need a large quantity of ET121S0M-N14 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of ET121S0M-N14 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods ET121S0M-N14 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods ET121S0M-N14 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
