0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
Specifications
Place of Origin :
China
Flat Cable Length :
20 mm
Brand Name :
ORIENTRONIC
Number of Pins :
Plug-in: 15-pin
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Dimensions :
0.95-inch color AMOLED display
Pixel Pitch :
90x90 (μm)
Delivery Time :
4~6 Working Days
Control Chip :
SH8501
Panel Dimensions :
12.8 x 27.35 x 1.1 (mm)
Display Area :
10.08 x 21.6 (mm)
Supply Ability :
Design based on the product
Display Colors :
Color
Viewing Angle :
Full viewing angle
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity
Operating Temperature :
-20 to 70°C
Resolution :
120x3 (RGB)x240
Packaging Details :
Prices are set based on design and quantity.
Interface Type :
4-Wire SPI
Description

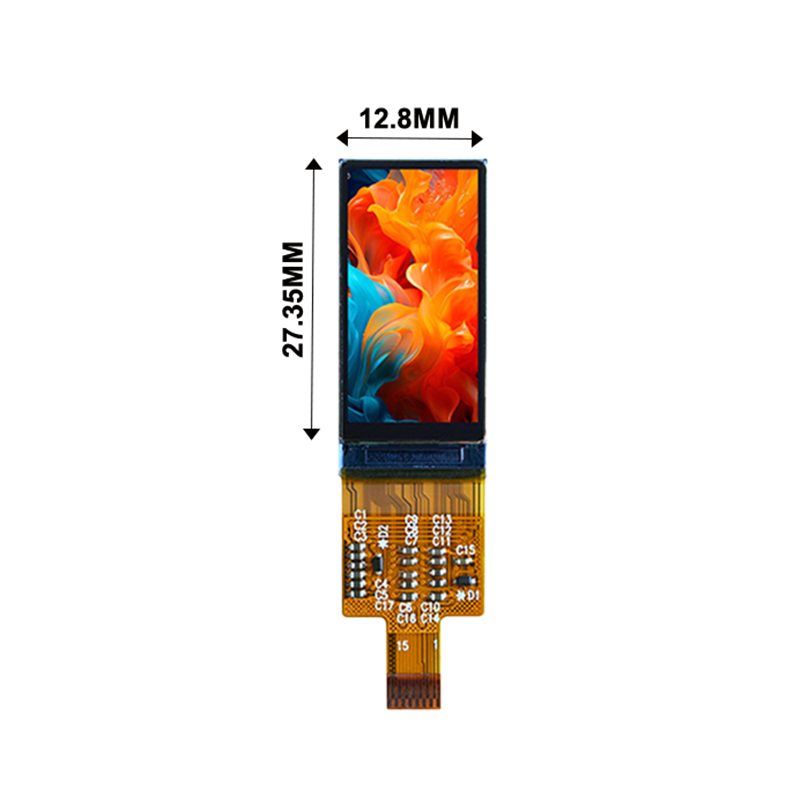

0.95-inch AMOLED screen size

0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen

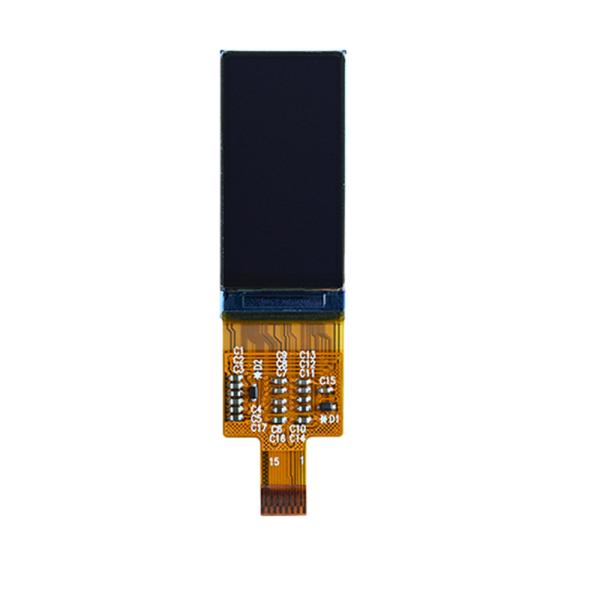

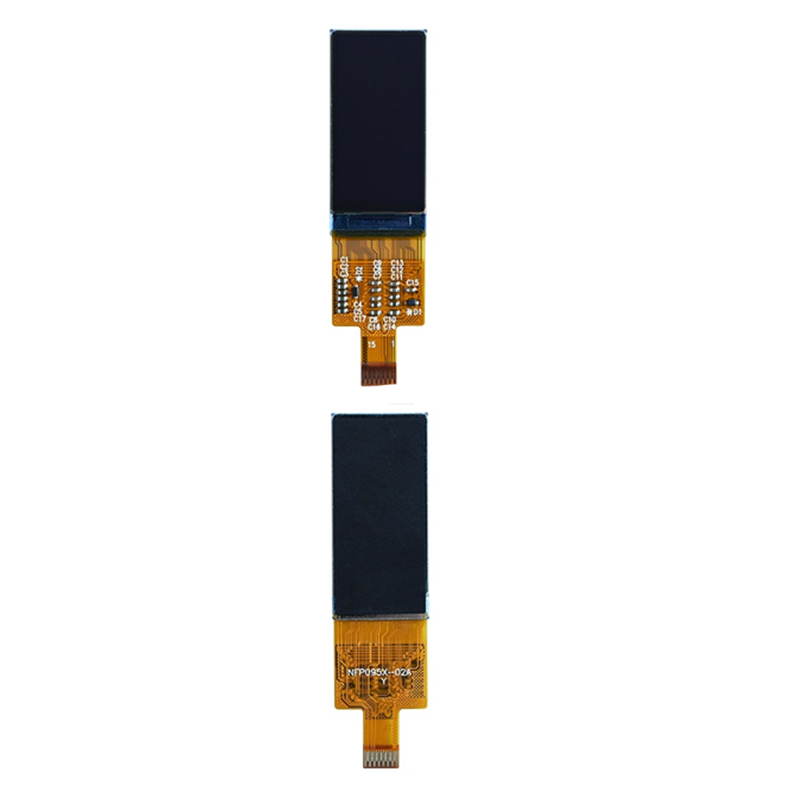

Product Details of the 0.95-inch AMOLED Display

0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen

Pinout for the 0.95-inch AMOLED Display

Pin Symbol Pin Symbol
1 ELVSS 9 CS
2 ELVDD 10 SCL
3 MTP 11 RS
4 VCC 12 SDA
5 IOVCC 13 GND
6 SWIRE 14 GND
7 TE 15 GND
8 RESET

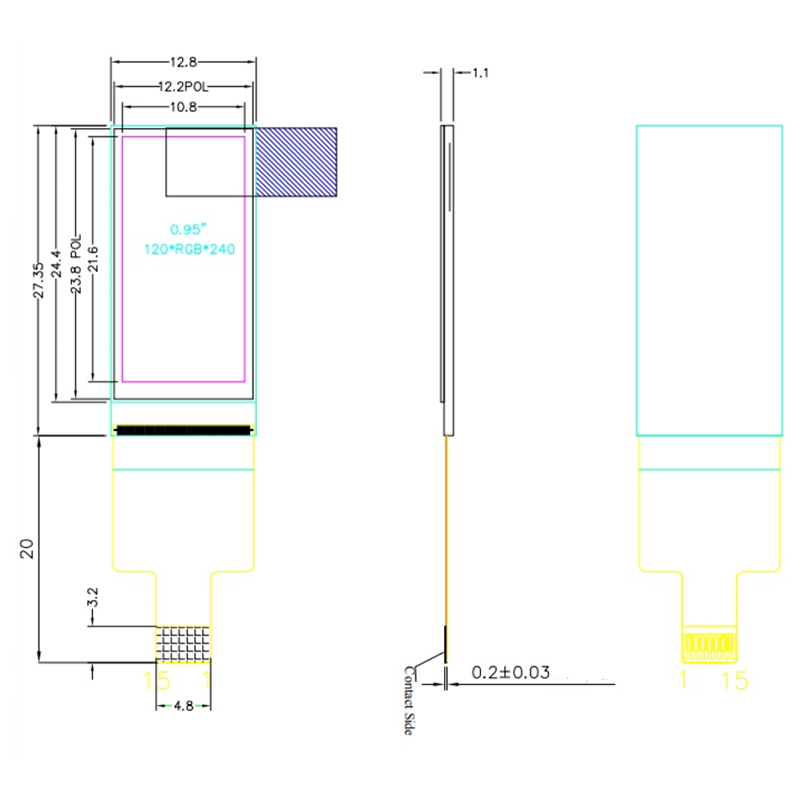

Structural Parameter Drawings for a 0.95-inch AMOLED Display

0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
