4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
Specifications
Model Number :
RHY043
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000
Price :
US $ 9.95
Payment Terms :
T/T
Delivery Time :
31-35 work days
Packaging Details :
15.6*11.8*5.5(cm)
Product name :
LCD Module
Outline Dimension :
105.42*67.07*4.55 mm
Display area :
95.04*53.86 mm
LCD size :
4.3"
Number of Pixel :
480 × 272 pixels
Brightness :
500 cd/m²
Interface :
RGB
Viewing Angle :
TN
Display mode :
TFT
Description
High Quality 4.3-inch 480*272 Capacitive Touchscreen with RGB Interface LCD Screen Touch Panel
Advanced 4.3-inch TFT LCD module with capacitive touch technology for superior human-machine interface applications.
Technical Specifications
LCD Size 4.3" TFT
Outline Dimension 105.42 * 67.07 * 4.55 mm
Display Area 95.04 * 53.86 mm
Resolution 480 * 272 pixels (WQVGA)
Brightness 500 cd/m²
Interface RGB
Viewing Angle TN
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Performance Highlights
  • High-sensitivity projected capacitive touch panel supporting multi-touch gestures
  • 24-bit RGB parallel interface for high-speed pixel control and smooth video playback
  • True-to-life color reproduction with up to 16.7 million colors
  • Operates with light contact and maintains clarity even with thin gloves
  • Wide operating temperature range (-20°C to +70°C) for demanding environments
  • Optional anti-glare and anti-fingerprint coatings for reduced reflections
  • Pre-applied high-bond 3M tape for secure, flush mounting without custom brackets
  • Dust-tight seal protection for internal electronics
  • Compact form factor with ultra-slim profile for space-constrained designs
Product Images

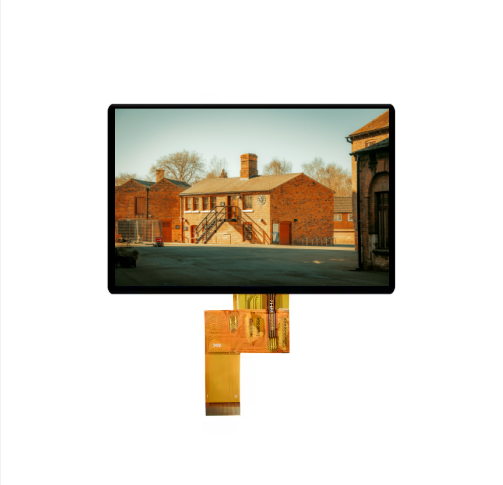

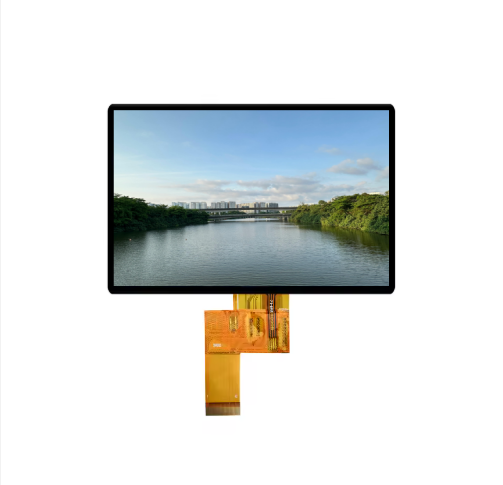

4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module 4.3-inch 480×272 RGB Interface TFT LCD Display with Capacitive Touchscreen Module
Applications
Ideal for portable industrial equipment, medical monitoring devices, outdoor smart terminals, automotive infotainment, factory automation, CNC machine interfaces, point-of-sale terminals, and handheld diagnostic equipment requiring energy-efficient operation with precise touch control and clear display performance.
