Specifications
Brand Name :
MJK
Model Number :
MJK-AD42ODW
Certification :
CE,Rohs
Place of Origin :
china
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
3-25days
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Shell material :
Stainless steel
Viewing angle :
178/178
GHZ :
1.8G 2.0G
Quality standard :
ISO9001
Working life :
Above 50000H
OS :
Windowsor Android
Description

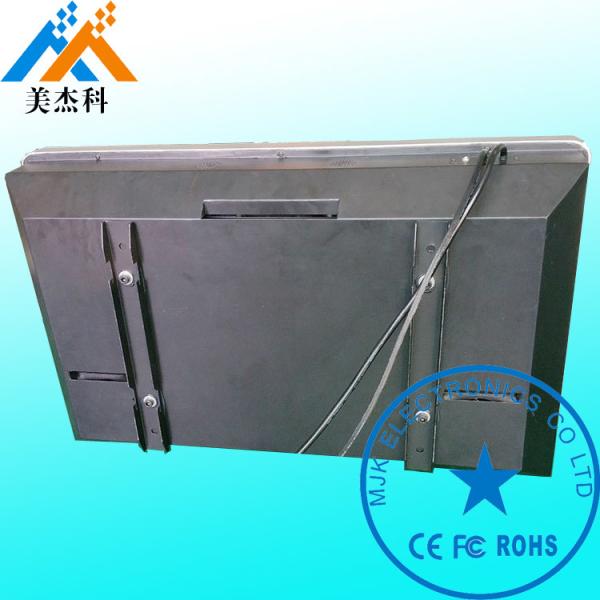

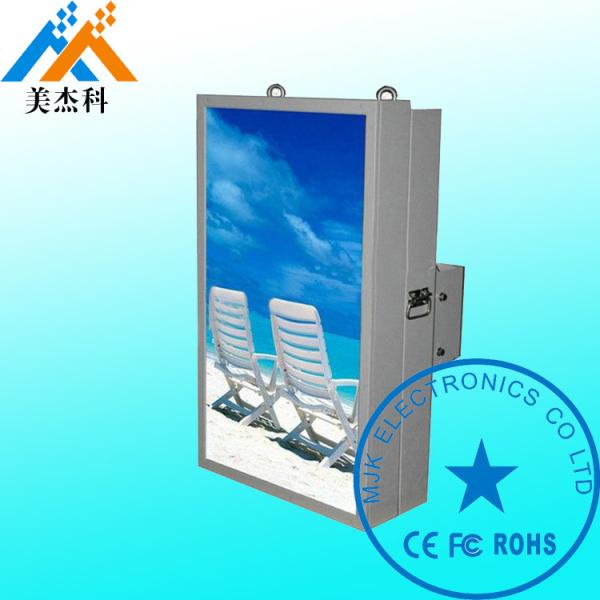

Supermarket Shopping Mall Outdoor Digital Signage Wall Mounted Stainless Steel shell

1. Quick Detail:

Place of Origin:SHENZHEN,GUANGDONG,CHINA(MAINLAND)

key words:outdoor digital signage

OS:Windows or Android

Sample order:support sample

Type:TFT LCD touch screen with 10points infrared

Application:Outdoor/indoor

Panel Size:65 inch(32"42" 46" 47"55" 65"70"75"82" 84"optional)

Brand Name:MJK

Response Time:6ms

Input Voltage:AC100~240V 50 /60 HZ

Display ratio:16:9

Shell:Galvanized steel sheet.

Max Resolution:1920 * 1080

Viewing Angle:178°/178°(H/V)

Pixel Pitch:0.4845(H)* 0.4845 )

Color:16.7M

Contrast Ratio:2000:1

Brightness:2000cd / m2


2. Description:

Advertising function

--Air condition cooling system, LCD can used in -35°C--+55°C environment temperature.
--Light sensor system, LCD will adjust the light Via environment light, and anti dazzling in dark.
--Touch screen, IR touch function. (optional)
--PC media player - All-in-One PC.
--No black screen under +55°C highest temperature.
--Anti- corrosion 8 years, Anti-Rust, Anti-Graffiti, Anti-Vandal, Anti-theft, Anti-salt mist.
--Modularization design, it is very convenient to maintain, and no need detach component.
--We provide 32-82inch free standing and wall mounted outdoor lcd

--We can customize the frame according to your requirements

Main Features

--Based on Android 4.4 system(up to 5.1), all the android application apk, software automatic restoration supported.

--Real time management and controlling, browser, breakpoint upload download, multi-mode upload supported.

--Updating programs (video, pictures. texts, PPT etc.) through the internet supported.

--Auto power on/off, electronic clock & date supported.

--Split Screen and fixed templated display setting supported.

--Setting IP address, working time and working day supported.

--1080P full HD programs display supported.

--WLAN & LAN long-distance setting play/sleep/reboot etc..function supported.

--Display contents cryptographic protection supported (optional).

--Cable network, wifi, 3G, 4G touch screen, motion senor and inner camera setting supported (optional).

Applications

1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3.Non-profit Organizations: Telecommunications, post offices, hospital, schools

4.Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

6.Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage

3. Specifications :

Panel Parameter Panel Size 55inch (16:9)
Active Area 1428.48*803.52mm
LCD Panel A grade LCD Panel
Max. Brightness 2000cd/m²
Max. Resolution 1920X1080
Contrast Ratio 2000:1
Panel Life 50000hours
Responsive Time 6ms
Dot Pitch 0.4845 mm x 0.4845 mm
Viewing Angle 178/178
Interface(I/O) Build in USB port(2.0), CF card and SD card slot
Power Supply AC 110V-240V, 50HZ/60HZ
Support Language Chinese, English,French, Spanish, Korea etc
Product Features Main Function Playing file automatically
With USB update
Support LAN,WIFI,3G,4G latest function.
Support video, pictures and music
Sercurity and password protection, anti-thief design
Set up time on/off inadvance
Support Remote controller
Support Safety lock system
Support Media Format MP4(AVI:DIVX/XVID),MPEG1(VCD:DAT/MPG1) ,MPG2(DVD:VOB/MPG2)MP3,JPG,Txt,Full HD Video output.
Temperature

Storage:-40Celsius degree to 5 Celsiucs degree

Working: -30Celsius degree to 55 Celsius degree

Fixing Method Free Standing/wall mounting
Color Shinning Silver(Optional for particularly color)
Housing Material 5mm thickness tempered glass as LCD panel protection layer
Applicable field Supermarket, Hotel,Mall center, Shop, Commercial buildings ,Bus station etc.
Packing information Packaging Size(mm) Subject to specific products
N.W. / G. W. (kg) 96kg/ 110kg
Packing Material Carton and Wooden package together


Competitive advantages

----Sunshine readable, high brightness 2000 nits, auto dimming.

----Waterproof

----Anti- thief, Anti dust.

----Application areas can be public bus station, out of shopping mall, store, etc.

----Certification: IP65 level

----Built-in air conditioner and fans optional.
