Specifications
Brand Name :
Genevision
Model Number :
MAD-220
Certification :
CCC,CE,ROHS,FCC
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
1000pcs per month
Delivery Time :
5 or 8 days
Packaging Details :
carton+wooden case
Keyword :
Payment kiosk terminal
Screen size :
21.5inch, 24inch, 27inch and 32inch
Web camera :
5.0mpx, can be inbuilt
Thermal printer :
80mm width thermal paper
Floor stand :
Option, height is adjustable
QR code scanner :
Support
NFC card reader :
Included
POS :
Support
Credit card :
On option
ID card reader :
On option
Description

22" To 32" Web Camera Smart Self Service Ordering Kiosk Payment Terminal with Android Windows System

Quick details of LCD Self service Multi Touch Screen Kiosk:

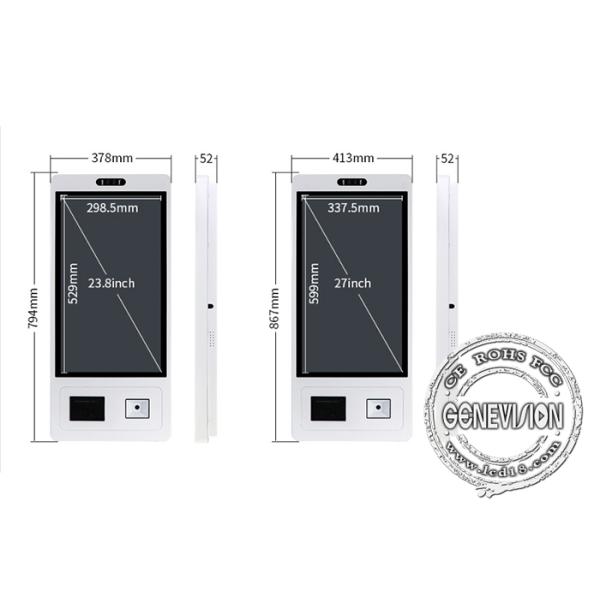

1. Various size screen on sale: 21.5inch, 24inch, 27inch and 32inch

2. 5.0MPX face recognition camera and web camera inbuilt

3. Smart capacitive touch screen included, 10 pionts

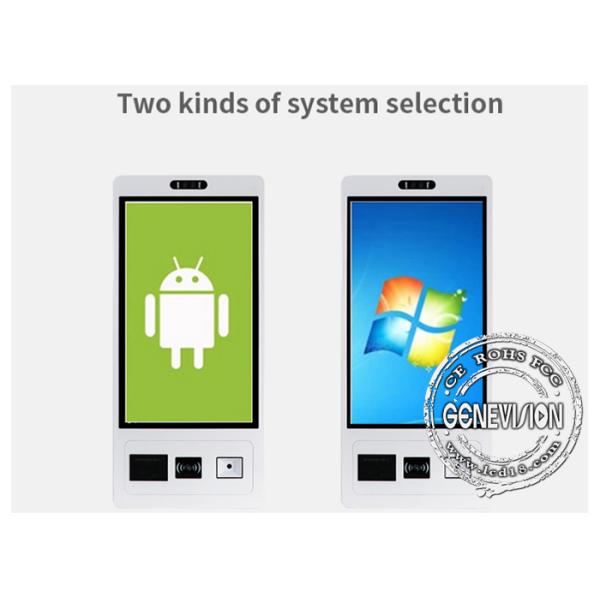

4. Android or Windows system on option

5. Receipt printer and thermal printer included

6. NFC card reader and QR code scanner 2 in 1 included.

7. POS should be from buyer, has space for it.

8. Credit card payment solution support.

9. Cash payment can be customized based on bulk order

All our Self Service Kiosk got CE Certificate.pdfand RCM Certificate.pdf certified, certificates as in the links, they can be downloaded by double clicking.

Specification of Fast Food Self Ordering Payment Kiosk:

Resolution 1920*1080
Panel BOE original panel, A level
Screen size 24inch
Display area 531*298mm
Brightness 350cd/m2
Number of Color 16.7M
Response time 8 (ms) approximately
Contrast 5000:1
View angle 178°/178°(H/V)
Life Time > 50000 (hours)
Power Supply AC 110V~240V,50/60HZ
Power Consumption 110W
Photo Formats JPEG ,BMP ,GIF ,PNG
Audio Formats MP3,WAV,WMA
Video Format MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V
Shell Material Aluminum+Metal
Thermal printer Yes, 8cm width of thermal paper
Bar code QR code scanner Inbuilt
Web camera Yes, inbuilt, 5.0mpx
Color White / black
QR code scanner Inbuilt
Touch Type 10 points PCAP touch screen
Pos machine NO, but on option
Normal Working Temperature 0°——50°
Normal Storage Temperature -20°——60°

CPU RK3288 Quadcore Cortex-A17 1.8GHz
Network connection LAN, WIFI
RAM DDR3 2G
Memory 8G
The operating system Android 7.1, support Google play
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1

CPU i3, i5, i7
Network connection LAN, WIFI
Memory DDR3 4G or 8G
SSD 128G or 256G
The operating system Beta Win10
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1


Description of Restaurant QR Code Scan Payment Machine:

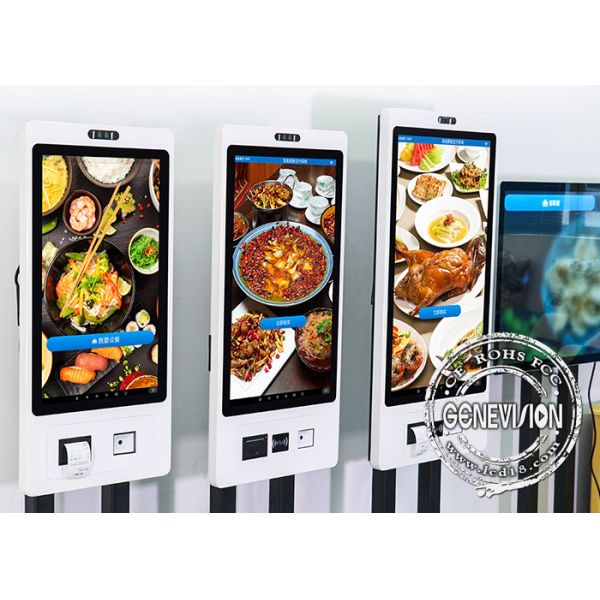

The intelligent ordering kiosk machine can be applied in restaurants, supermarkets, retail stores and other places to help enterprises reduce the labor intensity of waiters. At the same time, it can better arrange the purchase according to the daily dining data, so as to achieve the purpose of cost saving.

There are many advantages of self-service ordering machine. First of all, for businesses, self-service ordering machine has two powerful functions: Cashier and ordering, which brings greater convenience to catering managers in the work of cashier and ordering. Powerful self-service ordering function, customers only need to move their fingers to complete the operation of self ordering and submit it to the kitchen to prepare dishes. Convenient operation not only liberates the pressure of waiters who rush back and forth for ordering, but also saves more waiting time for customers and improves the experience of good customer volume. Next is the cash register function. The current self-service ordering machine integrates almost all the mainstream payment methods, no matter whether the customers are accustomed to using WeChat payment or Alipay payment, they can perfectly support, even if they use the most traditional UnionPay credit card, they also support the perfect solution to the embarrassment that they forget to bring cash when they pay and do not support online payment.

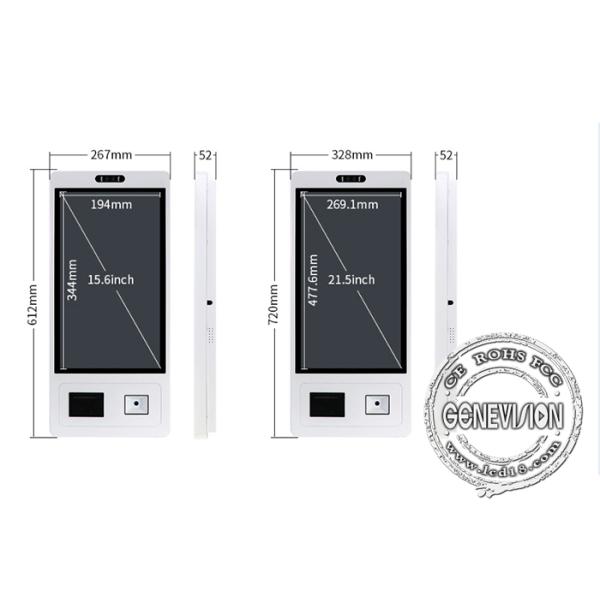

With 17 years production experience, we have the ablity to produce wall mount and floor standing self service payment machine from 15.6inch to 32inch or even 43inch. All can be with web camera, with the software to support, camera and monitoring and analyze what kind of customers are using it every day and collect all these data to business keeper and media company. Has receipt printer with 80mm width thermal paper roll, QR code scanner which also can scan bar code, besides, it has NFC card reader function, for most countries, people still perfer to pay by credit card, no problem, the bill payment machine has a space for POS machine, there are many POS has credit card function.

Also many customer would like to get a cash register payment machine, we can also support, customization, OEM and ODM projects are also welcome.

Application of Moible payment solultion self checkout bill payment kiosk:

This self service touch screen terminal can be widely used for retail store, restaurant, also this bill payment kiosk POS machine can be applied in hotel and supermarket, so customers can do self service checkout
