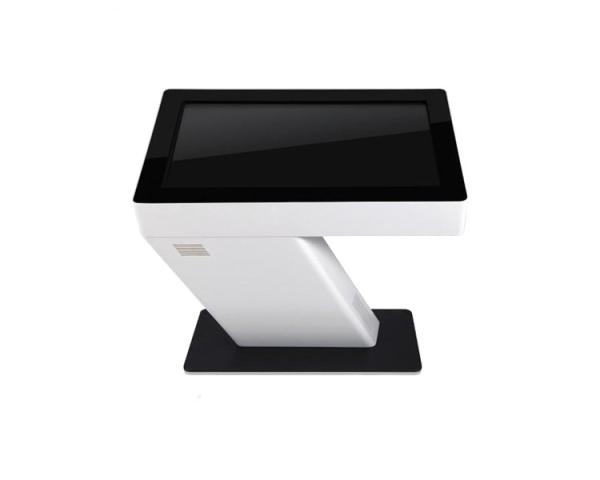

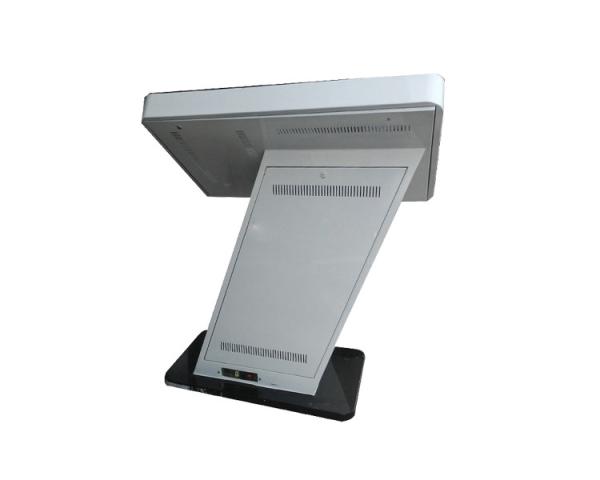

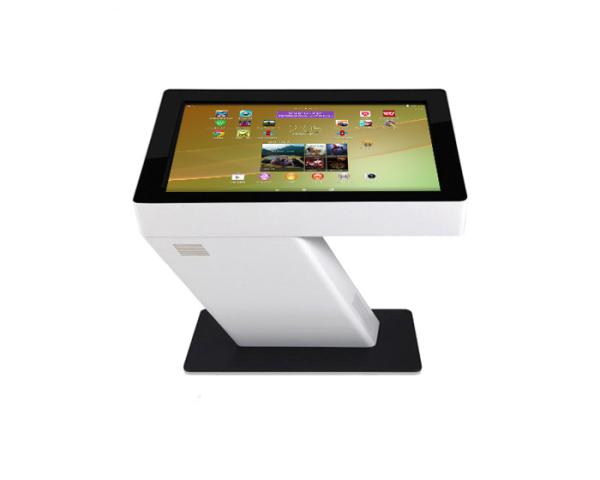

22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer
22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer
22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer
22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer
22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer
22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer
Specifications
Brand Name :
Genevision
Model Number :
MAD-220TZ
Certification :
CE/CCC
Place of Origin :
Shenzhen, China
MOQ :
1
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Material :
Metal
warranty :
one year
Brightness :
500cd/㎡
Input Voltage :
AC110-240V
Max Resolution :
1920*1080
Viewing Angle: :
89°/89°/89°/89°(Min)
Panel Type :
TFT
Description

22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer

1.Adopt original new A grade SAMSUNG/LG industrial LCD panel to ensure good display quality.
2.Support 7 days /24 hours continuous working for all years.
3.All items are according to CE,CCC,FCC, ROHS standard.

4,Support Full HD Video and picture.

Panel configuration

Panel size

32 Inch

Aspect Ratio

16:9

Active Area

693*387mm

Max. Resolution

1920*1080 or 1366*768

Dot Pitch

0.4215mm (H) x0.4215mm (W)

Color

16.7M

Brightness

500cd/m2

Contrast Ratio

1200:1

Responsive Time

5ms

Viewing Angle

89/89/89/89

OSD language

Chinese, English, Spanish, Russian, German, French, Arabic etc.

Power

AC 110V~240V, 50/60HZ

Operating environment

Operating temperature: 0°C-40°C

storage Temperature: -20°C-60°C
Humidity: 20%-80% relative humidity

Android Network Version, which can be updated by central software via network, touch screen is optional;
1.Adopt latest Android 4.2.2 Operation System which based on B/S(Browser/Server) construction / A20 solution Cortex-A7 / 1GB memory / 4GB DDR3 NAND FLASH / Free software will be offered. Or Adopt pc configuration.
2.Users install software in PC, then Connect LCD Advertising display to PC by setup IP address.
Then edit advertising contents in PC, transferr it to LCD advertising display via LAN ,Wifi or 3G network.
Network version which one man and a server can manage all LCD players updating task.

Android configuration option:

CPU

A20, dual-core

A31,quad-core

RAM

1GB (2GB,4GB is optional)

2GB (4GB is optional)

Memory

8GB

8GB

WIFI

Supported

Camera

Optional

PC configuration option:

CPU

Intel I3

Intel I5

Intel Celeron J1900

Hard disk

500GB

500GB

320GB

Memory

DDR3/4GB, 8GB is optional

DDR3/4GB, 8GB is optional

DDR3/2GB, 4GB,8GB is optional

WIFI

Supported

Camera

Optional

Touch screen option:

IR Touch

Capacitive Touch

Touch Foil

If you need dozens to hundreds of units, we recommend you Netwrok version, which is easy for management by remote software via network.

Stand Alone Version, which is simple and cheap. users copy contents into USB/SD card, put it into LCD advertising display slot.
it auto-play in loop when power on, but users need to update contents one by one.
If you just take several units for advertisingWe suggest standalone version , which is easy to operate and cheaper.

we can offer customized advertising displayer to meet your promotional needs.

22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer

22 inch LCD Touch Android Kiosk Infrared Screen Advertisement Displayer
