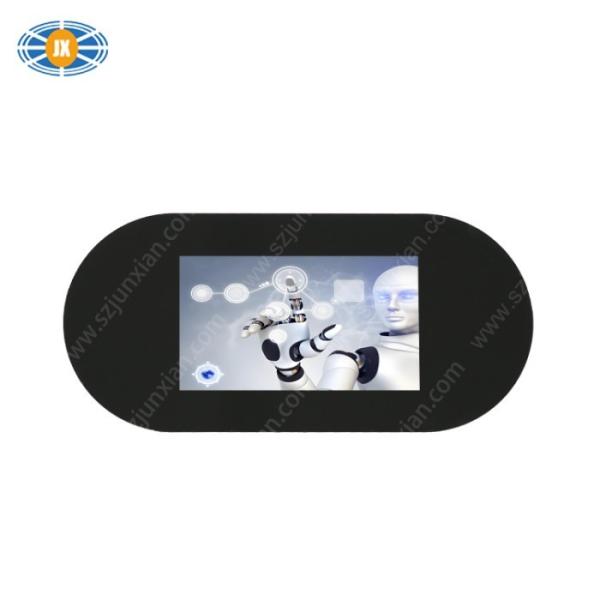

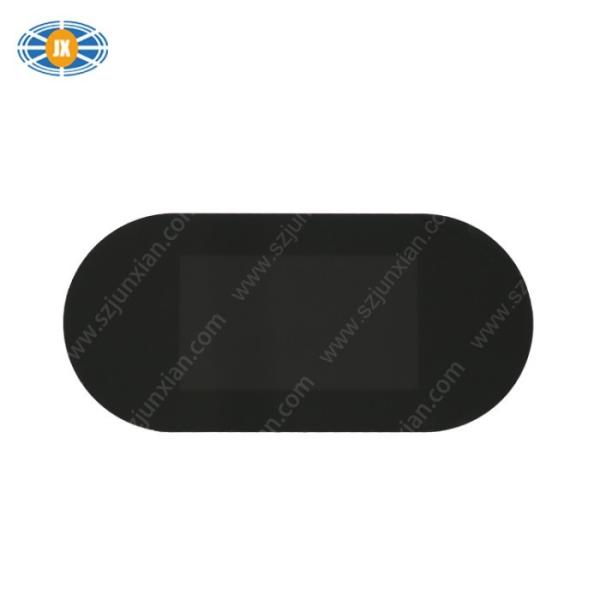

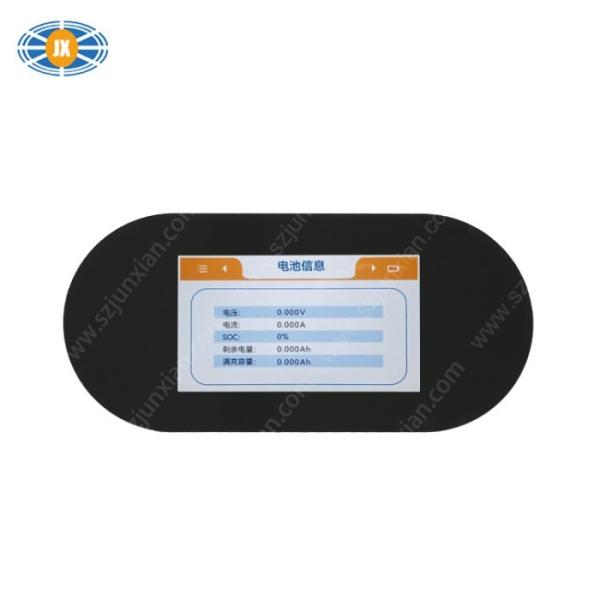

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480
Specifications
Brand Name :
Junxian or Customizable
Model Number :
JM-LH018-00
Certification :
ROHS,GB/T19001-2016/IS09001:2015
Place of Origin :
Shenzhen,China
MOQ :
5 sets
Price :
Negotiable
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
200000 pieces per month
Delivery Time :
1-4 weeks
Packaging Details :
Standard Exportation Package
Name :
Smart LCD Module
LCD Interface :
UART Serial Port
Resolution :
800×480 Pixels
LCD Size :
189.0mm × 89.0mm x 12.8mm
Visual Area :
95.04mm × 53.86mm
Control driver :
UI_Editor-II
Surface Luminance :
250cd/m2
Display Type :
IPS
Display Color :
65K(65536)colors
Backlight :
LED white light
LED Lifetime :
40,000 hours
Description

Custom & OEM 4.3-Inch Lcd IPS-TFT With 65K 800 X 480 Pixels Capacitive Touch LCD Screen Lcd Display

1.Product Key Features

Communication Protocol: Built-in Peicheng BMS display communication protocol V1.4, supporting UI customization for users.

IPS Technology: Maintains consistent color and contrast across all viewing angles.

Integrated Capacitive Touch: Supports precise multi-touch operations for intuitive control.

Outdoor Customization: Adjustable brightness (customizable) ensures readability under direct sunlight.RoHS Compliance

Meets international environmental protection standards.

Designed for 6BMS and industrial applications, this LCD combines high-performance display with integrated touch functionality, offering reliable operation and customizable brightness for both indoor and outdoor environments.

2. Main Specifications

Display Type: IPS-TFT with 65K (65,536) colors (16-bit, 5R6G5B).

Resolution: 800 x 480 pixels, ensuring clear visual effects.

Viewing Angle: 85°/85°/85°/85° (L/R/U/D), enabling full-view clear display.

Brightness: Standard brightness is 250nits, customizable as required for readability under outdoor sunlight.

Touch Technology: Integrated capacitive touch for sensitive user interaction.

Power Supply: 5V DC, typical operating current 300mA (at maximum brightness), 8.5mA in sleep mode.

Temperature Range: Operating temperature: -20°C to 70°C; Storage temperature: -30°C to 80°C.

Interface: UART serial port (TX/RX), 3.3V TTL mode (8N1), 115200bps baud rate.

3. Product technical parameters
Keywords: 4.3-inch TFT color LCD
Resolution: 800×480 Pixels
LCD Interface: UART serial port
Communication Protocol: PCBMS-DCP v1.4
LCD Size: 189.0 × 89.0 x 12.8mm
Visual Area: 95.04 × 53.86mm
Control driver: UI_Editor-II
Surface Luminance: 250cd/m2
Touch Screen: Capacitance touch(selectable)
Operating Temp: -20℃～＋70℃
Storage Temp: -30℃～＋80℃
Display Type: IPS
perspectives: 85/85/85/85(L/R/U/D)
Driving voltage: 5.0V
LED Lifetime: 40,000 Hours
Backlight: LED white light
Display Color: 65K(65536)colors
Certificate: GB/T19001-2016/IS09001:2015
Compliance: REACH & RoHS Compliant

4. Product in details:

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480

PS: This 4.3-inch smart LCD(800×480 Pixels) is available for order. we have different specifications parameters of the(800×480Pixels) LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.

5. Application fields

- Outdoor portable devices (e.g., handheld meters, GPS trackers)
- Industrial equipment requiring sunlight visibility
- Consumer electronics used in bright ambient light (e.g., outdoor signage, wearable devices)
- Medical or scientific instruments for temporary outdoor use

Why Choose JUNXian?

Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480

1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480

2. Custom LCD Displays & CTP-Integrated Modules

With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC desigh, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480

3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480

4. Certificates and Honors

We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.

250cd/m2 Smart LCD Module IPS TFT 4.3 Inch Capacitive Touch Screen 800x480

5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.

With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.

Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!

Please Note

All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
